Groupset
SRAM NX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

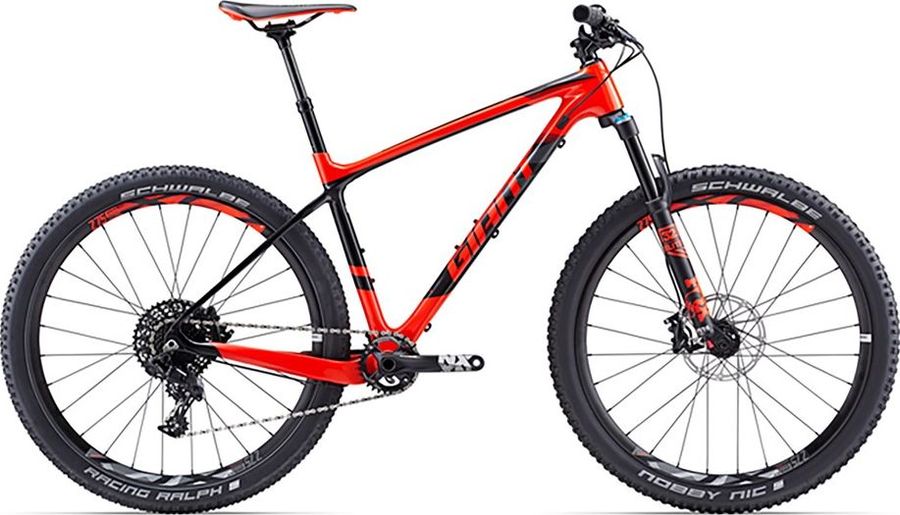

About the Giant XTC Advanced SX 2017
The Giant XTC Advanced SX 2017 is a Hardtail Trail Mountain Bike with a carbon frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Steam
|
Giant Connect
|
|---|---|
|
Saddle
|
Giant Contact Neutral
|
|
Seatpost
|
Tranz X YSP-11 Dropper Post w/ under bar remote, 27.2mm
|
|
Handlebar
|
Giant Connect Trail, 31.8mm
|
|
Brake lever
|
Shimano M605
|
|
Brakes
|
Shimano BR-M447
|
|
Crankset
|
SRAM NX, 30T
|
|---|---|
|
Shifter
|
SRAM NX
|
|
Bottom bracket
|
SRAM GXP, Press fit
|
|
Rear derailleur
|
SRAM NX
11s
322 g
|
|
|
|
|
Cassette
|
SRAM PG-1130
11s
|
|
11-28t:11,12,13,14,15,16,17,19,22,25,28 11-32t:11,12,13,14,15,17,19,22,25,28,32 11-36t:11,12,13,15,17,19,22,25,28,32,36 11-42t: 11,13,15,17,19,22,25,28,32,36,42 11-28t 11-32t 11-36t 11-42t |
|
|
Chain
|
KMC X11
|
|
Frame
|
Advanced-grade composite
|
|---|---|
|
Front suspension
|
Fox 32 SC Float Performance Elite
|
|
Rims
|
Giant XC-1
|
|---|---|
|
Tires
|
[F] Schwalbe Nobby Nic, 27.5x2.25, Performance, Folding [R] Schwalbe Racing Ralph, 27.5x2.25, Performance, Folding
|
|
Spokes
|
Sapim Race, 14/15g
|
|
Rear hub
|
Giant Performance Tracker Disc, 28h, [F] 15mm thru-axle, [R] 142x12mm
|
|
Front hub
|
Giant Performance Tracker Disc, 28h, [F] 15mm thru-axle, [R] 142x12mm
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
350,0
|
390,0
|
440,0
|
490,0
|
520,0
|
|
b
Seat tube angle
|
72,5º
|
72,5º
|
72,0º
|
72,0º
|
72,0º
|
|
c
Top tube length
|
559,0
|
579,0
|
599,0
|
619,0
|
644,0
|
|
d
Head tube length
|
95,0
|
95,0
|
100,0
|
110,0
|
120,0
|
|
e
Head tube angle
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
95,0
|
95,0
|
95,0
|
95,0
|
95,0
|
|
h
Wheelbase
|
1061,0
|
1086,0
|
1096,0
|
1117,0
|
1142,0
|
|
i
Chainstay length
|
431,0
|
431,0
|
431,0
|
431,0
|
431,0
|
|
j
Bottom bracket drop
|
43,0
|
43,0
|
43,0
|
43,0
|
43,0
|
|
k
Stack height
|
588,0
|
588,0
|
593,0
|
603,0
|
612,0
|
|
l
Reach
|
374,0
|
394,0
|
409,0
|
424,0
|
446,0
|
|
m
Standover height
|
705,0
|
727,0
|
747,0
|
780,0
|
804,0
|
|
x
Bottom bracket height
|
312,0
|
312,0
|
312,0
|
312,0
|
312,0
|
|
y
Front center
|
634,0
|
659,0
|
669,0
|
689,0
|
714,0
|
