Giant XTC SLR 29 1 2021

MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

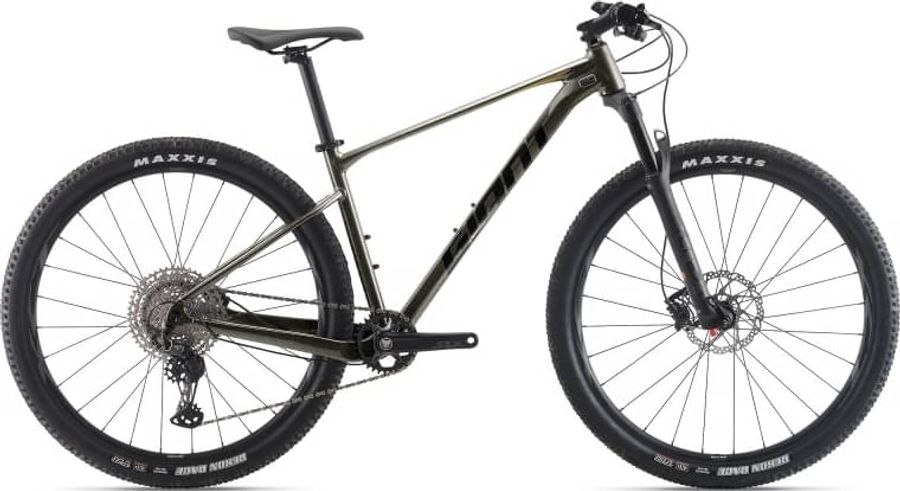

Giant XTC SLR 29 1 2021

About the Giant XTC SLR 29 1 2021

The Giant XTC SLR 29 1 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain. Its features include e-thru axle, hydraulic disc brakes, and remote lockout.

Features

The Giant XTC SLR 29 1 2021 has 3 features listed below.
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
Giant Contact
Saddle
Giant Sport
Seatpost
Giant Connect, 30.9
Handlebar
Giant Connect XC, 31.8
Brake lever
Shimano BR-MT501
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano SLX, 32t
Shifter
Shimano SLX
Bottom bracket
Shimano, press fit
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
KMC X12
Frameset
Frame
ALUXX SLR-Grade Aluminium
Front suspension
Giant Crest 34 RRL
Wheels
Rims
Giant XCT 29
Tires
Maxxis Recon Race 29x2.25, foldable, TLR, EXO, tubeless
Spokes
Shimano MT410 thru axle
Rear hub
Shimano MT410 thru axle
Front hub
Shimano MT410 thru axle

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
431,0
475,0
525,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
592,0
611,0
632,0
662,0
d
Head tube length
95,0
95,0
105,0
115,0
e
Head tube angle
69,5º
69,5º
70,0º
70,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
94,9
94,9
94,9
94,9
h
Wheelbase
1114,0
1133,0
1149,0
1180,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
58,0
58,0
58,0
58,0
k
Stack height
604,0
604,0
615,0
625,0
l
Reach
418,0
437,0
455,0
482,0
m
Standover height
724,0
754,0
782,0
815,0
x
Bottom bracket height
316,0
316,0
316,0
316,0
y
Front center
683,0
702,0
718,0
749,0
