Giant Yukon 1 2019

MTB Fatbike
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Rigid

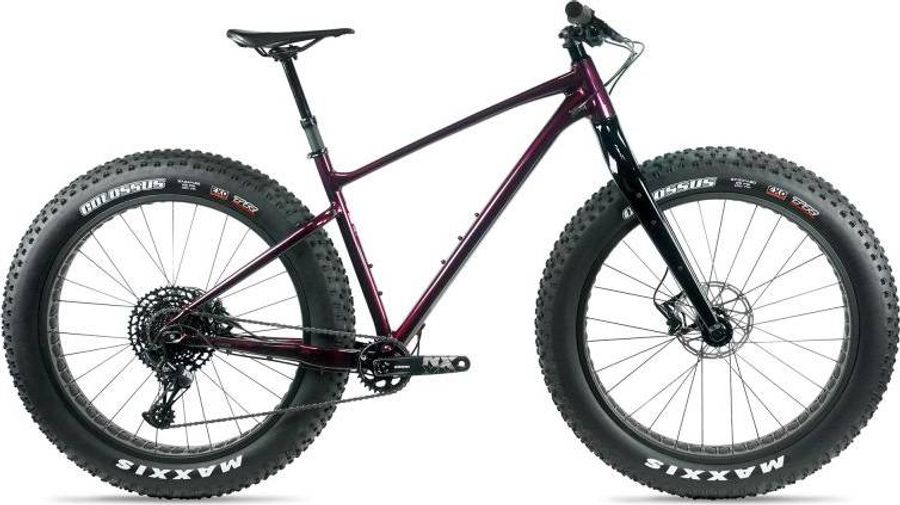

Giant Yukon 1 2019

About the Giant Yukon 1 2019

The Giant Yukon 1 2019 is a Rigid Fatbike Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Giant Yukon 1 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Giant Connect, 8 Degree
Saddle
Giant Contact (Neutral)
Seatpost
Giant Contact Switch, Dropper post (100mm S/125mm M/150mm L&XL) with 1x Remote, 30.9mm
Handlebar
Giant Connect Trail, 780mm x 31.8mm
Brake lever
SRAM Level T
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
NX EAGLE 12spd FAT5 DUB with 30t Q-Factor 206
Shifter
SRAM NX Eagle 1x12 Speed
Bottom bracket
SRAM DUB FOR 121mm
Chain
SRAM NX
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Front suspension
Advanced-Grade Composite, alloy OverDrive steerer, 15x150 (fits up to 5.0 tire), Low-rider rack mounts & extra water bottle mounts. Rack & Fender eyelets
Frame
ALUXX SL-Grade Aluminum ( OLD 197mm, Tire Max. 27.5”x4.5”) Horizontal Adjustable Dropout System
Wheels
Rims
Giant FB27.5, 86mm inner width, Tubeless compatible, AV & PV ready
Tires
Maxxis Colossus 27.5x4.5, TR, EXO, 120 TPI (includes AV inner tubes)
Spokes
14-15-14G STEEL
Rear hub
▶F: Giant Tracker 15mm x 150mm, Sealed 2 Bearing, 12mm Thru-Axle bolt R : Giant Tracker 12mm x 197mm, Thru-Axle
Front hub
▶F: Giant Tracker 15mm x 150mm, Sealed 2 Bearing, 12mm Thru-Axle bolt R : Giant Tracker 12mm x 197mm, Thru-Axle

Geometry

Size SM MD LG XL
a
Seat tube length
381,0
432,0
483,0
533,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
583,0
603,0
623,0
643,0
d
Head tube length
100,0
115,0
130,0
150,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
60,0
60,0
60,0
60,0
g
Trail
90,1
90,1
90,1
90,1
h
Wheelbase
1126,6
1147,8
1169,1
1190,7
i
Chainstay length
458,0
458,0
458,0
458,0
j
Bottom bracket drop
75,0
75,0
75,0
75,0
k
Stack height
619,5
633,5
647,4
666,0
l
Reach
393,0
408,7
424,5
438,8
m
Standover height
717,0
733,0
770,0
809,0
x
Bottom bracket height
280,0
280,0
280,0
280,0
y
Front center
679,0
700,0
721,0
743,0
