Giant Yukon 1 2020

MTB Fatbike
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Rigid

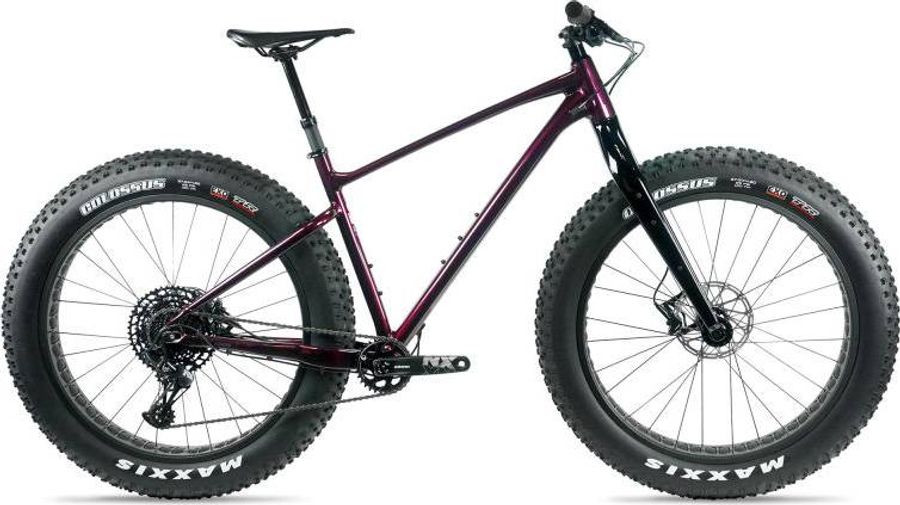

Giant Yukon 1 2020

About the Giant Yukon 1 2020

The Giant Yukon 1 2020 is a Rigid Fatbike Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain. Its features include dropper seatpost e hydraulic disc brakes.

Features

The Giant Yukon 1 2020 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Giant Contact
Saddle
Giant Contact (neutral)
Seatpost
Giant Contact Switch dropper with remote, 30.9
Handlebar
Giant Connect Trail, 780x31.8
Brake lever
SRAM Level T
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
SRAM NX Eagle DUB FAT 5, 30t
Shifter
SRAM NX Eagle
Bottom bracket
SRAM DUB, press fit
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM NX Eagle
Frameset
Front suspension
Rigid composite with alloy steerer, 15x150, with low rider rack mounts
Frame
ALUXX SL-Grade Aluminum with horizontal dropouts
Wheels
Rims
alloy, 27.5", 90mm
Tires
Maxxis Colossus 27.5x4.5, foldable, TR,
Spokes
stainless, 14g
Rear hub
[F] Giant 15x150 sealed bearing [R] Giant 12x197 sealed bearing
Front hub
[F] Giant 15x150 sealed bearing [R] Giant 12x197 sealed bearing

Geometry

Size SM MD LG XL
a
Seat tube length
381,0
432,0
483,0
533,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
583,0
603,0
623,0
643,0
d
Head tube length
100,0
115,0
130,0
150,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
60,0
60,0
60,0
60,0
g
Trail
90,1
90,1
90,1
90,1
h
Wheelbase
1126,6
1147,8
1169,1
1190,7
i
Chainstay length
458,0
458,0
458,0
458,0
j
Bottom bracket drop
75,0
75,0
75,0
75,0
k
Stack height
619,5
633,5
647,4
666,0
l
Reach
393,0
408,7
424,5
438,8
m
Standover height
717,0
733,0
770,0
809,0
x
Bottom bracket height
280,0
280,0
280,0
280,0
y
Front center
679,0
700,0
721,0
743,0
