BikeWise

GT Force Carbon Expert 2019

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

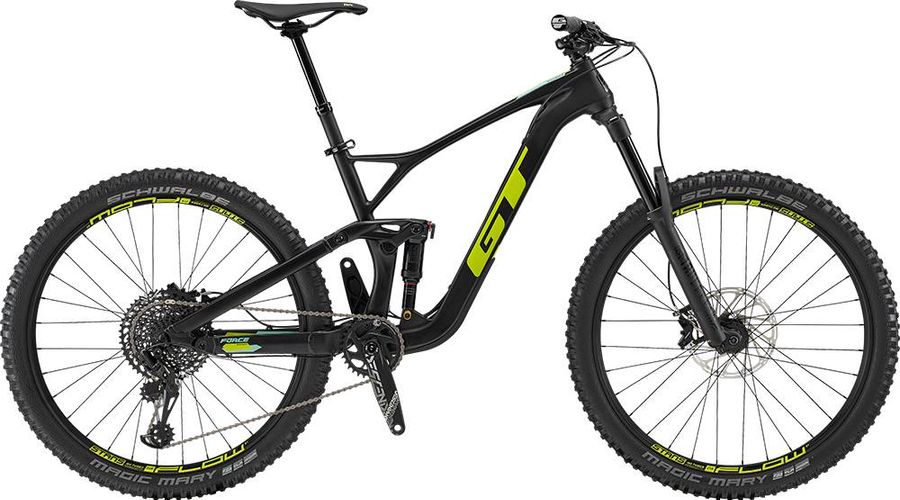

GT Force Carbon Expert 2019

About the GT Force Carbon Expert 2019

The GT Force Carbon Expert 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The GT Force Carbon Expert 2019 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
GT Statement2 Double Lock-on Grips
Pedals
None included
Components
Steam
All Terra, 1-1/8" Threadless, 3D Forged, 31.8mm, 7° Rise, 60mm
Saddle
Fabric Scoop Shallow Sport
Headset
FSA Orbit C-40-ACB
Seatpost
KS Lev Si dropper, Southpaw Lever, 31.6mm, 100mm (S) 125mm (M) 150mm (L-XL)
Handlebar
All Terra Alloy Riser, Double-butted 6061, 15mm rise, 780mm
Brake lever
SRAM Guide R hydro disc
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Chain
SRAM Eagle 12spd
Crankset
Truvativ Descendant 7K, Dub, 32T
Shifter
SRAM GX Eagle, 1x12
Bottom bracket
SRAM DUB, 73mm BSA
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM XG-1295 Eagle Cassette 12s 357 g
Cog finish cassete
Black
Cog sizes
10-50t:10,12,14,16,18,21,24,28,32,36,42,50
Gearing
10-50t
Model
CS-XG-1295-A1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
357
Frameset
Frame
All New Force Carbon, 150mm rear wheel travel, Carbon front/ Alloy rear frame, Boost 148 rear spacing, ISCG05 mounts, lockR pivots, Metric Trunnion shock mounts, coil shock compatible
Rear suspension
RockShox Deluxe RL
Body eyelet
Bearing, Standard
Compression tune
L, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
430
Model
RS-DLX-RL-B1
Name
Deluxe RL
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Front suspension
RockShox Pike RC Solo Air 1835 g
Color
Gloss Black
fork offset
51mm
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RC-A2
Name
Pike RC
Spring
Solo Air
Travel (mm)
150mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
29" B/27.5"+
Wheels
Rims
Stan's NoTubes Flow S1, 32h, tubeless ready
Tires
Schwalbe Magic Mary Performance, 27.5 x 2.35", tubeless ready
Spokes
Stainless Steel, 14g
Rear hub
All Terra Alloy Sealed, Boost front and rear
Front hub
All Terra Alloy Sealed 15x110 front, 12x148 rear

Geometry

Size XS High XS Low SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
392,0
392,0
400,0
400,0
430,0
430,0
480,0
480,0
520,0
520,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
75,5º
75,5º
75,5º
75,5º
75,5º
75,5º
c
Top tube length
535,0
535,0
560,0
560,0
587,0
587,0
613,0
613,0
640,0
640,0
d
Head tube length
102,0
102,0
102,0
102,0
110,0
110,0
118,0
118,0
126,0
126,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
65,0º
65,0º
65,0º
65,0º
65,0º
65,0º
f
Rake
-
-
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
-
-
h
Wheelbase
1131,0
1131,0
1156,0
1156,0
1184,0
1184,0
1213,0
1213,0
1241,0
1241,0
i
Chainstay length
427,0
427,0
427,0
427,0
427,0
427,0
427,0
427,0
427,0
427,0
j
Bottom bracket drop
16,0
16,0
16,0
16,0
16,0
16,0
16,0
16,0
16,0
16,0
k
Stack height
583,0
583,0
583,0
583,0
591,0
591,0
598,0
598,0
605,0
605,0
l
Reach
382,0
382,0
407,0
407,0
432,0
432,0
457,0
457,0
482,0
482,0
m
Standover height
725,0
725,0
732,4
732,4
742,3
742,3
752,2
752,2
787,1
787,1
x
Bottom bracket height
339,0
339,0
339,0
339,0
339,0
339,0
339,0
339,0
339,0
339,0
y
Front center
-
-
-
-
-
-
-
-
-
-
