GT Force Comp 2019

MTB Enduro
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

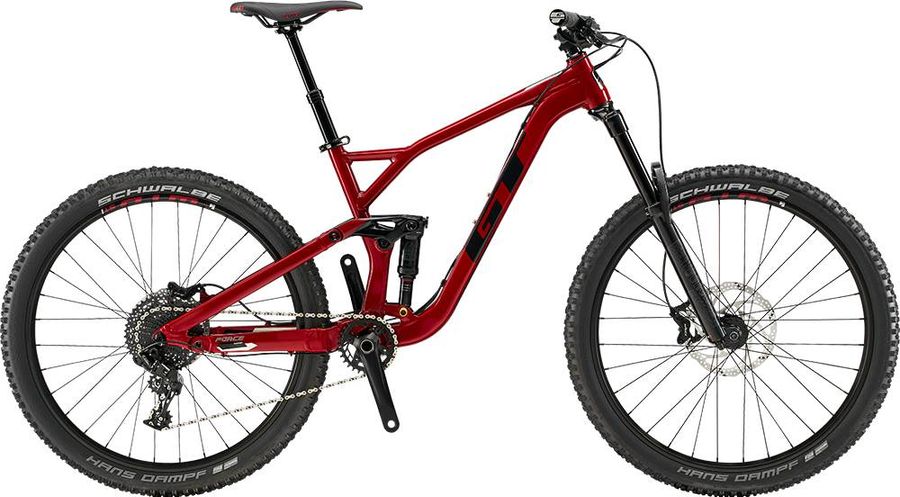

GT Force Comp 2019

About the GT Force Comp 2019

The GT Force Comp 2019 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The GT Force Comp 2019 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
GT Statement2 Double Lock-on Grips
Pedals
None included
Components
Steam
All Terra, 1-1/8" Threadless, 3D Forged, 31.8mm, 7° Rise, 60mm
Saddle
WTB Silverado Sport
Headset
FSA Orbit C-40-ACB
Seatpost
All Terra dropper, internal routing, 31.6mm, 80mm (XS) 100mm (S) 130mm (M-XL)
Handlebar
All Terra Alloy Riser, Double-butted 6061, 15mm rise, 780mm
Brake lever
TRP Slate 4 hydro disc
Brakes
TRP Slate T4
Drivetrain
Crankset
All Terra Charm, 30T
Shifter
SRAM NX, 1x11
Bottom bracket
Sealed BSA
Cassette
Sunrace MX8 11-42T 11-speed
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Chain
KMC X11
Frameset
Frame
All New Force Alloy, 150mm rear wheel travel, alloy front and rear frame, Boost 148 rear spacing, ISCG05 mounts, LockR pivots, Metric Trunnion shock mounts, coil shock compatible
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe R
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L3, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-R-B1
Name
Deluxe R
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
WTB ST i29 TCS 2.0, 32h, tubeless ready
Tires
Schwalbe Hans Dampf Performance 27.5 x 2.35" Addix Speed Grip compound, tubeless ready
Spokes
Stainless Steel, 14g
Rear hub
All Terra Alloy Disc, Boost front and rear
Front hub
All Terra Alloy Disc 15x110 front, 12x148 rear

Geometry

Size XS High XS Low SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
392,0
392,0
400,0
400,0
430,0
430,0
480,0
480,0
520,0
520,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
75,5º
75,5º
75,5º
75,5º
75,5º
75,5º
c
Top tube length
535,0
535,0
560,0
560,0
587,0
587,0
613,0
613,0
640,0
640,0
d
Head tube length
102,0
102,0
102,0
102,0
110,0
110,0
118,0
118,0
126,0
126,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
65,0º
65,0º
65,0º
65,0º
65,0º
65,0º
f
Rake
-
-
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
-
-
h
Wheelbase
1131,0
1131,0
1156,0
1156,0
1184,0
1184,0
1213,0
1213,0
1241,0
1241,0
i
Chainstay length
427,0
427,0
427,0
427,0
427,0
427,0
427,0
427,0
427,0
427,0
j
Bottom bracket drop
16,0
16,0
16,0
16,0
16,0
16,0
16,0
16,0
16,0
16,0
k
Stack height
583,0
583,0
583,0
583,0
591,0
591,0
598,0
598,0
605,0
605,0
l
Reach
382,0
382,0
407,0
407,0
432,0
432,0
457,0
457,0
482,0
482,0
m
Standover height
725,0
725,0
732,4
732,4
742,3
742,3
752,2
752,2
787,1
787,1
x
Bottom bracket height
339,0
339,0
339,0
339,0
339,0
339,0
339,0
339,0
339,0
339,0
y
Front center
-
-
-
-
-
-
-
-
-
-
