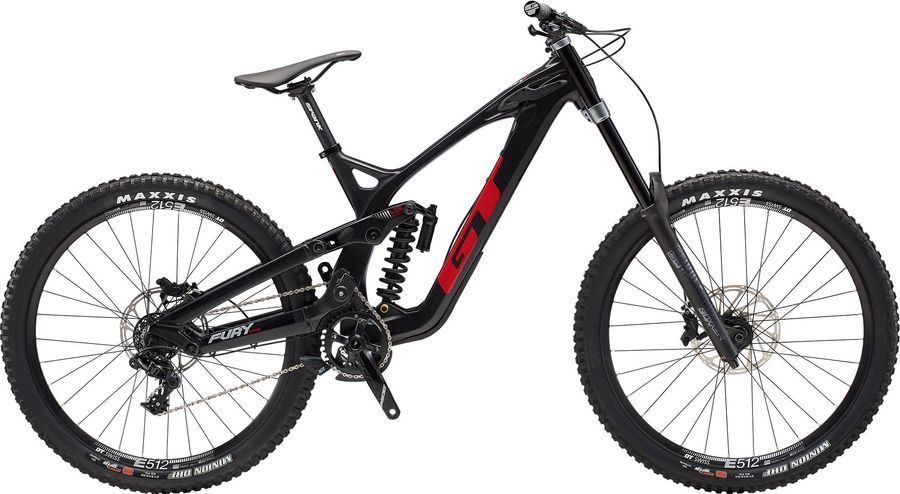

GT Fury Carbon Pro 27.5 2019

MTB Downhill
Groupset
SRAM GX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
190mm
Rear travel
200mm
GT Fury Carbon Pro 27.5 2019

About the GT Fury Carbon Pro 27.5 2019

The GT Fury Carbon Pro 27.5 2019 is a Full suspension Downhill Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 7 gears (1x7). Its features include boost 110 , boost 148, and e-thru axle.

Features

The GT Fury Carbon Pro 27.5 2019 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
GT Statement2 Double Lock-on Grips
Pedals
Not Included
Components
Steam
SPANK Spike 25/30 DM Stem, 31.8mm Clamp
Saddle
Fabric Scoop Shallow Elite, cro-mo rails
Headset
GT Fury External/internal Headset, 1.5" to 1-1/8" Reducer, Alloy Cups w/ Sealed Bearings
Seatpost
SPANK 2-bolt, 31.6mm
Handlebar
SPANK Spoon 785, 20mm Rise, 31.8mm Clamp
Brake lever
SRAM Code R hydro disc
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
Truvativ Descendant DH, 36T
Shifter
SRAM GX DH Trigger, Right Side Only
Chain guide
Custom e*thirteen
Bottom bracket
SRAM GXP 83mm
Rear derailleur
SRAM GX DH 7s
Cable pull ratio
Exact actuation
Cage
Medium
Cage material
Aluminum
Color
Black
Max tooth
28
Model
RD-GX-1DH-A3
Name
GX DH 1x X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
7s
Cassette
SRAM PG-720 7s 224 g
Cog finish cassete
Black
Cog sizes
11-25t:11,13,15,17,19,22,25
Gearing
11-25t
Model
CS-PG-720-A1
Name
PG-720 Cassette
Speed
7s
Technology cassete
PG
Weight
224
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
LTS Downhill Design, New for 19, FOC Carbon 27.5" Frame, 200mm Travel w/Forged Linkage, Pivots, 1.5" Head Tube, and 12 x 148mm Thru Axle Dropouts
Front suspension
RockShox Boxxer RC Coil
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm, 48mm
Maximum rotor size
210mm
Minimum rotor size
160mm, 200mm
Model
FS-BXR-RC-B2
Name
BoXXer RC
Spring
Coil
Travel (mm)
200mm
Upper tube type
35mm tapered aluminum
Wheel size
26", 27.5"
Rear suspension
RockShox Super Deluxe Coil RCT
Body eyelet
Bearing, Standard, Trunnion
Compression tune
L, L1, M
Eye to eye stroke
185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLC-RCT-A1
Name
Super Deluxe Coil RCT
Rebound tune
L, M
Shaft eyelet
Bearing, Standard
Wheels
Rims
DT Swiss E 512, 32h
Tires
Maxxis Minion DHF 27.5" x 2.5", 3C Compound, DH Casing
Spokes
DT Swiss Alpine II, 2.3/2.0 Stainless
Rear hub
Front: All Terra Alloy, sealed bearing, 6-bolt disc, 20x110mm thru axle, Rear: All Terra Alloy, 6-bolt disc, Boost 12x148mm
Front hub
All Terra Alloy Sealed Bearing 6-bolt disc 20x110mm thru axle Boost DH front, All Terra Alloy 6-bolt Disc 12x148mm rear

Geometry

Size SM MD
a
Seat tube length
420,0
420,0
b
Seat tube angle
74,5º
74,5º
c
Top tube length
560,0
598,0
d
Head tube length
105,0
105,0
e
Head tube angle
62,0º
62,0º
f
Rake
-
-
g
Trail
-
-
h
Wheelbase
1225,4
1263,4
i
Chainstay length
437,5
437,5
j
Bottom bracket drop
-93,0
-93,0
k
Stack height
618,7
618,7
l
Reach
410,0
448,0
m
Standover height
703,0
723,0
x
Bottom bracket height
448,0
448,0
y
Front center
-
-
