GT Sensor Alloy Comp 2019

MTB Trail
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
130mm

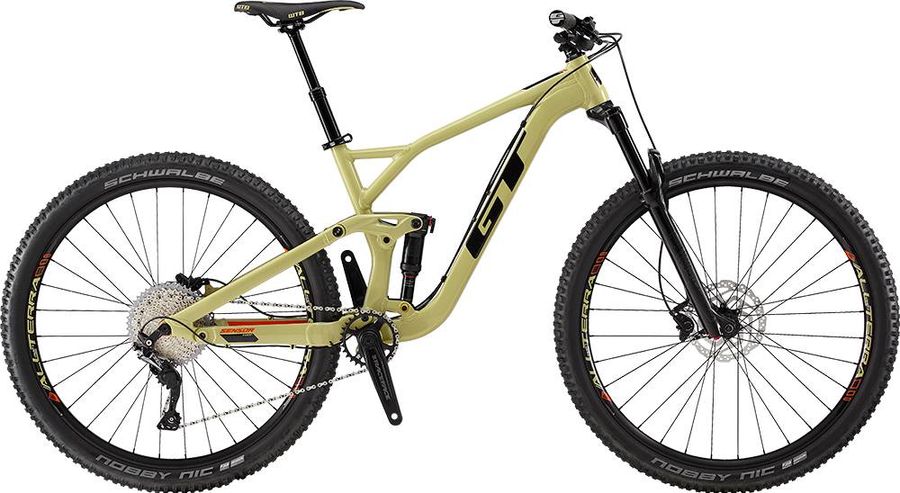

GT Sensor Alloy Comp 2019

About the GT Sensor Alloy Comp 2019

The GT Sensor Alloy Comp 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The GT Sensor Alloy Comp 2019 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
GT Statement2 Single Lock-on Grips
Pedals
GT Slim Line Flat Pedal
Components
Steam
All Terra 3D Forged Alloy, 31.8, 7°
Saddle
WTB Silverado Sport
Headset
FSA Orbit C-40-B
Seatpost
All Terra Dropper Post w/ 1x Lever, 31.6, 100mm (XS-S) 120mm (M-L) 130mm (XL)
Handlebar
All Terra Alloy Riser, Double-butted 6061, 15mm rise, 760mm
Brake lever
Shimano MT400 hydro disc
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Race Face Ride Cinch, 30T
Shifter
Shimano SLX, 1x11
Bottom bracket
Race Face, 73mm BSA
Cassette
Sunrace MX8 11-46T 11-speed
Rear derailleur
Shimano SLX RD-M7000-11-SGS
Chain
KMC X11
Frameset
Frame
All New Sensor Alloy, 130mm rear wheel travel, alloy front and rear frame, Boost 148 rear spacing, ISCG05 mounts, sealed bearing LockR pivots, Metric Trunnion shock mounts, coil shock compatible
Rear suspension
RockShox Deluxe R
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L3, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-R-B1
Name
Deluxe R
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Front suspension
RockShox Sektor RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-SKTR-RL-C1
Name
Sektor RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
Alex MD27, 32h, tubeless ready
Tires
Schwalbe Nobby Nic Performance 29 x 2.35", tubeless ready
Spokes
Stainless Steel, 14g
Rear hub
All Terra Tall Flange Alloy Disc, Centerlock, Boost front and rear
Front hub
All Terra Tall Flange Alloy disc 15x110 front, 12x148 rear, Centerlock

Geometry

Size XS High XS Low SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
392,0
392,0
400,0
400,0
430,0
430,0
480,0
480,0
520,0
520,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
76,0º
76,0º
76,0º
76,0º
76,0º
76,0º
c
Top tube length
534,0
534,0
559,0
559,0
585,0
585,0
612,0
612,0
639,0
639,0
d
Head tube length
102,0
102,0
102,0
102,0
110,0
110,0
118,0
118,0
126,0
126,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
65,5º
65,5º
65,5º
65,5º
65,5º
65,5º
f
Rake
-
-
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
-
-
h
Wheelbase
1133,0
1133,0
1158,0
1158,0
1186,0
1186,0
1214,0
1214,0
1243,0
1243,0
i
Chainstay length
427,0
427,0
427,0
427,0
427,0
427,0
427,0
427,0
427,0
427,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
25,0
25,0
25,0
25,0
25,0
25,0
k
Stack height
579,0
579,0
579,0
579,0
587,0
587,0
594,0
594,0
601,0
601,0
l
Reach
387,0
387,0
412,0
412,0
437,0
437,0
462,0
462,0
487,0
487,0
m
Standover height
734,5
734,5
742,0
742,0
752,0
752,0
762,0
762,0
797,0
797,0
x
Bottom bracket height
349,0
349,0
349,0
349,0
349,0
349,0
349,0
349,0
349,0
349,0
y
Front center
-
-
-
-
-
-
-
-
-
-
