Groupset
SRAM NX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
130mm

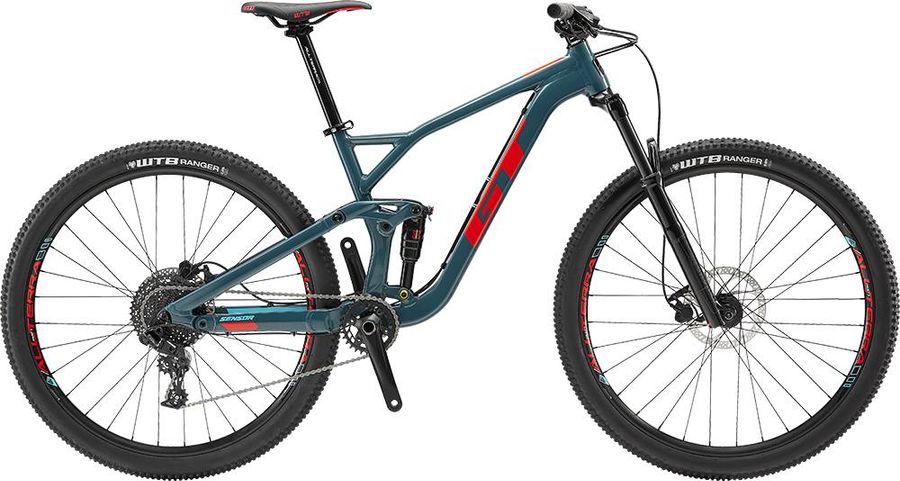

About the GT Sensor Alloy Sport 2019
The GT Sensor Alloy Sport 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
GT Statement2 Single Lock-on Grips
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
All Terra 3D Forged Alloy, 4-Bolt W/ CNC Face Plate, 31.8
|
|---|---|
|
Saddle
|
WTB Silverado Sport
|
|
Headset
|
FSA Orbit C-40-B
|
|
Seatpost
|
All Terra 2-bolt, 31.6 x 400mm
|
|
Handlebar
|
All Terra Alloy Riser, Double-butted 6061, 15mm rise, 780mm
|
|
Brake lever
|
Tektro M285 hydro disc
|
|
Brakes
|
Tektro HD-M285
|
|
Crankset
|
All Terra Charm, 30T
|
|---|---|
|
Shifter
|
SRAM NX, 1x11
|
|
Bottom bracket
|
Sealed, 73mm BSA
|
|
Cassette
|
Sunrace MX8 11-42T 11-speed
|
|
Rear derailleur
|
SRAM NX
11s
322 g
|
|
|
|
|
Chain
|
SRAM PC-1110
259 g
|
|
|
|
|
Frame
|
All New Sensor Alloy, 130mm rear wheel travel, alloy front and rear frame, Boost 148 rear spacing, ISCG05 mounts, sealed bearing LockR pivots, Metric Trunnion shock mounts, coil shock compatible
|
|---|---|
|
Front suspension
|
RockShox Recon RL
Solo Air
|
|
|
|
|
Rear suspension
|
X-Fusion O2 Pro RL
|
|
Rims
|
Alex MD27, 32h, tubeless ready
|
|---|---|
|
Tires
|
WTB Ranger Comp, 29 x 2.25", DNA Compound
|
|
Spokes
|
Stainless Steel, 14g
|
|
Rear hub
|
All Terra Alloy Disc, Boost front and rear, HG driver
|
|
Front hub
|
All Terra Alloy Disc 15x110 front, 12x148 rear w/ HG driver
|
Geometry
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
392,0
|
392,0
|
400,0
|
400,0
|
430,0
|
430,0
|
480,0
|
480,0
|
520,0
|
520,0
|
|
b
Seat tube angle
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
|
c
Top tube length
|
534,0
|
534,0
|
559,0
|
559,0
|
585,0
|
585,0
|
612,0
|
612,0
|
639,0
|
639,0
|
|
d
Head tube length
|
102,0
|
102,0
|
102,0
|
102,0
|
110,0
|
110,0
|
118,0
|
118,0
|
126,0
|
126,0
|
|
e
Head tube angle
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1133,0
|
1133,0
|
1158,0
|
1158,0
|
1186,0
|
1186,0
|
1214,0
|
1214,0
|
1243,0
|
1243,0
|
|
i
Chainstay length
|
427,0
|
427,0
|
427,0
|
427,0
|
427,0
|
427,0
|
427,0
|
427,0
|
427,0
|
427,0
|
|
j
Bottom bracket drop
|
25,0
|
25,0
|
25,0
|
25,0
|
25,0
|
25,0
|
25,0
|
25,0
|
25,0
|
25,0
|
|
k
Stack height
|
579,0
|
579,0
|
579,0
|
579,0
|
587,0
|
587,0
|
594,0
|
594,0
|
601,0
|
601,0
|
|
l
Reach
|
387,0
|
387,0
|
412,0
|
412,0
|
437,0
|
437,0
|
462,0
|
462,0
|
487,0
|
487,0
|
|
m
Standover height
|
734,5
|
734,5
|
742,0
|
742,0
|
752,0
|
752,0
|
762,0
|
762,0
|
797,0
|
797,0
|
|
x
Bottom bracket height
|
349,0
|
349,0
|
349,0
|
349,0
|
349,0
|
349,0
|
349,0
|
349,0
|
349,0
|
349,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
