GT Sensor Carbon Elite 2020

MTB Trail

Groupset

SRAM NX Eagle

Frame material

Carbon

Wheel size

29"

Suspension type

Full suspension

Front travel

140mm

Rear travel

130mm

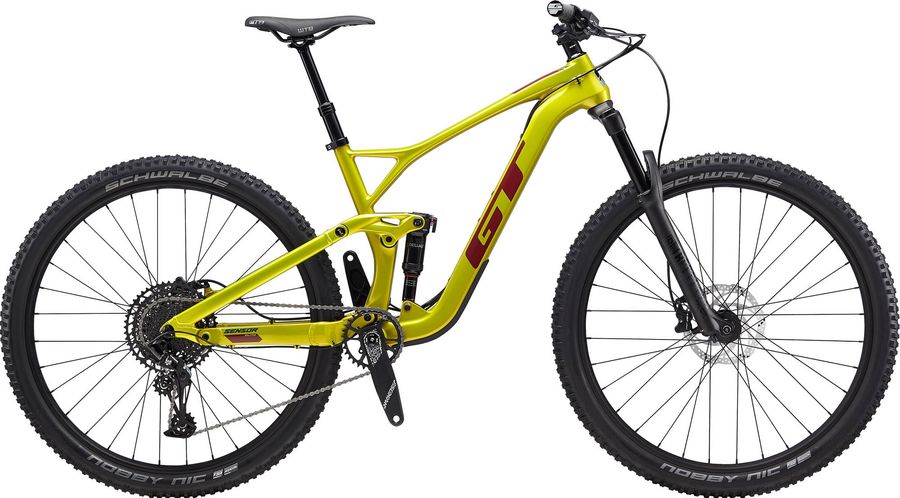

About the GT Sensor Carbon Elite 2020

The GT Sensor Carbon Elite 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The GT Sensor Carbon Elite 2020 has 7 features listed below.

Dropper seatpost More info

Boost 110 More info

Boost 148 More info

E-THRU AXLE More info

Hydraulic disc brakes More info

Tapered head tube More info

Tubeless ready More info

Specifications

Acessories
Grip	GT Statement2 Double Lock-on Grips
Pedals	Not Included

Components
Steam	GT Alloy Stem, 31.8mm Clamp, 45mm Length
Saddle	WTB Silverado Sport, steel rails
Headset	FSA NO.42, Semi Integrated, Sealed Bearing, Tapered
Seatpost	TranzX Dropper, 31.6, Internal Routing, 120mm (S,M), 150mm (L,XL)
Handlebar	GT Alloy riser bar, 15mm rise, 780mm width
Brake lever	TRP G-Spec Trail S hydro disc
Brakes	TRP G-Spec

Drivetrain
Crankset	Truvativ Descendent 6K, Dub, 32t, 170mm (S-L), 175mm (XL)
Shifter	SRAM Eagle, 12-speed
Bottom bracket	SRAM DUB BSA
Chain	SRAM NX Eagle 252 g
Chain connector PowerLock Chain length links 126 links Color inner link Grey Color outer link Grey Compat speed 12s-Eagle Inner link finish Polished Model CN-EAGL-NX-A1 Name NX Eagle Chain Outer link finish Polished Pin variant Solid Pin Weight based on 114 links Weight 252
Rear derailleur	SRAM NX Eagle 12s 339 g
Cable pull ratio X-actuation Cage Long Cage material Steel Color Black Max tooth 50 Model RD-NX-1-B1 Name NX Eagle Rear Derailleur Pulley bearings material Steel Speed 12s Weight 339
Cassette	SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete Black Cog sizes 11-50t:11,13,15,17,19,22,25,28,32,36,42,50 Gearing 11-50t Model CS-PG-1230-A1 Name PG-1230 Eagle Cassette Speed 12s Technology cassete PG Weight 615

Frameset
Frame	Sensor Carbon 29” Frame, 130mm Travel, BSA 73mm, LockR Pivots, Tapered Head Tube, Boost 12x148 Thru-Axle, 185x50mm Trunnion Shock Mount, ISCG05
Front suspension	RockShox 35 Gold RL DebonAir
Color Diffusion Black, Gloss Black Damper type Motion Control fork offset 37mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29") Max tire width (mm) 81 Maximum rotor size 220mm Minimum rotor size 180mm Model FS-35G-RL-A1 Name 35 Gold RL Spring DebonAir Travel (mm) 100mm, 120mm, 130mm, 140mm, 150mm, 160mm Upper tube type 35mm straight wall aluminum Wheel size 27.5", 29"
Rear suspension	RockShox Deluxe Select+ 340 g
Body eyelet No Bushing, Standard Compression tune H, L, L1, LC, M Damper type RL, RT Eye to eye stroke 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65 Lockout force 320, 380, 430 Model RS-DLX-SELP-B2 Name Deluxe Select+ Rebound tune H, L, M Shaft eyelet No Bushing, Standard, Trunnion Weight based on 210x50, 2 tokens, MM tune, standard/standard Weight 340

Wheels
Rims	WTB ST i29 TCS, 32h, tubeless ready
Tires	Schwalbe Nobby Nic Peformance, 29 x 2.35", Addix Compound, tubeless ready Schwalbe Nobby Nic Peformance, 29 x 2.35", Addix Compound, tubeless ready
Spokes	Stainless Steel, 14g
Rear hub	Formula 12x148 w/ HG driver 12x148
Front hub	Formula 15x110
