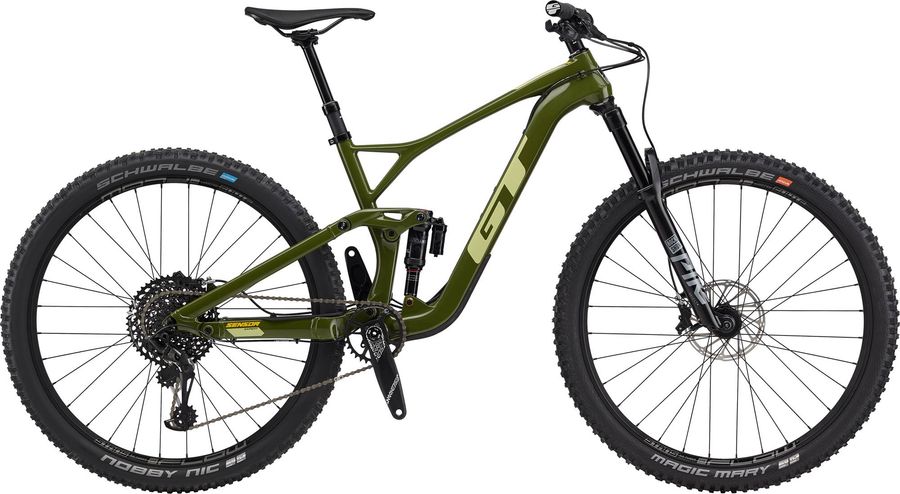

GT Sensor Carbon Expert 2020

MTB Trail

Groupset

SRAM GX Eagle

Frame material

Carbon

Wheel size

29"

Suspension type

Full suspension

Front travel

140mm

Rear travel

130mm

About the GT Sensor Carbon Expert 2020

The GT Sensor Carbon Expert 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The GT Sensor Carbon Expert 2020 has 7 features listed below.

Dropper seatpost More info

Boost 110 More info

Boost 148 More info

E-THRU AXLE More info

Hydraulic disc brakes More info

Tapered head tube More info

Tubeless ready More info

Specifications

Acessories
Grip	GT Statement2 Double Lock-on Grips
Pedals	Not Included

Components
Steam	GT Alloy Stem, 31.8mm Clamp, 45mm Length
Saddle	Fabric Scoop Shallow Sport, steel rails
Headset	FSA NO.42, Semi Integrated, Sealed Bearing, Tapered
Seatpost	GT Dropkick Dropper Post, 31.6, Internal Routing, 125mm (S, M), 150mm (L, XL)
Handlebar	GT Alloy riser bar, 15mm rise, 780mm width
Brake lever	SRAM Guide RSC G2
Brakes	SRAM G2 RSC Hydraulic 248 g
Application MTB Blade material Aluminum - Stamped Bracket disk brake Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P Brake type Hydraulic Color Diffusion Black Model DB-G2-RSC-A1 Name G2 RSC Orientation Front, Rear Pad type disc Steel-backed metal sintered, Steel-backed organic Weight based on Direct Mount 800mm Hose, no clamp/mounting hardware Weight 248

Drivetrain
Crankset	Truvativ Descendent 6K, Dub, 32t, 170mm (S-L), 175mm (XL)
Shifter	SRAM NX Eagle, 12-speed
Bottom bracket	SRAM DUB BSA
Chain	SRAM NX Eagle 252 g
Chain connector PowerLock Chain length links 126 links Color inner link Grey Color outer link Grey Compat speed 12s-Eagle Inner link finish Polished Model CN-EAGL-NX-A1 Name NX Eagle Chain Outer link finish Polished Pin variant Solid Pin Weight based on 114 links Weight 252
Rear derailleur	SRAM GX Eagle 12s
Cable pull ratio X-actuation Cage Long Cage material Aluminum Color Lunar Max tooth 52 Model RD-GX-1-B2 Name GX Eagle Rear Derailleur Pulley bearings material Steel Speed 12s
Cassette	SRAM XG-1295 Eagle Cassette 12s 357 g
Cog finish cassete Black Cog sizes 10-50t:10,12,14,16,18,21,24,28,32,36,42,50 Gearing 10-50t Model CS-XG-1295-A1 Name XG-1295 Eagle Cassette Speed 12s Technology cassete XG Weight 357

Frameset
Frame	Sensor Carbon 29” Frame, 130mm Travel, BSA 73mm, LockR Pivots, Tapered Head Tube, Boost 12x148 Thru-Axle, 185x50mm Trunnion Shock Mount, ISCG05
Rear suspension	RockShox Deluxe Select+ 340 g
Body eyelet No Bushing, Standard Compression tune H, L, L1, LC, M Damper type RL, RT Eye to eye stroke 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65 Lockout force 320, 380, 430 Model RS-DLX-SELP-B2 Name Deluxe Select+ Rebound tune H, L, M Shaft eyelet No Bushing, Standard, Trunnion Weight based on 210x50, 2 tokens, MM tune, standard/standard Weight 340
Front suspension	RockShox Pike Select+ DebonAir 1832 g
Color Diffusion Black, Gloss Black Damper type Charger 2.1 RC fork offset 37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29") Max tire width (mm) 81 Maximum rotor size 220mm Minimum rotor size 180mm Model FS-PIKE-SELP-B3 Name Pike Select+ Spring DebonAir Travel (mm) 120mm, 130mm, 140mm, 150mm, 160mm Upper tube type 35mm tapered wall aluminum Weight based on 27.5" BOOST, 120mm, Maxle Stealth Weight 1832 Wheel size 27.5", 29"

Wheels
Rims	Stan's NoTubes Flow S1, 32h, tubeless ready
Tires	Schwalbe Magic Mary Evolution, 29 x 2.35", SnakeSkin, Addix Soft Compound, tubeless ready Schwalbe Nobby Nic Evolution, 29 x 2.35", SnakeSkin, Addix Speedgrip Compound, tubeless ready
Spokes	Stainless Steel, 14g
Rear hub	Formula 12x148
Front hub	Formula 15x110
