BikeWise

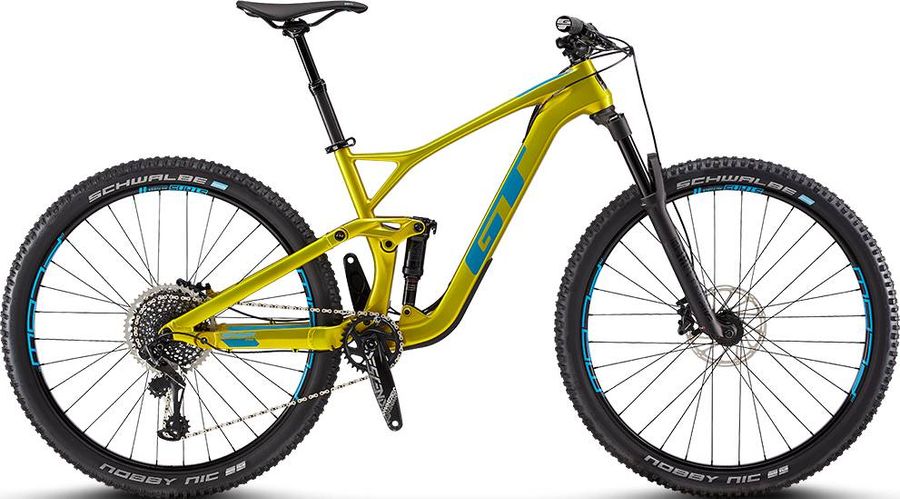

GT Sensor Carbon Pro 2019

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
130mm
GT Sensor Carbon Pro 2019

About the GT Sensor Carbon Pro 2019

The GT Sensor Carbon Pro 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The GT Sensor Carbon Pro 2019 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
New GT Statement Single Lock-on Grips
Pedals
None included
Components
Steam
Race Face Turbine R, CNC Alloy, 35mm clamp
Saddle
Fabric Scoop Shallow Sport
Headset
FSA Orbit C-40-ACB
Seatpost
KS LEV Ci Carbon dropper, Southpaw remote, 31.6, 100mm (S) 125mm (M), 150mm (L/XL)
Handlebar
Race Face Next Carbon, 35mm clamp, 20mm rise, 8° sweep, 5° rise, 800mm
Brake lever
SRAM Level TL hydro disc
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Crankset
Truvativ Descendant 7K, Dub, 32T
Shifter
SRAM GX Eagle, 1x12
Bottom bracket
SRAM Dub, 73mm BSA
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1295 X01 Eagle
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
All New Sensor Carbon, 130mm rear wheel travel, carbon front/alloy rear frame, Boost 148 rear spacing, ISCG05 mounts, sealed bearing LockR pivots, Metric Trunnion shock mounts, coil shock compatible
Rear suspension
RockShox Deluxe RT3
Body eyelet
Bearing, No Bushing, Off-Center, Standard
Compression tune
L, L3, L4, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380
Model
RS-DLX-RT3-B1
Name
Deluxe RT3
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Front suspension
RockShox Pike RCT3 Dual Position Air, Solo Air 1835 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RCT3-A2
Name
Pike RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Wheels
Rims
Stan's NoTubes Flow MK3, 32h, tubeless ready
Tires
Schwalbe Nobby Nic Performance 29 x 2.35" Addix Speedgrip compound, tubeless ready
Spokes
Stainless Steel, 14g
Rear hub
All Terra Alloy Disc, Boost front and rear
Front hub
All Terra Alloy Disc 15x110 front, 12x148 rear

Geometry

Size XS High XS Low SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
392,0
392,0
400,0
400,0
430,0
430,0
480,0
480,0
520,0
520,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
76,0º
76,0º
76,0º
76,0º
76,0º
76,0º
c
Top tube length
534,0
534,0
559,0
559,0
585,0
585,0
612,0
612,0
639,0
639,0
d
Head tube length
102,0
102,0
102,0
102,0
110,0
110,0
118,0
118,0
126,0
126,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
65,5º
65,5º
65,5º
65,5º
65,5º
65,5º
f
Rake
-
-
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
-
-
h
Wheelbase
1133,0
1133,0
1158,0
1158,0
1186,0
1186,0
1214,0
1214,0
1243,0
1243,0
i
Chainstay length
427,0
427,0
427,0
427,0
427,0
427,0
427,0
427,0
427,0
427,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
25,0
25,0
25,0
25,0
25,0
25,0
k
Stack height
579,0
579,0
579,0
579,0
587,0
587,0
594,0
594,0
601,0
601,0
l
Reach
387,0
387,0
412,0
412,0
437,0
437,0
462,0
462,0
487,0
487,0
m
Standover height
734,5
734,5
742,0
742,0
752,0
752,0
762,0
762,0
797,0
797,0
x
Bottom bracket height
349,0
349,0
349,0
349,0
349,0
349,0
349,0
349,0
349,0
349,0
y
Front center
-
-
-
-
-
-
-
-
-
-
