GT Sensor Elite 2018

MTB Trail
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
130mm
GT Sensor Elite 2018

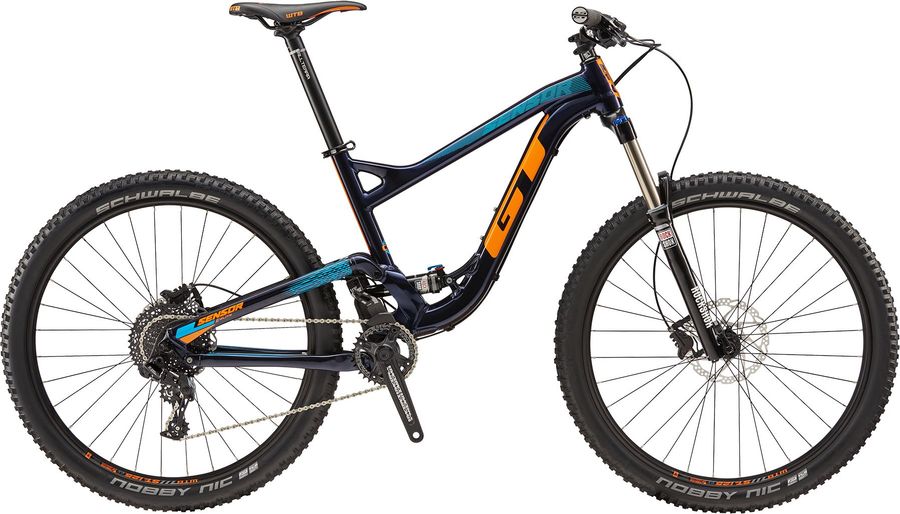

About the GT Sensor Elite 2018

The GT Sensor Elite 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include e-thru axle e hydraulic disc brakes.

Features

The GT Sensor Elite 2018 has 2 features listed below.
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
GT Statement Single Lock-on Grips
Components
Steam
Race Face Ride, 1-1/8" Threadless, 6? Rise, 31.8mm Clamp, 60mm
Saddle
WTB Silverado Sport
Headset
FSA Orbit C-40-ACB
Seatpost
All Terra 2-bolt, 34.9x400mm
Handlebar
All Terra AL6061 DB, 760mm, 15 Rise
Brake lever
Shimano BL-M425
Brakes
Shimano Acera BR-M425
Drivetrain
Crankset
Race Face Ride 32T
Shifter
SRAM NX 1x11 Trigger, Right Side Only
Chain guide
e*thirteen TRSR HD
Bottom bracket
Race Face
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Chain
KMC X11
Cassette
Sunrace 11-speed
Frameset
Frame
6069 Hydroformed Aluminum Frame, 130mm AOS Suspension System 1 1/8?-1 1/2? Integrated Head Tube, and 135mm QR Dropouts
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
RockShox Monarch RL 215 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
430
Model
RS-MNR-RL-C2
Name
Monarch RL
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
WTB STP i25, Tubeless Compatible, 32H
Tires
(F) Schwalbe Nobby Nic Performance, Folding TL-Ready, 27.5x2.35" (R) 27.5x2.25"
Rear hub
Front: All Terra Tall Flange Alloy, 15mm x 100mm:, Rear: Shimano M6000, 135mm quick release skewer
Front hub
(F) All Terra Tall Flange Alloy Centerlock Disc, Sealed Bearing, 15x100mm Thru Axle, (R) Shimano M6000 Centerlock

Geometry

Size XS SM MD LG XL
a
Seat tube length
390,0
406,0
426,0
476,0
527,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
563,0
579,0
608,0
636,0
665,0
d
Head tube length
92,0
92,0
108,0
124,0
140,0
e
Head tube angle
68,0º
68,5º
68,5º
68,5º
68,5º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1101,0
1112,0
1142,0
1172,0
1202,0
i
Chainstay length
447,0
447,0
447,0
447,0
447,0
j
Bottom bracket drop
20,0
20,0
20,0
20,0
20,0
k
Stack height
603,0
581,0
601,0
616,0
631,0
l
Reach
385,0
400,0
422,0
446,0
470,0
m
Standover height
738,0
744,0
731,0
758,0
800,0
x
Bottom bracket height
335,0
335,0
335,0
335,0
335,0
y
Front center
-
-
-
-
-
