Haro Double Peak 27.5 Plus Comp 2019

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

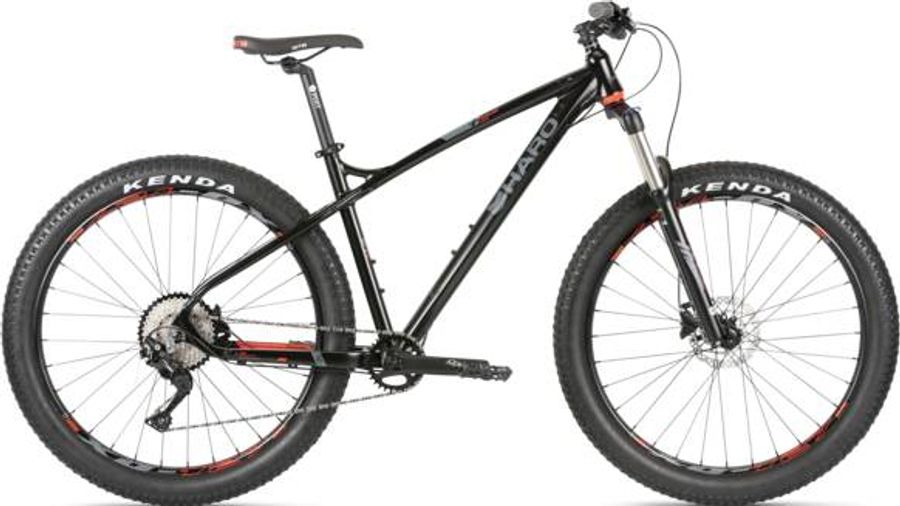

Haro Double Peak 27.5 Plus Comp 2019

About the Haro Double Peak 27.5 Plus Comp 2019

The Haro Double Peak 27.5 Plus Comp 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include hydraulic disc brakes.

Features

The Haro Double Peak 27.5 Plus Comp 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
Wellgo nylon body w/ steel cage
Components
Steam
Pivit forged stem, 31.8mm
Saddle
WTB Volt Sport w/ color accents
Headset
FSA No. 10P, 1-1/8" Threadless for 50mm OD headtube; w/ 15mm top cover
Seatpost
Pivit alloy micro adjust 31.6mm
Handlebar
Pivit alloy, 20mm riser bar 31.8mm, 700 to 720mm width
Brake lever
Shimano BL-MT201
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
New FSA Comet Modular MegaExo, Boost, 30T Megatooth Crmo Chainring
Shifter
Shimano Deore SL-M6000 1x10-spd
Bottom bracket
FSA sealed cartridge
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-HG500-10
Frameset
Front suspension
HL Vaxa 868 HL/O 27.5" Plus, 120mm travel w/ hydraulic lockout, 15mm thru-Axle
Frame
2018 Haro Double Peak Comp 27.5" Plus 6000 series alloy, w/ smooth welding, specific chainstay design, Internal housing routing & Chainstay disc brake mount
Wheels
Rims
WTB 32mm wide, Disc alloy double wall
Tires
Kenda Havoc 27.5x2.6"
Rear hub
New Shimano MT-400 / MT-200 alloy, Boost Thru-axle front, Boost rear, Center Lock Disc, cassette 32h
Front hub
New Shimano MT-400 / MT-200 alloy, Boost Thru-axle front, Boost rear, Center Lock Disc, cassette 32h

Geometry

Size XS SM MD LG
a
Seat tube length
368,0
406,0
457,0
508,0
b
Seat tube angle
72,5º
72,5º
72,5º
72,5º
c
Top tube length
565,0
590,0
619,0
630,0
d
Head tube length
100,0
100,0
100,0
110,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
88,0
88,0
87,0
88,0
h
Wheelbase
1078,0
1102,0
1132,0
1143,0
i
Chainstay length
447,0
447,0
447,0
447,0
j
Bottom bracket drop
55,0
55,0
55,0
55,0
k
Stack height
632,0
634,0
634,0
643,0
l
Reach
367,0
391,0
420,0
428,0
m
Standover height
754,0
757,0
758,0
780,0
x
Bottom bracket height
300,0
300,0
300,0
300,0
y
Front center
637,0
661,0
691,0
702,0
