Haro Double Peak 27.5 Plus Trail 2019

MTB Cross Country
Groupset
Shimano Acera
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm

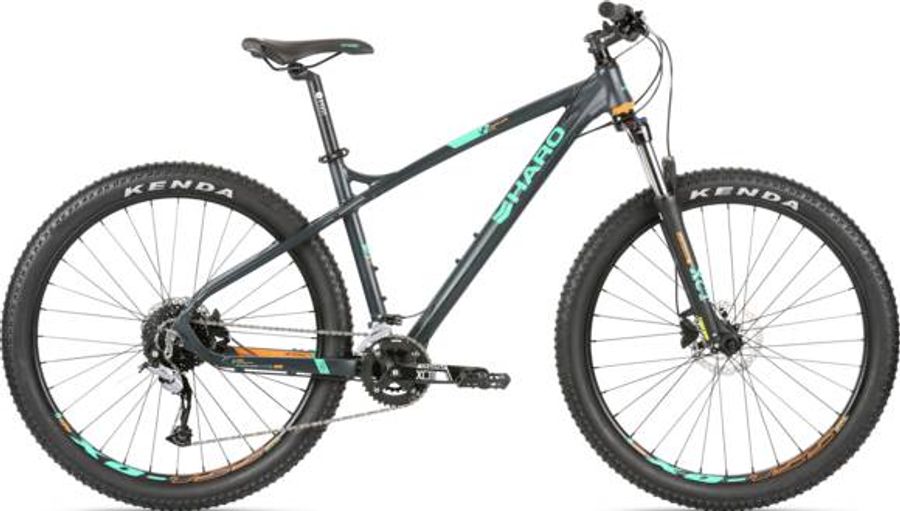

Haro Double Peak 27.5 Plus Trail 2019

About the Haro Double Peak 27.5 Plus Trail 2019

The Haro Double Peak 27.5 Plus Trail 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Acera drivetrain of 18 gears (2x9). Its features include hydraulic disc brakes.

Features

The Haro Double Peak 27.5 Plus Trail 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
FPD Nylon body, Crmo axles,Platform
Components
Steam
Pivit forged stem
Saddle
New Haro Double Peak
Headset
1-1/8" Threadless for 50mm OD headtube; w/ 13mm top cover
Seatpost
Pivit alloy micro adjust 31.6mm
Handlebar
Pivit alloy, 15mm riser bar 31.8mm, 700 to 720mm width
Brake lever
Shimano BL-MT200
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
New Suntour XCD-D118, BOOST, 38/28T, 2x9-Spd, 2-PC Crankset w/ axle
Shifter
MY19 Shimano SL-M3010-L 2x9-spd, SL-M2000-R, 9-spd
Bottom bracket
SR BB10-XCT Sealed cartridge
Front derailleur
Shimano Alivio, FD-M4020-M, 2x9-spd, Top Swing
Rear derailleur
Shimano Acera RD-M3000
Cassette
Shimano Altus CS-HG200-9 HG
Combination names
11-32T
11-34T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Phosphate coated
Lock ring material
Steel
Model
CS-HG200-9
Steel gear finish
Phosphate coated
Steel gear pieces
9
Type
HG
Chain
KMC Z9
Frameset
Frame
Haro Double Peak Comp 27.5" Plus 6000 series alloy, w/ smooth welding, specific chainstay design, Internal housing routing & Chainstay disc brake mount
Front suspension
SR Suntour XCT 30
Wheels
Rims
XD-155 alloy double wall 27.5", 32mm wide
Tires
Kenda Havoc 27.5x2.6"
Rear hub
New Shimano MT-200 alloy, Boost rear, Center Lock Disc, cassette 32h
Front hub
New Shimano MT-200 alloy, Boost rear, Center Lock Disc, cassette 32h

Geometry

Size XS SM MD LG
a
Seat tube length
368,0
406,0
457,0
508,0
b
Seat tube angle
72,5º
72,5º
72,5º
72,5º
c
Top tube length
565,0
590,0
619,0
630,0
d
Head tube length
100,0
100,0
100,0
110,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
88,0
88,0
87,0
88,0
h
Wheelbase
1078,0
1102,0
1132,0
1143,0
i
Chainstay length
447,0
447,0
447,0
447,0
j
Bottom bracket drop
55,0
55,0
55,0
55,0
k
Stack height
632,0
634,0
634,0
643,0
l
Reach
367,0
391,0
420,0
428,0
m
Standover height
754,0
757,0
758,0
780,0
x
Bottom bracket height
300,0
300,0
300,0
300,0
y
Front center
637,0
661,0
691,0
702,0
