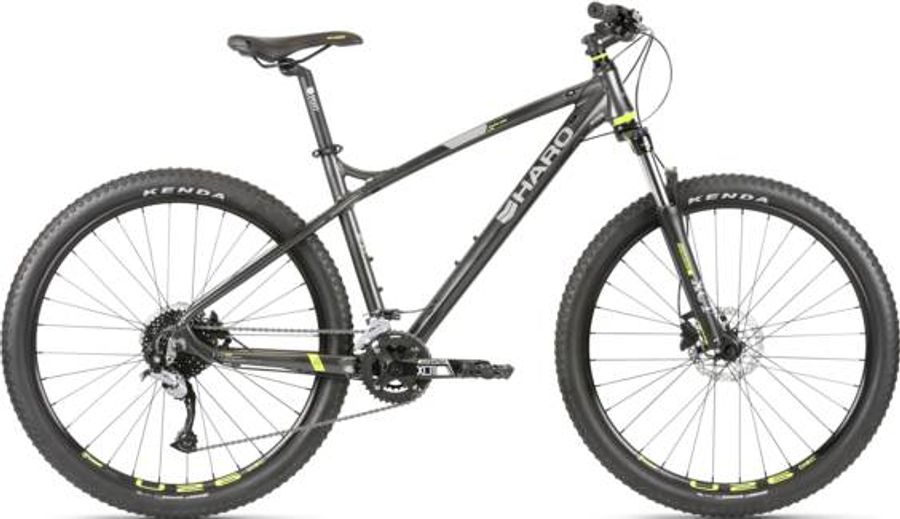

Haro Double Peak 27.5 Trail 2019

MTB Cross Country
Groupset
Shimano Acera
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Haro Double Peak 27.5 Trail 2019

About the Haro Double Peak 27.5 Trail 2019

The Haro Double Peak 27.5 Trail 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Acera drivetrain of 18 gears (2x9). Its features include hydraulic disc brakes.

Features

The Haro Double Peak 27.5 Trail 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
New FPD Nylon body, Crmo axles,Platform
Components
Steam
Pivit forged stem
Saddle
New Haro Double Peak
Headset
1-1/8" Threadless for 50mm OD headtube; w/ 13mm top cover
Seatpost
Pivit alloy micro adjust 31.6mm
Handlebar
Pivit alloy 25mm riser bar 31.8mm
Brake lever
Shimano BL-MT200
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Suntour XCD-D118, 38/28T, 2x9-Spd, 2-PC Crankset w/ axle
Shifter
Shimano Acera M3010, 2x9-spd
Bottom bracket
SR BB10-XCT Sealed cartridge
Front derailleur
Shimano Alivio, FD-M4020-M, 2x9-spd, Top Swing
Rear derailleur
Shimano Acera RD-M3000
Cassette
Shimano Altus CS-HG200-9 HG
Combination names
11-32T
11-34T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Phosphate coated
Lock ring material
Steel
Model
CS-HG200-9
Steel gear finish
Phosphate coated
Steel gear pieces
9
Type
HG
Chain
KMC Z9
Frameset
Frame
Haro Double Peak 27.5" 6000 series alloy, w/ Internal housing routing & chainstay disc brake mount
Front suspension
SR Suntour XCT 30
Wheels
Rims
Weinmann U-26 Disc alloy double wall
Tires
Kenda Honey Badger XC 27.5*2.2
Rear hub
New Shimano TX-505 alloy, Center Lock Disc, cassette 32h
Front hub
New Shimano TX-505 alloy, Center Lock Disc, cassette 32h

Geometry

Size XS SM MD LG
a
Seat tube length
356,0
406,0
457,0
508,0
b
Seat tube angle
72,0º
72,5º
72,5º
72,5º
c
Top tube length
567,0
592,0
617,0
637,0
d
Head tube length
100,0
115,0
115,0
120,0
e
Head tube angle
69,5º
70,0º
70,0º
70,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
85,0
85,0
85,0
84,0
h
Wheelbase
1050,0
1076,0
1101,0
1121,0
i
Chainstay length
435,0
435,0
435,0
435,0
j
Bottom bracket drop
45,0
45,0
45,0
45,0
k
Stack height
597,0
614,0
614,0
618,0
l
Reach
373,0
401,0
426,0
444,0
m
Standover height
727,0
735,0
748,0
768,0
x
Bottom bracket height
310,0
310,0
310,0
310,0
y
Front center
619,0
645,0
670,0
690,0
