Haro Double Peak 29 Sport 2019

MTB Cross Country
Groupset
Shimano Altus
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Haro Double Peak 29 Sport 2019

About the Haro Double Peak 29 Sport 2019

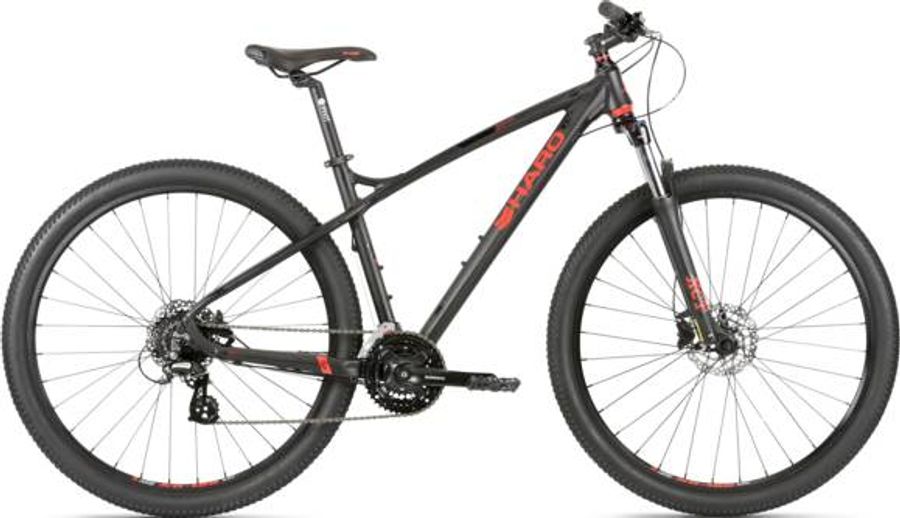

The Haro Double Peak 29 Sport 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain of 24 gears (3x8). Its features include hydraulic disc brakes.

Features

The Haro Double Peak 29 Sport 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
New FPD Nylon body, Crmo axles,Platform
Components
Steam
Pivit forged stem, 31.8mm
Saddle
New Haro Double Peak
Headset
1-1/8" Threadless for 50mm OD headtube; w/ 13mm top cover
Seatpost
Pivit alloy micro adjust 31.6mm
Handlebar
Pivit alloy, 20mm riser bar 31.8mm, 700 to 720mm width
Brake lever
Shimano BL-MT200
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano FC-TY501 42/34/24T
Shifter
Shimano SL-310 Rapidfire 3x8-spd
Bottom bracket
Shimano Sealed cartridge
Front derailleur
Shimano TY-700, dual-pull
Rear derailleur
Shimano Altus RD-M310 Smart 8/7s
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 8/7-speed
Lower pulley max
34T
Lower pulley min
28T
Model
RD-M310-Smart
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
Pulley teeth
13/15T
Pulley cage
Smart
Speeds
8/7
Upper pulley max
14T
Upper pulley min
11T
Total capacity
43T
Chain
KMC Z8
Cassette
Shimano Altus CS-HG200-8 HG
Combination names
12-32T
Compatible chain
HG 8-speed
Lock ring finish
Painted
Lock ring material
Steel
Model
CS-HG200-8
Steel gear finish
Phosphate coated
Steel gear pieces
8
Type
HG
Frameset
Frame
Haro Double Peak 29.0" 6000 series alloy, w/ Internal housing routing & chainstay disc brake mount
Front suspension
SR Suntour XCT 30
Wheels
Rims
XD-180 alloy double wall 29"
Tires
H-5129 29*2.2"
Rear hub
New Shimano TX-505 alloy, Center Lock Disc, cassette 32h
Front hub
New Shimano TX-505 alloy, Center Lock Disc, cassette 32h

Geometry

Size SM MD LG XL
a
Seat tube length
419,0
457,0
508,0
559,0
b
Seat tube angle
72,5º
72,5º
72,5º
72,5º
c
Top tube length
597,0
614,0
622,0
632,0
d
Head tube length
100,0
100,0
110,0
120,0
e
Head tube angle
70,5º
71,0º
71,0º
71,0º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
84,0
80,0
79,0
80,0
h
Wheelbase
1093,0
1104,0
1113,0
1123,0
i
Chainstay length
452,0
452,0
452,0
452,0
j
Bottom bracket drop
64,0
64,0
64,0
64,0
k
Stack height
633,0
635,0
645,0
654,0
l
Reach
398,0
414,0
419,0
426,0
m
Standover height
752,0
756,0
777,0
800,0
x
Bottom bracket height
310,0
310,0
310,0
310,0
y
Front center
649,0
660,0
669,0
679,0
