Haro Double Peak i/O 2019

E-Bike
MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm

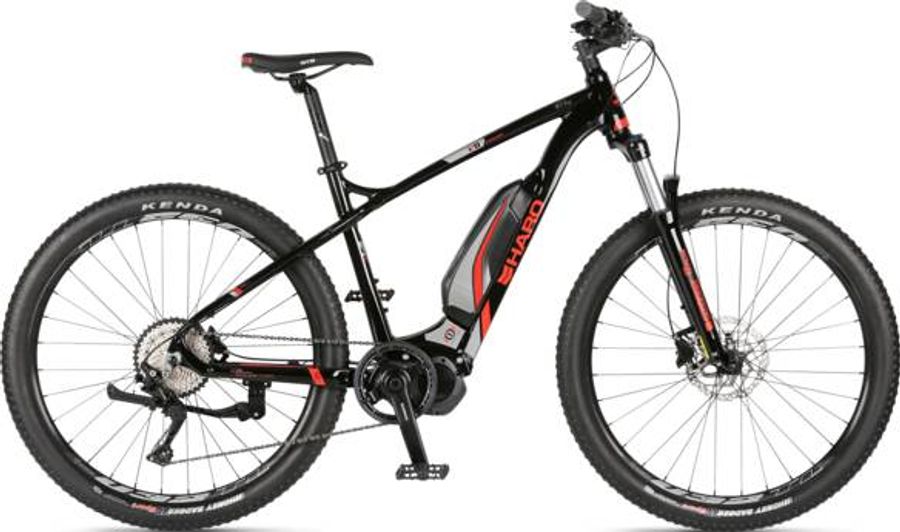

Haro Double Peak i/O 2019

About the Haro Double Peak i/O 2019

The Haro Double Peak i/O 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include hydraulic disc brakes, tapered head tube, and tubeless ready.

Features

The Haro Double Peak i/O 2019 has 3 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Pedals
New FPD Nylon, 9/16" Crmo axles
Components
Steam
3D Forged alloy
Saddle
WTB Volt Sport Wide 150mm
Battery
Shimano STePS BT-E8014, 418Wh
Headset
FPD Dozer 1-1/8"-1.5", w/ Bottom AC Bearing
Seatpost
Pivit Alloy Microadjust 31.6 x 350mm
Handlebar
Alloy riser bar, 25mm Rise
Brake lever
Shimano BL-MT201 Hydraulic
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano STePS E6100, 38T chainring
Motor
Shimano STePS E6100M (USA), STePS E6100K (Europe), 250 W, 50 Nm Torque
Shifter
Shimano Deore RapidFire+ 10-spd
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
Double Peak I/O X6 Aluminum frame for Shimano STePS w/ Tapered Head Tube & Top & Bottom Shrouds (E8000-type battery)
Front suspension
SR Suntour XCM 34
Wheels
Rims
Weinmann U-32 TL, Sleeved, Tubeless Ready, 27.5"x32mm; Double Wall w/ eyelets
Tires
Kenda Honey Badger, 27.5x2.20, 60tpi
Rear hub
Shimano MT-400 Front w/ Thru-Axle & M-4050 Rear w/ Quick Release, 32h, Cassette Body
Front hub
Shimano MT-400 Front w/ Thru-Axle & M-4050 Rear w/ Quick Release, 32h, Cassette Body

Geometry

Size XS SM MD LG XL
a
Seat tube length
356,0
406,0
457,0
508,0
559,0
b
Seat tube angle
72,0º
72,5º
72,5º
72,5º
72,5º
c
Top tube length
566,0
592,0
607,0
623,0
637,0
d
Head tube length
100,0
115,0
115,0
120,0
130,0
e
Head tube angle
68,5º
69,0º
69,0º
69,0º
69,0º
f
Rake
47,0
47,0
47,0
47,0
47,0
g
Trail
90,0
86,0
87,0
86,0
87,0
h
Wheelbase
1088,0
1116,0
1132,0
1151,0
1166,0
i
Chainstay length
457,0
457,0
457,0
457,0
457,0
j
Bottom bracket drop
45,0
45,0
45,0
45,0
45,0
k
Stack height
613,0
629,0
629,0
634,0
643,0
l
Reach
369,0
396,0
413,0
429,0
442,0
m
Standover height
737,0
746,0
757,0
778,0
805,0
x
Bottom bracket height
310,0
310,0
310,0
310,0
310,0
y
Front center
635,0
663,0
679,0
698,0
713,0
