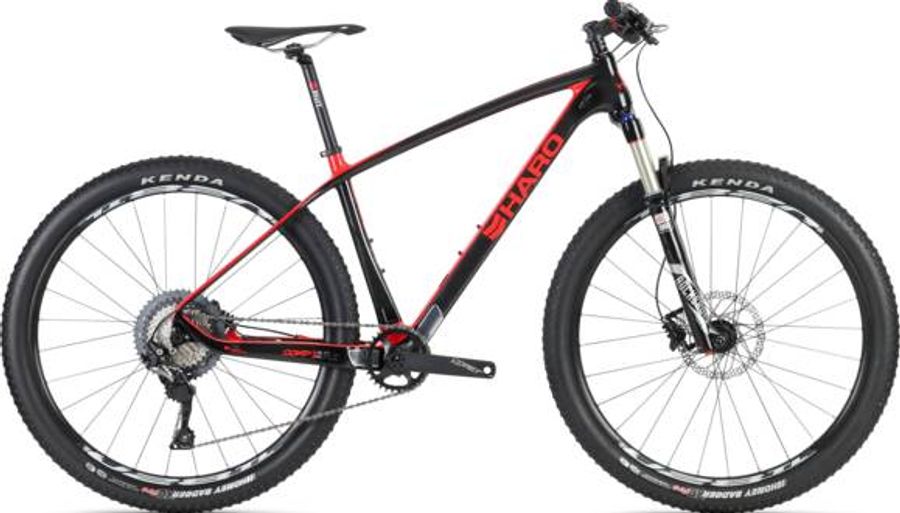

Haro FLC 27.5 Comp 2019
Groupset
Shimano SLX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm
About the Haro FLC 27.5 Comp 2019
The Haro FLC 27.5 Comp 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include e-thru axle, hydraulic disc brakes, and tapered head tube.
Features
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
Ritchey WCS Trail, Lock-on
|
|---|
|
Steam
|
Pivit Light 3D forged 6 Deg. 70 to 90mm
|
|---|---|
|
Saddle
|
Ritchey Comp Streem V3
|
|
Headset
|
Ritchey Comp Logic Zero Drop-In, tapered 1-1/8" / 1.5", w/ ACB sealed bearings
|
|
Seatpost
|
Pivit Light alloy, 2-bolt design, micro adjust 27.2mm
|
|
Handlebar
|
Pivit Light Flat 5 Deg. Backsweep, 31.8mm, 700mm wide
|
|
Brake lever
|
Shimano BL-396
|
|
Brakes
|
Shimano Alivio BR-M395
|
|
Crankset
|
FSA Comet Modular 32T Megatooth Crmo chainring
|
|---|---|
|
Shifter
|
Shimano SLX SL-M7000 11-spd
|
|
Bottom bracket
|
FSA BB-CFM92/CZ Press Fit BB92
|
|
Cassette
|
Shimano SLX CS-M7000-11
HG
|
|
1 (11-42T) 2 (11-46T) 11-42T 11-46T 10 (11-42T) 9 (11-46T) 11-42T: 476g 11-46T: 482g |
|
|
Rear derailleur
|
Shimano SLX RD-M7000-11-SGS
|
|
Chain
|
KMC X11
|
|
Frame
|
Haro FL Carbon 27.5 series w/ tapered headtube, BB92, 12mm rear thru-axle, direct front derailleur mount
|
|---|---|
|
Front suspension
|
RockShox Recon Gold RL
Solo Air
|
|
|
|
|
Rims
|
Weinmann U-28TL Disc rims, Tubeless Compatible, alloy double wall
|
|---|---|
|
Tires
|
Kenda Honey Badger XC 27.5*2.20" 60tpi
|
|
Rear hub
|
Pivit alloy disc 28h cassette, Frt 15mm & Shimano Rr 12mm Thru-Axles
|
|
Front hub
|
Pivit alloy disc 28h cassette, Frt 15mm & Shimano Rr 12mm Thru-Axles
|
Geometry
| Size | SM | MD | LG |
|---|---|---|---|
|
a
Seat tube length
|
380,0
|
430,0
|
480,0
|
|
b
Seat tube angle
|
73,5º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
564,0
|
584,0
|
599,0
|
|
d
Head tube length
|
98,0
|
106,0
|
114,0
|
|
e
Head tube angle
|
70,3º
|
71,0º
|
71,0º
|
|
f
Rake
|
45,0
|
45,0
|
45,0
|
|
g
Trail
|
79,0
|
75,0
|
76,0
|
|
h
Wheelbase
|
1056,0
|
1063,0
|
1078,0
|
|
i
Chainstay length
|
424,0
|
424,0
|
424,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
577,0
|
587,0
|
595,0
|
|
l
Reach
|
392,0
|
403,0
|
416,0
|
|
m
Standover height
|
763,0
|
790,0
|
817,0
|
|
x
Bottom bracket height
|
310,0
|
310,0
|
310,0
|
|
y
Front center
|
636,0
|
643,0
|
658,0
|
