Haro FLC 29 Pro 2019

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm
Haro FLC 29 Pro 2019

About the Haro FLC 29 Pro 2019

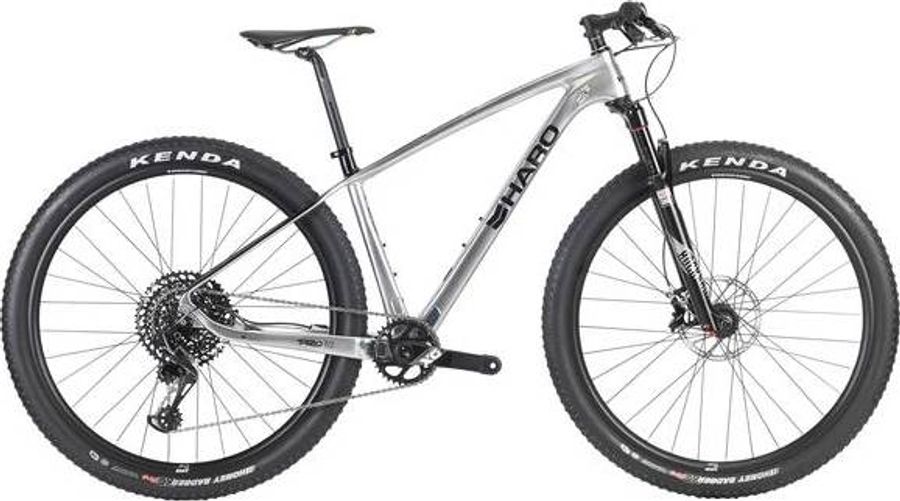

The Haro FLC 29 Pro 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include e-thru axle, hydraulic disc brakes, and tapered head tube.

Features

The Haro FLC 29 Pro 2019 has 4 features listed below.
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Ritchey WCS, Lock-on
Components
Steam
Ritchey WCS stem
Saddle
Ritchey WCS Streem V3
Headset
Ritchey WCS Logic Zero Drop-In, tapered 1-1/8" / 1.5", w/ ACB sealed bearings
Seatpost
Ritchey WCS 27.2mm
Handlebar
Ritchey WCS Flat bar
Brake lever
SRAM Guide RS
Brakes
SRAM Guide RS Hydraulic 384 g
Application
MTB
Blade material
Aluminum - Forged, Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RS-B1
Name
Guide RS
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
384
Drivetrain
Crankset
SRAM X01 Eagle 34t
Shifter
SRAM X01 Eagle Trigger 12-spd
Bottom bracket
SRAM GXP Press Fit BB92
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
2018 Haro FL Carbon 29" series w/ tapered headtube, BB92, 12mm rear thru-axle, Direct mount front derailleur, Boost rear hub compatible
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Wheels
Rims
American Classic Onward AM28, 29"
Tires
Kenda Honey Badger XC 29*2.20" 120TPI folding
Rear hub
American Classic Onward AM28, w/ 15mm Frt / 12mm Rear Thru-Axles
Front hub
American Classic Onward AM28, w/ 15mm Frt / 12mm Rear Thru-Axles

Geometry

Size MD LG XL
a
Seat tube length
425,0
475,0
525,0
b
Seat tube angle
73,0º
72,5º
72,5º
c
Top tube length
576,0
596,0
621,0
d
Head tube length
100,0
105,0
110,0
e
Head tube angle
70,0º
70,5º
70,5º
f
Rake
51,0
51,0
51,0
g
Trail
95,0
90,0
103,0
h
Wheelbase
1085,0
1096,0
1108,0
i
Chainstay length
441,0
441,0
441,0
j
Bottom bracket drop
60,0
60,0
60,0
k
Stack height
606,0
613,0
617,0
l
Reach
396,0
409,0
432,0
m
Standover height
788,0
817,0
844,0
x
Bottom bracket height
314,0
314,0
314,0
y
Front center
651,0
662,0
674,0
