Haro Flightline 26 Plus 2019
Groupset
Shimano Altus
Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Front travel
100mm

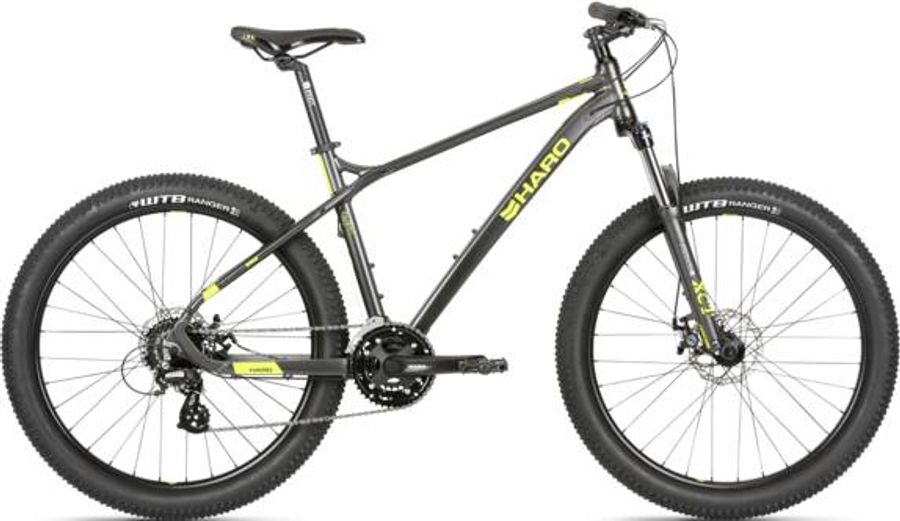

About the Haro Flightline 26 Plus 2019
The Haro Flightline 26 Plus 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain of 24 gears (3x8).
Specifications
|
Pedals
|
New FPD Nylon body, Crmo axles,Platform
|
|---|
|
Steam
|
Pivit melt forged, 31.8mm
|
|---|---|
|
Saddle
|
New MY19 Haro Flightline
|
|
Headset
|
1-1/8" threadless Internal, loose ball, alloy 8mm top cone
|
|
Seatpost
|
Pivit alloy micro adjust 30.9mm
|
|
Handlebar
|
Pivit alloy 25mm riser bar 31.8mm, 680 to 720mm wide
|
|
Brake lever
|
Shimano ST-EF500
|
|
Brakes
|
Promax DSK-300
|
|
Crankset
|
Suntour XCC-T102 42/34/24T
|
|---|---|
|
Shifter
|
New Shimano ST-EF500 3x8-spd
|
|
Bottom bracket
|
Sealed cartridge BB, 126.5m axle, 50mm Chainline
|
|
Front derailleur
|
Shimano Tourney TY-700, Dual-Pull
|
|
Rear derailleur
|
Shimano Altus RD-M310
Smart
8/7s
|
|
|
|
|
Chain
|
KMC Z8
|
|
Cassette
|
Shimano Altus CS-HG200-8
HG
|
|
|
|
|
Frame
|
2019 Haro Flightline Two FL4G 6000 series alloy w/ Internal Head Tube & IS Disc mount
|
|---|---|
|
Front suspension
|
SR Suntour XCT 30
|
|
Rims
|
XD-155 32mm alloy double wall rims
|
|---|---|
|
Tires
|
WTB Ranger 26*2.8
|
|
Rear hub
|
Pivit alloy 32 hubs, Boost rear hub w/ cassette
|
|
Front hub
|
Pivit alloy 32 hubs, Boost rear hub w/ cassette
|
Geometry
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
|
a
Seat tube length
|
356,0
|
406,0
|
457,0
|
508,0
|
|
b
Seat tube angle
|
72,5º
|
72,5º
|
72,5º
|
72,5º
|
|
c
Top tube length
|
572,0
|
592,0
|
622,0
|
637,0
|
|
d
Head tube length
|
100,0
|
115,0
|
115,0
|
120,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
88,0
|
87,0
|
87,0
|
81,0
|
|
h
Wheelbase
|
1073,0
|
1094,0
|
1124,0
|
1144,0
|
|
i
Chainstay length
|
442,0
|
442,0
|
442,0
|
442,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
599,0
|
613,0
|
613,0
|
618,0
|
|
l
Reach
|
386,0
|
401,0
|
431,0
|
444,0
|
|
m
Standover height
|
713,0
|
722,0
|
746,0
|
766,0
|
|
x
Bottom bracket height
|
298,0
|
298,0
|
298,0
|
298,0
|
|
y
Front center
|
635,0
|
656,0
|
686,0
|
706,0
|
