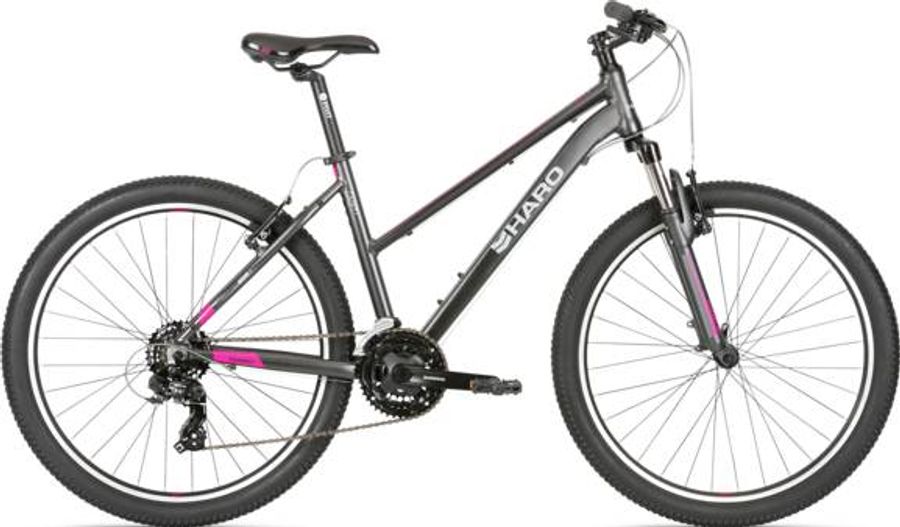

Haro Flightline One ST 2019
The Haro Flightline One ST 2019 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Front travel
80mm
About the Haro Flightline One ST 2019
The Haro Flightline One ST 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain of 21 gears (3x7).
Specifications
|
Pedals
|
Nylon body, Crmo axles,Platform
|
|---|
|
Steam
|
Pivit melt forged, 31.8mm
|
|---|---|
|
Brakes
|
Promax TX-121 V-Brakes
|
|
Saddle
|
New Haro Women's Flightline
|
|
Headset
|
1-1/8" threadless Internal, loose ball, alloy 13mm top cone
|
|
Seatpost
|
Pivit alloy micro adjust 30.9mm
|
|
Handlebar
|
Pivit alloy 25mm riser bar 31.8mm
|
|
Brake lever
|
Shimano EF-41
|
|
Crankset
|
Shimano FC-TY301 42/34/24T
|
|---|---|
|
Shifter
|
Shimano EF-41 3x7-spd
|
|
Bottom bracket
|
BBUN100 Sealed cartridge
|
|
Front derailleur
|
Shimano Tourney TY-500
|
|
Rear derailleur
|
Shimano Tourney RD-TY300
SGS
7/6s
|
|
|
|
|
Chain
|
KMC Z51
|
|
Cassette
|
Shimano Altus CS-HG200-7
HG
|
|
12-32T |
|
|
Front suspension
|
HL CH-389, 26"w/ 80mm Travel
|
|---|---|
|
Frame
|
2019 Haro Flightline FL4G 6000 series alloy
|
|
Rims
|
XD-180 alloy double wall
|
|---|---|
|
Tires
|
H-5120 26 x 2.25"
|
|
Rear hub
|
Pivit alloy front hub, Shimano TY-500 cassette rear hub, 32h
|
|
Front hub
|
Pivit alloy front hub, Shimano TY-500 cassette rear hub, 32h
|
Geometry
| Size | 14" | 17" |
|---|---|---|
|
a
Seat tube length
|
355,0
|
430,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
|
c
Top tube length
|
567,0
|
572,0
|
|
d
Head tube length
|
110,0
|
120,0
|
|
e
Head tube angle
|
71,0º
|
71,0º
|
|
f
Rake
|
33,0
|
33,0
|
|
g
Trail
|
83,0
|
83,0
|
|
h
Wheelbase
|
1036,0
|
1041,0
|
|
i
Chainstay length
|
431,0
|
431,0
|
|
j
Bottom bracket drop
|
35,0
|
35,0
|
|
k
Stack height
|
579,0
|
588,0
|
|
l
Reach
|
392,0
|
394,0
|
|
m
Standover height
|
648,0
|
649,0
|
|
x
Bottom bracket height
|
308,0
|
308,0
|
|
y
Front center
|
607,0
|
612,0
|
