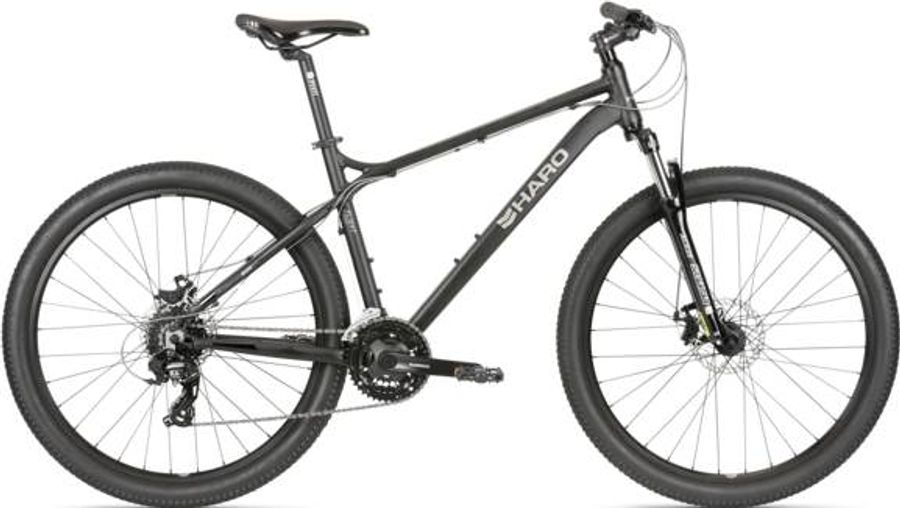

Haro Flightline Two 27.5 2019
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm
About the Haro Flightline Two 27.5 2019
The Haro Flightline Two 27.5 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain of 24 gears (3x8).
Specifications
|
Pedals
|
New FPD Nylon body, Crmo axles,Platform
|
|---|
|
Steam
|
Pivit melt forged, 31.8mm
|
|---|---|
|
Brakes
|
Mechanical Disc Brakes w/ 160mm Rotors
|
|
Saddle
|
New MY19 Haro Flightline
|
|
Headset
|
1-1/8" threadless Internal, loose ball, alloy 8mm top cone
|
|
Seatpost
|
Pivit alloy micro adjust 30.9mm
|
|
Handlebar
|
Pivit alloy 25mm riser bar 31.8mm
|
|
Brake lever
|
Shimano ST-EF-500
|
|
Crankset
|
Shimano FC-TY301 42/34/24T
|
|---|---|
|
Shifter
|
Shimano ST-EF-500 3x8-spd
|
|
Bottom bracket
|
BBUN100 Sealed cartridge
|
|
Front derailleur
|
Shimano Tourney TY-700
|
|
Rear derailleur
|
Shimano Tourney RD-TY500
SGS
7/6s
|
|
|
|
|
Chain
|
KMC Z8
|
|
Cassette
|
Shimano Altus CS-HG200-8
HG
|
|
|
|
|
Frame
|
2019 Haro Flightline FL4G 6000 series alloy w/ Upper Cable Route, Internal Head Tube & IS Disc mount
|
|---|---|
|
Front suspension
|
SR Suntour XCE 28
|
|
Rims
|
XD-180 alloy double wall
|
|---|---|
|
Tires
|
H-5129 27.5 x 2.2"
|
|
Rear hub
|
Pivit alloy cassette 32h
|
|
Front hub
|
Pivit alloy cassette 32h
|
Geometry
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
|
a
Seat tube length
|
356,0
|
406,0
|
457,0
|
508,0
|
|
b
Seat tube angle
|
72,5º
|
72,5º
|
72,5º
|
72,5º
|
|
c
Top tube length
|
574,0
|
600,0
|
630,0
|
641,0
|
|
d
Head tube length
|
110,0
|
115,0
|
115,0
|
120,0
|
|
e
Head tube angle
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
84,0
|
85,0
|
85,0
|
85,0
|
|
h
Wheelbase
|
1060,0
|
1086,0
|
1116,0
|
1127,0
|
|
i
Chainstay length
|
435,0
|
435,0
|
435,0
|
435,0
|
|
j
Bottom bracket drop
|
38,5
|
38,5
|
38,5
|
38,5
|
|
k
Stack height
|
590,0
|
595,0
|
595,0
|
600,0
|
|
l
Reach
|
390,0
|
415,0
|
445,0
|
454,0
|
|
m
Standover height
|
686,0
|
712,0
|
741,0
|
773,0
|
|
x
Bottom bracket height
|
317,0
|
317,0
|
317,0
|
317,0
|
|
y
Front center
|
628,0
|
654,0
|
684,0
|
695,0
|
