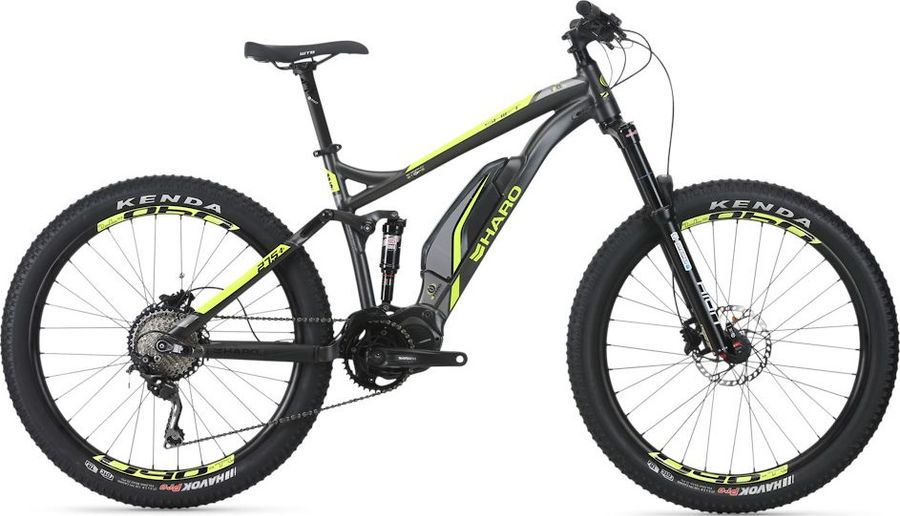

Haro Shift i/O 5 2018
The Haro Shift i/O 5 2018 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
200mm
About the Haro Shift i/O 5 2018
The Haro Shift i/O 5 2018 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include hydraulic disc brakes e tubeless ready.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
WTB Ace
|
|---|
|
Steam
|
Pivit X6, 3D forged alloy
|
|---|---|
|
Saddle
|
WTB Rocket Sport
|
|
Battery
|
Shimano Steps E8000
|
|
Headset
|
FPD Dozer with bottom AC bearing
|
|
Seatpost
|
Pivit X6, alloy, 2-bolt, 350mm
|
|
Handlebar
|
Pivit X6 Riser, alloy, 15mm rise, 31.8mm diameter
|
|
Brake lever
|
Shimano M395
|
|
Brakes
|
Shimano Alivio BR-M395
|
|
Crankset
|
Shimano e8000, forged
|
|---|---|
|
Motor
|
Shimano Steps E8000
|
|
Shifter
|
Shimano Deore, 10-speed
|
|
Rear derailleur
|
Shimano Deore RD-M6000-GS
GS
10s
|
|
|
|
|
Chain
|
KMC X10
|
|
Cassette
|
Shimano Deore CS-HG500-10
|
|
Frame
|
Aluminum
|
|---|---|
|
Front suspension
|
SR Suntour Aion 35
|
|
Rear suspension
|
RockShox Monarch R
205 g
|
|
|
|
|
Rims
|
Weinmann U-40 TL, tubeless ready, 40mm width, double wall
|
|---|---|
|
Tires
|
Kenda Havoc 2.8", 120tpi, Aramid beads, tubeless compatible
|
|
Spokes
|
Weinmann U-40 TL
|
|
Rear hub
|
Weinmann U-40 TL
|
|
Front hub
|
Weinmann U-40 TL
|
Geometry
| Size | 14.5" | 16" | 18" | 20.5" | 22" |
|---|---|---|---|---|---|
|
a
Seat tube length
|
368,0
|
406,0
|
457,0
|
520,0
|
559,0
|
|
b
Seat tube angle
|
76,0º
|
76,0º
|
75,7º
|
75,7º
|
75,5º
|
|
c
Top tube length
|
572,0
|
587,0
|
617,0
|
632,0
|
642,0
|
|
d
Head tube length
|
100,0
|
110,0
|
120,0
|
130,0
|
140,0
|
|
e
Head tube angle
|
67,0º
|
67,0º
|
67,0º
|
67,0º
|
67,0º
|
|
f
Rake
|
49,0
|
49,0
|
48,0
|
51,0
|
51,0
|
|
g
Trail
|
98,0
|
98,0
|
99,0
|
95,0
|
95,0
|
|
h
Wheelbase
|
1171,0
|
1189,0
|
1220,0
|
1236,0
|
1252,0
|
|
i
Chainstay length
|
459,0
|
459,0
|
459,0
|
459,0
|
459,0
|
|
j
Bottom bracket drop
|
20,0
|
20,0
|
20,0
|
20,0
|
20,0
|
|
k
Stack height
|
603,0
|
612,0
|
618,0
|
631,0
|
640,0
|
|
l
Reach
|
415,0
|
429,0
|
458,0
|
465,0
|
478,0
|
|
m
Standover height
|
770,0
|
777,0
|
777,0
|
796,0
|
820,0
|
|
x
Bottom bracket height
|
335,0
|
335,0
|
335,0
|
335,0
|
335,0
|
|
y
Front center
|
713,0
|
731,0
|
762,0
|
778,0
|
794,0
|
