BikeWise

Haro Shift Plus i/O 7 2019

E-Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm
Haro Shift Plus i/O 7 2019

About the Haro Shift Plus i/O 7 2019

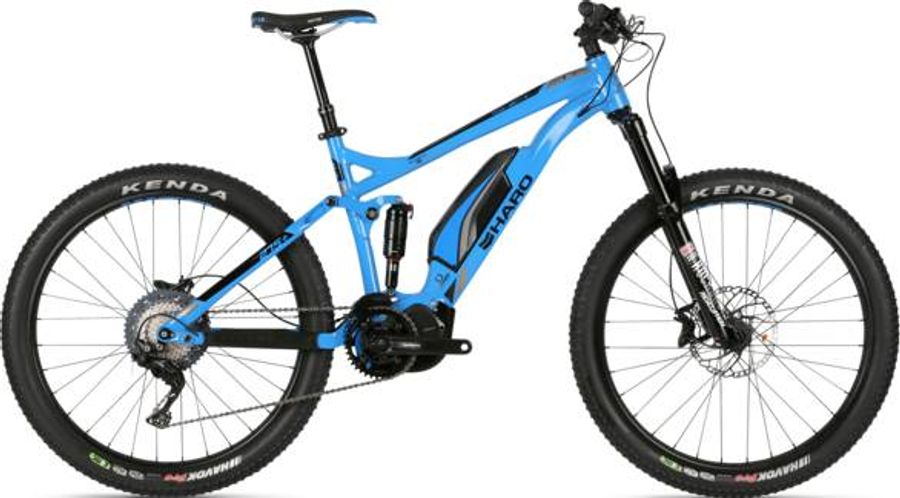

The Haro Shift Plus i/O 7 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready.

Features

The Haro Shift Plus i/O 7 2019 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
WTB Ace, dual clamps, 135mm
Components
Steam
Race Face Aeffect R 35mm Forged short alloy
Saddle
WTB Volt Comp 150mm Wide
Battery
Shimano STePS E8010, 500Wh
Headset
FPD Dozer 1-1/8"-1.5", w/ Bottom AC Bearing, 8mm Cone
Seatpost
X-Fusion Manic 125 Dropper post w/ shifter-type remote, 7075 alloy, 31.6x125mmx400 / 100x360mm
Handlebar
Race Face Ride Alloy 35mm bar, 20mm rise
Brake lever
Shimano BL-MT501 Hydraulic
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Shimano E8000, forged, 38T Chainring
Motor
Shimano STePS E8000, 70Nm Torque
Shifter
Shimano SLX M7000 11-spd
Chain guide
Shimano
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC e11 Turbo
Frameset
Frame
Shift Plus I/O X6 Aluminum frame for Shimano STePS E8000, 4-Bar linkage, vertical shock, 140mm travel, Enduro Bearings
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Monarch RL 215 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
430
Model
RS-MNR-RL-C2
Name
Monarch RL
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
New WTB ST i35 TCS 2.0, Tubeless Ready, 27.5"x40mm, Double Wall
Tires
Kenda HAVOC 27.5x2.6", 120tpi, Aramid beads, Pro EMC, Tubeless Compatible
Rear hub
Pivit Alloy disc Boost, E-Bike specific, 32h cassette, Sealed Bearings, w/ Front & Rear Thru-Axle
Front hub
Pivit Alloy disc Boost, E-Bike specific, 32h cassette, Sealed Bearings, w/ Front & Rear Thru-Axle

Geometry

Size XS SM MD LG XL
a
Seat tube length
368,0
410,0
457,0
521,0
559,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
572,0
587,0
617,0
632,0
642,0
d
Head tube length
100,0
110,0
120,0
130,0
140,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
67,0º
f
Rake
46,0
46,0
46,0
46,0
46,0
g
Trail
101,0
102,0
102,0
101,0
100,0
h
Wheelbase
1166,0
1182,0
1213,0
1230,0
1246,0
i
Chainstay length
459,0
459,0
459,0
459,0
459,0
j
Bottom bracket drop
20,0
20,0
20,0
20,0
20,0
k
Stack height
598,0
607,0
616,0
625,0
634,0
l
Reach
415,0
428,0
455,0
467,0
479,0
m
Standover height
762,0
769,0
769,0
788,0
812,0
x
Bottom bracket height
335,0
335,0
335,0
335,0
335,0
y
Front center
708,0
724,0
755,0
772,0
788,0
