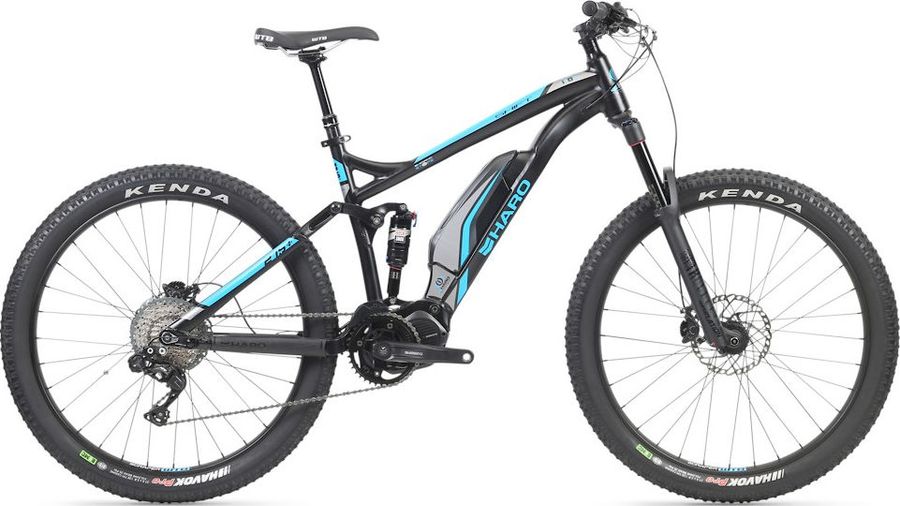

Haro Shift Plus i/O 9 2018
The Haro Shift Plus i/O 9 2018 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano XT Di2
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm
About the Haro Shift Plus i/O 9 2018
The Haro Shift Plus i/O 9 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT Di2 drivetrain of 11 gears (1x11). Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Ritchey MTN Trail WCS locking, 135mm
|
|---|
|
Steam
|
Pivit X6, 3D forged alloy
|
|---|---|
|
Saddle
|
WTB Rocket Comp
|
|
Battery
|
Shimano Steps E8000
|
|
Headset
|
FPD Dozer with bottom AC bearing
|
|
Seatpost
|
TranzX Internal Dropper, 80mm or 100mm drop
|
|
Handlebar
|
Pivit X6 Riser, alloy, 15mm rise, 31.8mm diameter
|
|
Brake lever
|
Shimano SLX
|
|
Brakes
|
Shimano SLX BR-M7000
|
|
Crankset
|
Shimano E8000, forged
|
|---|---|
|
Motor
|
Shimano Steps E8000
|
|
Shifter
|
Shimano XT Di2 Switch, 11-speed
|
|
Cassette
|
Shimano Deore XT CS-M8000
HG
|
|
11-42T 11-46T 11-42T: 434g 11-46T: 437g |
|
|
Rear derailleur
|
Shimano Deore XT RD-M8050 Di2
|
|
Chain
|
KMC X11
|
|
Frame
|
Aluminum
|
|---|---|
|
Front suspension
|
RockShox Revelation RC
DebonAir
|
|
|
|
|
Rear suspension
|
RockShox Monarch RL
215 g
|
|
|
|
|
Rims
|
WTB i35, tubeless ready, 40mm double wall
|
|---|---|
|
Tires
|
Kenda Havoc 2.8", 120tpi, Aramid beads, Pro EMC, tubeless compatible
|
|
Spokes
|
WTB i35
|
|
Rear hub
|
WTB i35
|
|
Front hub
|
WTB i35
|
Geometry
| Size | 14.5" | 16" | 18" | 20.5" | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
368,0
|
406,0
|
457,0
|
520,0
|
559,0
|
|
b
Seat tube angle
|
76,0º
|
76,0º
|
75,7º
|
75,7º
|
75,5º
|
|
c
Top tube length
|
572,0
|
587,0
|
617,0
|
632,0
|
642,0
|
|
d
Head tube length
|
100,0
|
110,0
|
120,0
|
130,0
|
140,0
|
|
e
Head tube angle
|
67,0º
|
67,0º
|
67,0º
|
67,0º
|
67,0º
|
|
f
Rake
|
45,0
|
45,0
|
45,0
|
48,0
|
47,0
|
|
g
Trail
|
102,0
|
102,0
|
102,0
|
99,0
|
100,0
|
|
h
Wheelbase
|
1166,0
|
1184,0
|
1215,0
|
1231,0
|
1247,0
|
|
i
Chainstay length
|
459,0
|
459,0
|
459,0
|
459,0
|
459,0
|
|
j
Bottom bracket drop
|
20,0
|
20,0
|
20,0
|
20,0
|
20,0
|
|
k
Stack height
|
600,0
|
609,0
|
615,0
|
628,0
|
637,0
|
|
l
Reach
|
415,0
|
429,0
|
458,0
|
465,0
|
478,0
|
|
m
Standover height
|
762,0
|
769,0
|
769,0
|
788,0
|
812,0
|
|
x
Bottom bracket height
|
335,0
|
335,0
|
335,0
|
335,0
|
335,0
|
|
y
Front center
|
708,0
|
726,0
|
757,0
|
773,0
|
789,0
|
