Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
120mm
Rear travel
125mm

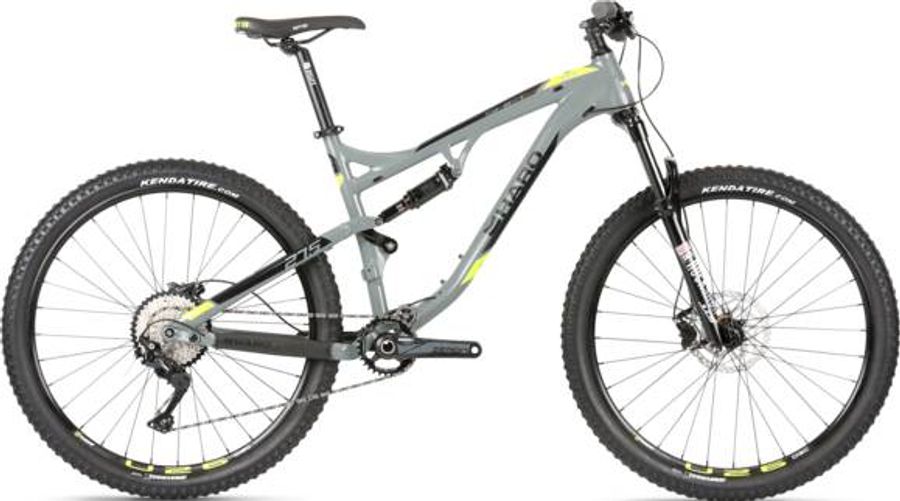

About the Haro Shift R3 27.5 2019
The Haro Shift R3 27.5 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 , boost 148, and e-thru axle.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
WTB Weirwolf
|
|---|
|
Steam
|
Pivit alloy Trail 0 Deg. 4 bolts, ext.: 60mm
|
|---|---|
|
Saddle
|
WTB Volt Sport w/ color accents
|
|
Headset
|
FPD DOZER-1160A-2 w/ 1.5" ACB bottom for 44/56mm head tube, W/ 8mm Top Cone
|
|
Seatpost
|
Pivit alloy micro adjust 31.6mm
|
|
Handlebar
|
Pivit alloy 20mm riser bar 31.8mm, 700 / 720mm, 9 Deg. sweep
|
|
Brake lever
|
Shimano BL-MT201 hydraulic
|
|
Brakes
|
Shimano BR-MT200
Hydraulic disc brake
2 piston
|
|
BL-MT200 SM-RT26* |
|
|
Crankset
|
Suntour Zeron 1X AX-S-BT-30, Boost, 30T Steel Zig-Zag Chainring
|
|---|---|
|
Shifter
|
Shimano Deore M6000, right only, 1x10-spd, w/ optical gear display
|
|
Chain guide
|
GW alloy, front derailleur plate mounted
|
|
Bottom bracket
|
Suntour BB-BKA008-C, 73mm, sealed cartridge
|
|
Front derailleur
|
GW alloy chain guide, Front Der. plate mounted
|
|
Rear derailleur
|
Shimano Deore RD-M6000-GS
GS
10s
|
|
|
|
|
Chain
|
KMC X10
|
|
Cassette
|
Shimano Deore CS-HG500-10
|
|
Frame
|
6061-T6 series alloy dual suspended 4-Bar linkage frame, 125mm rear travel, tapered 1.5" head tube, 73mm BB shell, Enduro bearings, Boost 12mm thru-axle dropouts
|
|---|---|
|
Front suspension
|
RockShox Judy Silver
|
|
Rear suspension
|
RockShox Monarch R
205 g
|
|
|
|
|
Rims
|
Weinmann U-26 Disc- 27.5" x 32h alloy double wall
|
|---|---|
|
Tires
|
Kenda Nevegal X 27.5*2.35, 60tpi
|
|
Rear hub
|
Shimano MT400-B, Boost Disc alloy 32h, 15x110mm Frt & 12x148mm Rear Thru-Axles
|
|
Front hub
|
Shimano MT400-B, Boost Disc alloy 32h, 15x110mm Frt & 12x148mm Rear Thru-Axles
|
Geometry
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
|
a
Seat tube length
|
368,0
|
406,0
|
457,0
|
520,0
|
|
b
Seat tube angle
|
70,5º
|
71,5º
|
72,2º
|
72,8º
|
|
c
Top tube length
|
567,0
|
587,0
|
617,0
|
632,0
|
|
d
Head tube length
|
100,0
|
110,0
|
120,0
|
130,0
|
|
e
Head tube angle
|
68,0º
|
68,5º
|
68,5º
|
68,5º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
98,0
|
96,0
|
95,0
|
96,0
|
|
h
Wheelbase
|
1103,0
|
1124,0
|
1160,0
|
1180,0
|
|
i
Chainstay length
|
442,0
|
442,0
|
442,0
|
442,0
|
|
j
Bottom bracket drop
|
20,0
|
20,0
|
20,0
|
20,0
|
|
k
Stack height
|
574,0
|
586,0
|
595,0
|
605,0
|
|
l
Reach
|
395,0
|
418,0
|
450,0
|
467,0
|
|
m
Standover height
|
741,0
|
744,0
|
754,0
|
762,0
|
|
x
Bottom bracket height
|
335,0
|
335,0
|
335,0
|
335,0
|
|
y
Front center
|
662,0
|
683,0
|
719,0
|
739,0
|
