Haro Shift R3 29 2019

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm

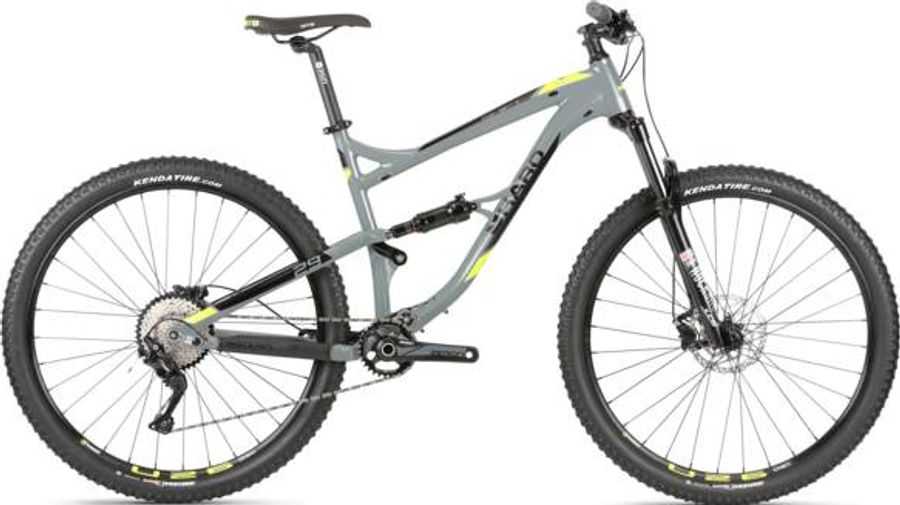

Haro Shift R3 29 2019

About the Haro Shift R3 29 2019

The Haro Shift R3 29 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 , boost 148, and e-thru axle.

Features

The Haro Shift R3 29 2019 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
WTB Weirwolf
Components
Steam
Pivit alloy Trail 0 Deg. 4 bolts, ext.: 60mm
Saddle
WTB Volt Sport w/ color accents
Headset
FPD DOZER-1160A-2 w/ 1.5" ACB bottom for 44/56mm head tube, W/ 8mm Top Cone
Seatpost
Pivit alloy micro adjust 31.6mm
Handlebar
Pivit alloy 20mm riser bar 31.8mm, 700 / 720mm, 9 Deg. sweep
Brake lever
Shimano BL-MT201 hydraulic
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Suntour Zeron 1X AX-S-BT-30, Boost, 30T Steel Zig-Zag Chainring
Shifter
Shimano Deore M6000, right only, 1x10-spd, w/ optical gear display
Chain guide
GW alloy, front derailleur plate mounted
Bottom bracket
Suntour BB-BKA008-C, 73mm, sealed cartridge
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
MY19 6061-T6 series 29" alloy dual suspended 4-Bar linkage frame, 120mm rear travel, tapered 1.5" head tube, 73mm BB shell, Enduro bearings, Boost 12mm thru-axle dropouts
Front suspension
RockShox Judy Silver
Rear suspension
RockShox Deluxe R
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L3, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-R-B1
Name
Deluxe R
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
Weinmann U-26 Disc- 29" x 32h alloy double wall
Tires
Kenda Nevegal X 29*2.2, 60tpi
Rear hub
Shimano MT400-B, Boost Disc alloy 32h, 15x110mm Frt & 12x148mm Rear Thru-Axles
Front hub
Shimano MT400-B, Boost Disc alloy 32h, 15x110mm Frt & 12x148mm Rear Thru-Axles

Geometry

Size SM MD LG XL
a
Seat tube length
381,0
432,0
483,0
533,0
b
Seat tube angle
72,0º
72,0º
72,0º
72,0º
c
Top tube length
550,0
579,0
602,0
625,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
67,5º
68,0º
68,0º
68,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
100,0
96,0
96,0
96,0
h
Wheelbase
1135,0
1159,0
1183,0
1207,0
i
Chainstay length
448,0
448,0
448,0
448,0
j
Bottom bracket drop
30,0
30,0
30,0
30,0
k
Stack height
590,0
602,0
612,0
621,0
l
Reach
398,0
423,0
443,0
463,0
m
Standover height
761,0
765,0
768,0
785,0
x
Bottom bracket height
344,0
344,0
344,0
344,0
y
Front center
689,0
713,0
737,0
761,0
