Haro Shift R5 29 2020

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm

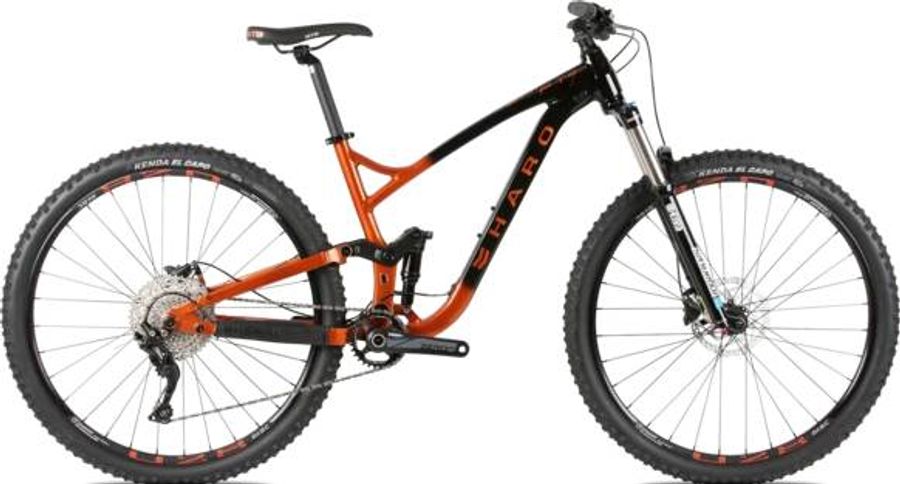

Haro Shift R5 29 2020

About the Haro Shift R5 29 2020

The Haro Shift R5 29 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and e-thru axle.

Features

The Haro Shift R5 29 2020 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Components
Steam
Pivit alloy Trail 0 Deg. 4 bolts, ext.: 40mm
Saddle
WTB Volt Sport w/ color accents
Headset
FPD DOZER-1160A-2 w/ 1.5" ACB bottom for 44/56mm head tube, W/ 8mm Top Cone
Seatpost
Pivit alloy micro adjust 31.6mm
Handlebar
Pivit alloy 20mm riser bar 31.8mm, 760mm, 9 Deg. sweep
Brake lever
Shimano BL-MT201 hydraulic
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Suntour Zeron 1X AX-S-BT-30, Boost, 30T Steel Zig-Zag Chainring
Shifter
New Shimano Deore M5100, right only, 1x11-spd, w/ optical gear display
Bottom bracket
Suntour BB-BKA008-C, 73mm, sealed cartridge
Rear derailleur
Shimano Deore RD-M5100-SGS SGS 11s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X11 11-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M5100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
40T
Cassette
Shimano Deore CS-M5100-11 HG
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
11-42T
11-51T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M5100-11
Steel gear finish
Plated
Steel gear pieces
11
Type
HG
Chain
KMC X11
Frameset
Frame
New MY20 X6 series 29" alloy dual suspended 4-Bar linkage frame, 120mm rear travel, tapered 1.5" head tube, 73mm BB shell, Enduro bearings, Boost 12mm thru-axle dropouts
Rear suspension
X-Fusion O2 Pro RL
Front suspension
SR Suntour XCR 34 AIR
Wheels
Rims
Weinmann U-28 Disc 29" x 32h alloy double wall
Tires
Kenda Regolith, 29.0x2.4"
Rear hub
Shimano MT400-B, Boost Disc alloy 32h, 15x110mm Frt & 12x148mm Rear Thru-Axles
Front hub
Shimano MT400-B, Boost Disc alloy 32h, 15x110mm Frt & 12x148mm Rear Thru-Axles

Geometry

Size SM MD LG XL
a
Seat tube length
396,0
433,0
471,0
496,0
b
Seat tube angle
69,0º
69,0º
69,0º
69,0º
c
Top tube length
581,0
609,0
638,0
666,0
d
Head tube length
100,0
100,0
110,0
120,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
106,0
106,0
106,0
106,0
h
Wheelbase
1156,0
1181,0
1210,0
1239,0
i
Chainstay length
434,0
434,0
434,0
434,0
j
Bottom bracket drop
35,0
35,0
35,0
35,0
k
Stack height
609,0
609,0
618,0
627,0
l
Reach
421,0
446,0
471,0
496,0
m
Standover height
715,0
726,0
748,0
755,0
x
Bottom bracket height
339,0
339,0
339,0
339,0
y
Front center
724,0
749,0
778,0
807,0
