Haro Shift R5 LT 2018

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
15,06 kg
Front travel
150mm
Rear travel
140mm

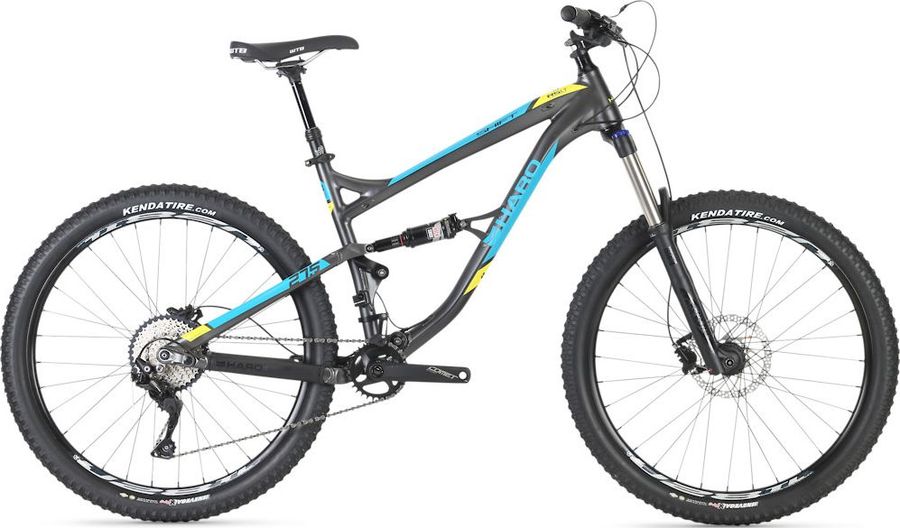

Haro Shift R5 LT 2018

About the Haro Shift R5 LT 2018

The Haro Shift R5 LT 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 15,06 kg.

Features

The Haro Shift R5 LT 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
WTB Ace, 135mm
Components
Steam
Pivit X6 Trail, alloy, 3D forged, 0°, 60mm length (XS-M), 70mm or 80mm length (L)
Saddle
WTB Rocket Sport
Headset
Ritchey Comp Logic Zero, press fit
Seatpost
Pivit Dropper with remote, 100mm drop
Handlebar
Pivit X6, 30mm rise, 760mm wide; 9° sweep
Brake lever
Shimano BL-M396
Brakes
Shimano Alivio BR-M395
Drivetrain
Crankset
FSA Comet Modular, 170mm length (XS-S), 175mm length (M-L)
Shifter
Shimano Deore, 10-speed, optical gear display
Chain guide
Mr. Control, alloy, direct mount plate cover and upper chain guide
Bottom bracket
FSA MegaExo, 73mm sealed cartridge
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
Aluminum
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
RockShox Monarch R 205 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Model
RS-MNR-R-C3
Name
Monarch R
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
205
Wheels
Rims
Weinmann U-28TL Disc, 32 hole, alloy double wall, tubeless compatible
Tires
Kenda Nevegal X 2.35", BK/BSK 60tpi, wire beads
Spokes
Weinmann U-28TL Disc
Rear hub
Weinmann U-28TL Disc
Front hub
Weinmann U-28TL Disc

Geometry

Size 14.5" 16" 18" 20.5"
a
Seat tube length
368,0
406,0
457,0
520,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
567,0
587,0
617,0
632,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
67,0º
68,0º
68,0º
68,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
105,0
98,0
98,0
98,0
h
Wheelbase
1111,0
1127,0
1164,0
1184,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
20,0
20,0
20,0
20,0
k
Stack height
597,0
612,0
621,0
630,0
l
Reach
387,0
409,0
442,0
459,0
m
Standover height
758,0
760,0
768,0
787,0
x
Bottom bracket height
335,0
335,0
335,0
335,0
y
Front center
675,0
691,0
728,0
748,0
