Haro Shift R5 LT 2019

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm

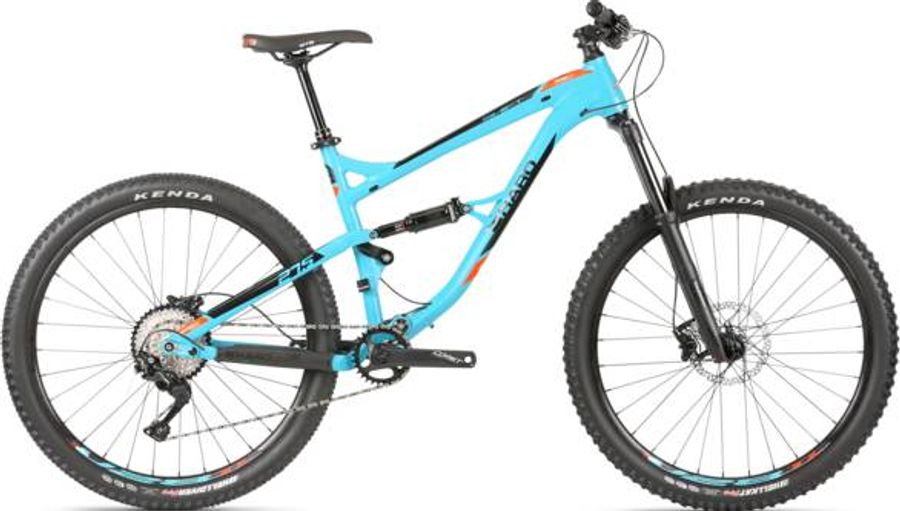

Haro Shift R5 LT 2019

About the Haro Shift R5 LT 2019

The Haro Shift R5 LT 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Haro Shift R5 LT 2019 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
WTB Ace, dual clamps, 135mm
Components
Steam
Pivit alloy Trail 0 Deg. 4 bolts, ext.: 60mm
Saddle
WTB Volt Sport w/ color accents
Headset
FPD DOZER-1160A-2 w/ 1.5" ACB bottom for 44/56mm head tube, w/ 8mm Top Cone
Seatpost
X-Fusion Manic 125 Dropper post w/ shifter-type remote, 7075 alloy, 31.6x125mmx400 / 100x360mm
Handlebar
Pivit alloy 20mm riser bar 31.8mm, 760mm, 9 Deg. sweep
Brake lever
Shimano BL-MT400
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
FSA Comet Modular w/ 30T Megatooth Crmo Chainring
Shifter
Shimano Deore M6000, Right only, 1x10-spd, w/ optical gear display
Chain guide
GW alloy, front derailleur plate mounted
Bottom bracket
FSA MegaExo sealed cartridge
Front derailleur
GW alloy chain guide, Front Der. plate mounted
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
6061-T6 series alloy dual suspended 4-Bar linkage frame, 140mm rear travel, tapered 1.5" head tube, 73mm BB shell, Enduro bearings, Boost 12mm thru-axle dropouts
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
RockShox Monarch R 205 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Model
RS-MNR-R-C3
Name
Monarch R
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
205
Wheels
Rims
Weinmann U-28TL Disc 27.5" x 32h alloy double wall rims, Tubeless Compatible
Tires
Kenda Hellkat Front, HellDiver Rear, 27.5*2.4, 60tpi, wire beads
Rear hub
Shimano MT400-B, Boost Disc alloy 32h, 15x110mm Frt & 12x148mm Rear Thru-Axles
Front hub
Shimano MT400-B, Boost Disc alloy 32h, 15x110mm Frt & 12x148mm Rear Thru-Axles

Geometry

Size XS SM MD LG
a
Seat tube length
368,0
406,0
457,0
520,0
b
Seat tube angle
70,5º
71,5º
72,2º
72,8º
c
Top tube length
567,0
587,0
617,0
632,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
67,0º
68,0º
68,0º
68,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
105,0
98,0
98,0
98,0
h
Wheelbase
1111,0
1127,0
1164,0
1184,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
20,0
20,0
20,0
20,0
k
Stack height
597,0
612,0
621,0
630,0
l
Reach
387,0
409,0
442,0
459,0
m
Standover height
758,0
760,0
768,0
787,0
x
Bottom bracket height
335,0
335,0
335,0
335,0
y
Front center
675,0
691,0
728,0
748,0
