Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
130mm

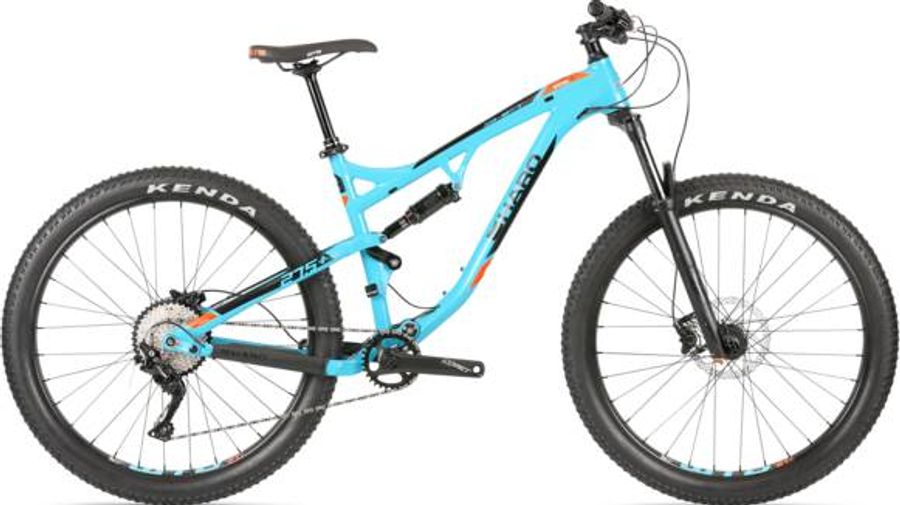

About the Haro Shift R5 Plus 2019
The Haro Shift R5 Plus 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
WTB Ace, dual clamps, 135mm
|
|---|
|
Steam
|
Pivit alloy Trail 0 Deg. 4 bolts, ext.: 60mm
|
|---|---|
|
Saddle
|
WTB Volt Sport w/ color accents
|
|
Headset
|
FPD DOZER-1160A-2 w/ 1.5" ACB bottom for 44/56mm head tube, w/ 8mm Top Cone
|
|
Seatpost
|
X-Fusion Manic 125 Dropper post w/ shifter-type remote, 7075 alloy, 31.6x125mmx400 / 100x360mm
|
|
Handlebar
|
Pivit alloy 12mm riser bar 31.8mm, 760mm, 9 Deg. sweep
|
|
Brake lever
|
Shimano BL-MT400
|
|
Brakes
|
Shimano BR-MT400
Hydraulic disc brake
2 piston
|
|
BL-MT401 BL-MT402-3A SM-RT54* SM-RT56* |
|
|
Crankset
|
FSA Comet Modular w/ 30T Megatooth Crmo Chainring
|
|---|---|
|
Shifter
|
Shimano Deore M6000, Right only, 1x10-spd, w/ optical gear display
|
|
Chain guide
|
GW alloy, front derailleur plate mounted
|
|
Bottom bracket
|
FSA MegaExo 73mm Boost sealed cartridge
|
|
Front derailleur
|
GW alloy chain guide, Front Der. plate mounted
|
|
Rear derailleur
|
Shimano Deore RD-M6000-GS
GS
10s
|
|
|
|
|
Chain
|
KMC X10
|
|
Cassette
|
Shimano Deore CS-HG500-10
|
|
Frame
|
6061-T6 series alloy dual suspended 4-Bar linkage frame, 27.5" Plus / 29" geometry, 130mm rear travel, tapered 1.5" head tube, 73mm BB shell, Enduro bearings, 12x148mm Boost thru-axle dropouts
|
|---|---|
|
Front suspension
|
RockShox Recon RL
Solo Air
|
|
|
|
|
Rear suspension
|
RockShox Monarch R
205 g
|
|
|
|
|
Rims
|
WTB ST i35 27.5" Plus rims, 40mm wide, alloy double wall, w/ TCS i35 rim tape
|
|---|---|
|
Tires
|
Kenda Havoc 27.5x2.6", 60 TPI
|
|
Rear hub
|
Pivit Boost alloy sealed bearing disc hubs, 32h, Thru axles: 15mm Front & 12mm Rear
|
|
Front hub
|
Pivit Boost alloy sealed bearing disc hubs, 32h, Thru axles: 15mm Front & 12mm Rear
|
Geometry
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
|
a
Seat tube length
|
368,0
|
406,0
|
457,0
|
520,0
|
|
b
Seat tube angle
|
70,5º
|
71,5º
|
72,2º
|
72,8º
|
|
c
Top tube length
|
567,0
|
587,0
|
617,0
|
632,0
|
|
d
Head tube length
|
100,0
|
100,0
|
110,0
|
120,0
|
|
e
Head tube angle
|
67,5º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
46,0
|
46,0
|
46,0
|
46,0
|
|
g
Trail
|
99,0
|
95,0
|
94,0
|
94,0
|
|
h
Wheelbase
|
1122,0
|
1144,0
|
1181,0
|
1201,0
|
|
i
Chainstay length
|
459,0
|
459,0
|
459,0
|
459,0
|
|
j
Bottom bracket drop
|
40,0
|
40,0
|
40,0
|
40,0
|
|
k
Stack height
|
611,0
|
613,0
|
623,0
|
632,0
|
|
l
Reach
|
382,0
|
409,0
|
441,0
|
458,0
|
|
m
Standover height
|
745,0
|
746,0
|
762,0
|
765,0
|
|
x
Bottom bracket height
|
315,0
|
315,0
|
315,0
|
315,0
|
|
y
Front center
|
666,0
|
688,0
|
725,0
|
745,0
|
