Haro Shift R7 LT 2018

MTB Trail
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,33 kg
Front travel
150mm
Rear travel
140mm

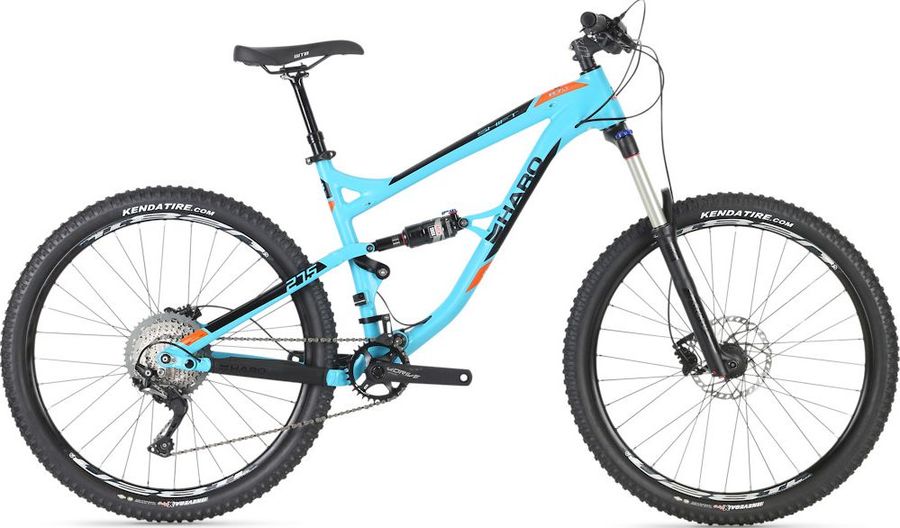

Haro Shift R7 LT 2018

About the Haro Shift R7 LT 2018

The Haro Shift R7 LT 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 14,33 kg.

Features

The Haro Shift R7 LT 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ritchey MTN Trail WCS LockRing, 135mm
Components
Steam
Ritchey MTN Trail, 3D forged, 0°, 60mm length (XS-M), 70mm length (L)
Saddle
WTB Rocket Comp
Headset
Ritchey Comp Logic Zero, press-fit
Seatpost
Tranz-X, shifter-type remote, 7075 alloy, 80mm drop (XS), 100mm drop (S-L)
Handlebar
Ritchey MTN Trail Low Riser, 20mm rise, 760mm width, 9° sweep
Brake lever
Shimano BL-M500, Servo-Wave
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
FSA V-Drive Modular, Boost compatible
Shifter
Shimano SLX, 11-speed
Chain guide
Mr. Control, alloy, direct mount plate cover and upper chain guide
Bottom bracket
FSA MegaExo, 73mm, sealed cartridge
Rear derailleur
Shimano SLX RD-M670-GS 278 g GS 10s
Average weight (g)
278
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M670-GS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
35T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
Aluminum
Front suspension
RockShox Recon Gold RL Solo Air
Color
Diffusion Black, Gloss Black
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCNG-RL-A5
Name
Recon Gold RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 80mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Monarch RL 215 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
430
Model
RS-MNR-RL-C2
Name
Monarch RL
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
Weinmann U-28TL Disc, 32 hole, alloy double wall, tubeless compatible
Tires
Kenda Nevegal X 2.35", 120tpi, Aramid bead
Spokes
Weinmann U-28TL Disc
Rear hub
Weinmann U-28TL Disc
Front hub
Weinmann U-28TL Disc

Geometry

Size 14.5" 16" 18" 20.5"
a
Seat tube length
368,0
406,0
457,0
520,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
567,0
587,0
617,0
632,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
67,0º
68,0º
68,0º
68,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
105,0
98,0
98,0
98,0
h
Wheelbase
1111,0
1127,0
1164,0
1184,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
20,0
20,0
20,0
20,0
k
Stack height
597,0
612,0
621,0
630,0
l
Reach
387,0
409,0
442,0
459,0
m
Standover height
758,0
760,0
768,0
787,0
x
Bottom bracket height
335,0
335,0
335,0
335,0
y
Front center
675,0
691,0
728,0
748,0
