Haro Shift R7 LT 2019

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm

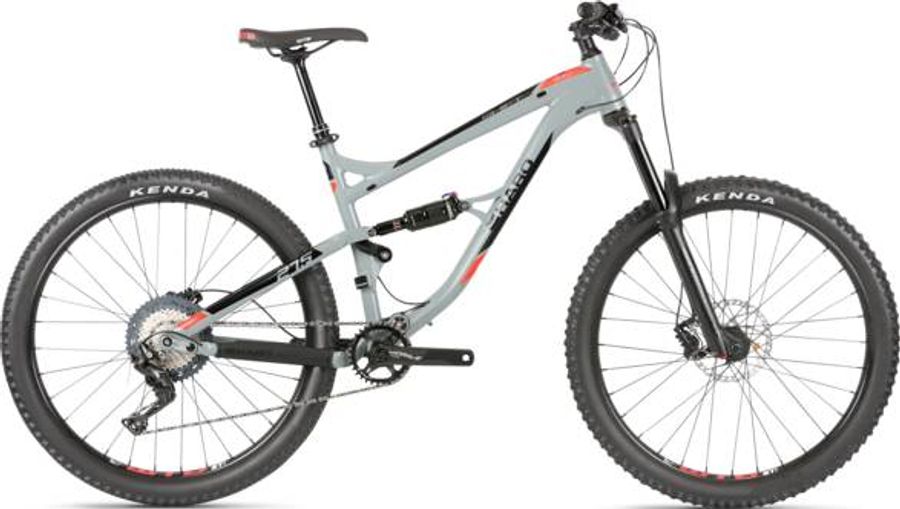

Haro Shift R7 LT 2019

About the Haro Shift R7 LT 2019

The Haro Shift R7 LT 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, e-thru axle, and hydraulic disc brakes.

Features

The Haro Shift R7 LT 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
WTB Ace, dual clamps, 135mm
Components
Steam
Pivit alloy Trail 0 Deg. 4 bolts, ext.: 60mm
Saddle
WTB Volt Comp w/ color accents
Headset
FPD DOZER-1869B w/ 1.5" ACB bottom for 44/56mm head tube, w/ 8mm Top Cone
Seatpost
X-Fusion Manic 125 Dropper post w/ shifter-type remote, 7075 alloy, 31.6x125mmx400 / 100x360mm
Handlebar
Pivit alloy 20mm riser bar 31.8mm, 760mm, 9 Deg. sweep
Brake lever
New Shimano BL-MT500, Servo-Wave
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
FSA V-Drive Modular w/ 32T Megatooth Alloy Chainring, Boost
Shifter
Shimano SLX M-7000, 1x11-spd, Right only, w/o gear display
Chain guide
GW alloy, front derailleur plate mounted
Bottom bracket
FSA MegaExo sealed cartridge
Front derailleur
GW alloy chain guide, Front Der. plate mounted
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
6061-T6 series alloy dual suspended 4-Bar linkage frame, 140mm rear travel, tapered 1.5" head tube, 73mm BB shell, Enduro bearings, Boost 12mm thru-axle dropouts
Front suspension
RockShox Sektor RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-SKTR-RL-C1
Name
Sektor RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Monarch RL 215 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
430
Model
RS-MNR-RL-C2
Name
Monarch RL
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
WTB ST i29 Disc- 27.5" x 32h alloy double wall, Tubeless Compatible
Tires
Kenda Hellkat Front, HellDiver Rear, 27.5*2.4, 60tpi, wire beads
Rear hub
Pivit alloy Boost sealed bearings disc, 15mm Front & 12mm Rear thru-axles, w/ 11-spd cassette body
Front hub
Pivit alloy Boost sealed bearings disc, 15mm Front & 12mm Rear thru-axles, w/ 11-spd cassette body

Geometry

Size XS SM MD LG
a
Seat tube length
368,0
406,0
457,0
520,0
b
Seat tube angle
70,5º
71,5º
72,2º
72,8º
c
Top tube length
567,0
587,0
617,0
632,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
67,0º
68,0º
68,0º
68,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
105,0
98,0
98,0
98,0
h
Wheelbase
1111,0
1127,0
1164,0
1184,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
20,0
20,0
20,0
20,0
k
Stack height
597,0
612,0
621,0
630,0
l
Reach
387,0
409,0
442,0
459,0
m
Standover height
758,0
760,0
768,0
787,0
x
Bottom bracket height
335,0
335,0
335,0
335,0
y
Front center
675,0
691,0
728,0
748,0
