Haro Shift R9 LT 2018

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,38 kg
Front travel
150mm
Rear travel
140mm

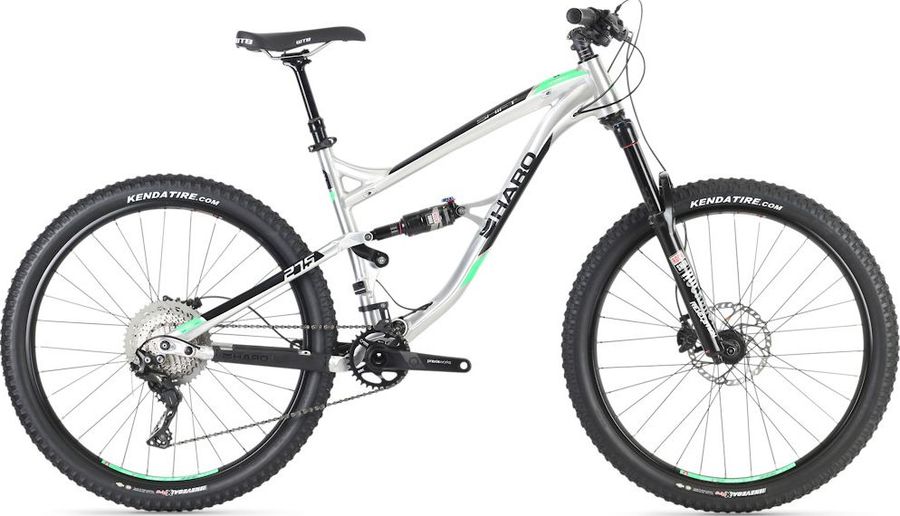

Haro Shift R9 LT 2018

About the Haro Shift R9 LT 2018

The Haro Shift R9 LT 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 14,38 kg.

Features

The Haro Shift R9 LT 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ritchey MTN Trail WCS LockRing, 135mm
Components
Steam
Ritchey MTN Trail, 3D forged, 0°, 60mm length (XS-M), 70mm length (L)
Saddle
WTB Rocket Comp
Headset
Ritchey Comp Logic Zero, press-fit
Seatpost
Tranz-X, shifter-type remote, 7075 alloy, 80mm drop (XS), 100mm drop (S-L)
Handlebar
Ritchey MTN Trail Low Riser, 20mm rise, 760mm width, 9° sweep
Brake lever
Shimano SLX
Brakes
Shimano SLX BR-M7000
Drivetrain
Crankset
Praxis Cadet, Boost
Shifter
Shimano Deore XT, 11-speed
Chain guide
Mr. Control, alloy, direct mount plate cover and upper chain guide
Bottom bracket
Praxis Cadet, 73mm sealed cartridge
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Chain
KMC X11
Frameset
Frame
Aluminum
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Monarch R 205 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Model
RS-MNR-R-C3
Name
Monarch R
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
205
Wheels
Rims
WTB STP i29 TCS, 35mm alloy double wall, tubeless compatible
Tires
Kenda Nevegal X 2.35", 120tpi, Aramid bead
Spokes
WTB STP i29 TCS
Rear hub
WTB STP i29 TCS
Front hub
WTB STP i29 TCS

Geometry

Size 14.5" 16" 18" 20.5"
a
Seat tube length
368,0
406,0
457,0
520,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
567,0
587,0
617,0
632,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
67,0º
68,0º
68,0º
68,0º
f
Rake
45,0
45,0
45,0
45,0
g
Trail
102,0
95,0
95,0
95,0
h
Wheelbase
1115,0
1131,0
1168,0
1188,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
20,0
20,0
20,0
20,0
k
Stack height
599,0
614,0
623,0
632,0
l
Reach
387,0
409,0
442,0
459,0
m
Standover height
759,0
761,0
769,0
788,0
x
Bottom bracket height
335,0
335,0
335,0
335,0
y
Front center
679,0
695,0
732,0
752,0
