Haro Shift R9 Plus 2019

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
130mm

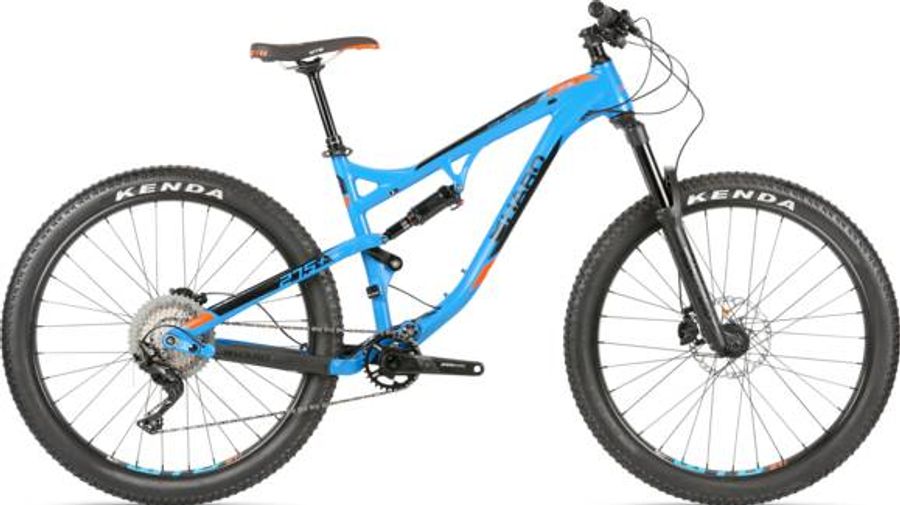

Haro Shift R9 Plus 2019

About the Haro Shift R9 Plus 2019

The Haro Shift R9 Plus 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 148, and e-thru axle.

Features

The Haro Shift R9 Plus 2019 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
WTB Ace, dual clamps, 135mm
Components
Steam
Pivit alloy Trail 0 Deg. 4 bolts, ext.: 60mm
Saddle
WTB Volt Comp w/ color accents
Headset
FPD DOZER-1869B w/ 1.5" ACB bottom for 44/56mm head tube, w/ 8mm Top Cone
Seatpost
X-Fusion Manic 125 Dropper post w/ Alloy shifter-type remote, 7075 alloy, 31.6x125mmx400 / 100x360mm
Handlebar
Pivit alloy 12mm riser bar 31.8mm, 760mm, 9 Deg. sweep
Brake lever
Shimano SLX hydraulic, BL-M7000
Brakes
Shimano SLX BR-M7000
Drivetrain
Crankset
Praxis Cadet w/ 30T 1x, Forged alloy Chainring, Boost
Shifter
Shimano Deore XT, SL-M8000-R, Right, 11-Speed, Clamp w/o gear display
Chain guide
GW alloy, front derailleur plate mounted
Bottom bracket
Praxis 30mm 73mm Boost sealed cartridge
Front derailleur
GW alloy chain guide, Front Der. plate mounted
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Chain
KMC X11
Frameset
Frame
6061-T6 series alloy dual suspended 4-Bar linkage frame, 27.5" Plus / 29" geometry, 130mm rear travel, tapered 1.5" head tube, 73mm BB shell, Enduro bearings, 12x148mm Boost thru-axle dropouts
Front suspension
RockShox Revelation Charger RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Charger
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-CHRC-A1
Name
Revelation Charger RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm straight wall aluminum, 35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Monarch RL 215 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
430
Model
RS-MNR-RL-C2
Name
Monarch RL
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
WTB ST i35 27.5" Plus rims, 40mm wide, alloy double wall, w/ TCS i35 rim tape
Tires
Kenda HAVOC 27.5x2.6" TCS Folding, 120 TPI
Rear hub
Pivit Boost alloy sealed bearing disc hubs, 32h, Thru axles: 15mm Front & 12mm Rear, 11-spd cassette compatible
Front hub
Pivit Boost alloy sealed bearing disc hubs, 32h, Thru axles: 15mm Front & 12mm Rear, 11-spd cassette compatible

Geometry

Size XS SM MD LG
a
Seat tube length
368,0
406,0
457,0
520,0
b
Seat tube angle
70,5º
71,5º
72,2º
72,8º
c
Top tube length
567,0
587,0
617,0
632,0
d
Head tube length
100,0
100,0
110,0
120,0
e
Head tube angle
67,5º
68,0º
68,0º
68,0º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
99,0
95,0
94,0
94,0
h
Wheelbase
1122,0
1144,0
1181,0
1201,0
i
Chainstay length
459,0
459,0
459,0
459,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
k
Stack height
611,0
613,0
623,0
632,0
l
Reach
382,0
409,0
441,0
458,0
m
Standover height
745,0
746,0
762,0
765,0
x
Bottom bracket height
315,0
315,0
315,0
315,0
y
Front center
666,0
688,0
725,0
745,0
