Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
15,06 kg
Front travel
120mm
Rear travel
120mm

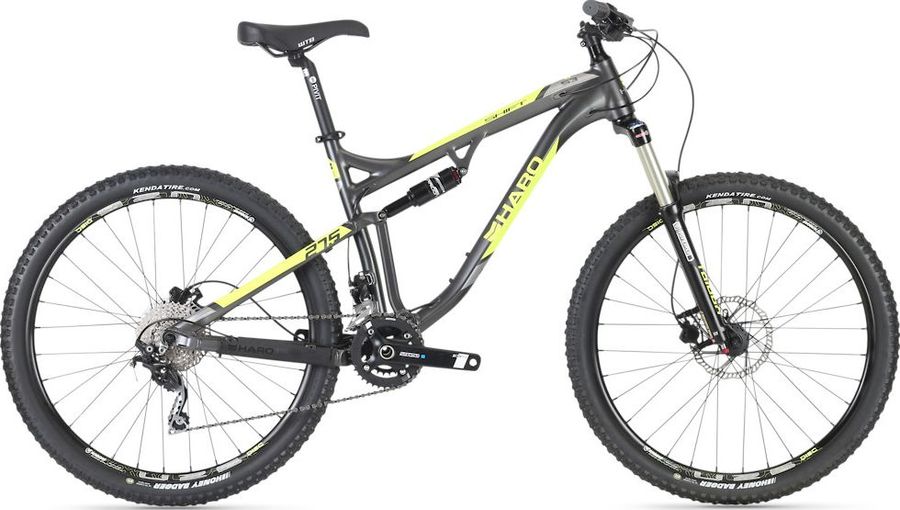

About the Haro Shift S3 2018
The Haro Shift S3 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 20 gears (2x10). Its features include hydraulic disc brakes. The bike weighs approximately 15,06 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
WTB Weirwolf
|
|---|
|
Steam
|
Pivit Trail, alloy, 0° rise, 4-bolt, 55mm length
|
|---|---|
|
Saddle
|
WTB Pure Sport
|
|
Headset
|
FPD Dozer-1048
|
|
Seatpost
|
Pivit alloy micro adjust, 350mm length
|
|
Handlebar
|
Pivit, alloy, 31.8mm clamp, 700mm (XS-S), 720mm (M-L) width, 9° sweep, 25mm rise
|
|
Brake lever
|
Tektro Auriga HD-M285
|
|
Brakes
|
Tektro HD-M285
|
|
Crankset
|
Suntour XCM-AX, 2-piece
|
|---|---|
|
Shifter
|
Shimano Deore M6000, 2x10, optical gear display
|
|
Bottom bracket
|
Suntour BB-BKA008-C, 73mm width, sealed cartridge
|
|
Front derailleur
|
Shimano Deore, down swing, top pull, direct mount
|
|
Rear derailleur
|
Shimano Deore RD-M6000-GS
GS
10s
|
|
|
|
|
Chain
|
KMC X10
|
|
Cassette
|
Shimano Deore CS-HG50-10
HG
|
|
|
|
|
Frame
|
Aluminum
|
|---|---|
|
Rear suspension
|
SR Suntour Raidon
|
|
Front suspension
|
SR Suntour Raidon XC-LO-R
|
|
Rims
|
Weinmann U-26 disc, 32 hole, alloy double wall
|
|---|---|
|
Tires
|
Kenda Honey Badger 2.2", 30tpi
|
|
Spokes
|
Weinmann U-26 disc
|
|
Rear hub
|
Weinmann U-26 disc
|
|
Front hub
|
Weinmann U-26 disc
|
Geometry
| Size | 14.5" | 16" | 18" | 20.5" |
|---|---|---|---|---|
|
a
Seat tube length
|
368,0
|
406,0
|
457,0
|
520,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
|
c
Top tube length
|
567,0
|
587,0
|
617,0
|
632,0
|
|
d
Head tube length
|
100,0
|
110,0
|
120,0
|
130,0
|
|
e
Head tube angle
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
|
f
Rake
|
46,0
|
47,0
|
46,0
|
47,0
|
|
g
Trail
|
91,0
|
90,0
|
91,0
|
90,0
|
|
h
Wheelbase
|
1097,0
|
1125,0
|
1161,0
|
1181,0
|
|
i
Chainstay length
|
442,0
|
442,0
|
442,0
|
442,0
|
|
j
Bottom bracket drop
|
30,0
|
30,0
|
30,0
|
30,0
|
|
k
Stack height
|
580,5
|
590,0
|
599,0
|
608,0
|
|
l
Reach
|
393,0
|
416,0
|
449,0
|
465,0
|
|
m
Standover height
|
740,0
|
750,0
|
756,0
|
768,0
|
|
x
Bottom bracket height
|
325,0
|
325,0
|
325,0
|
325,0
|
|
y
Front center
|
657,0
|
685,0
|
721,0
|
741,0
|
