Haro Shift S3 27.5 2019

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm

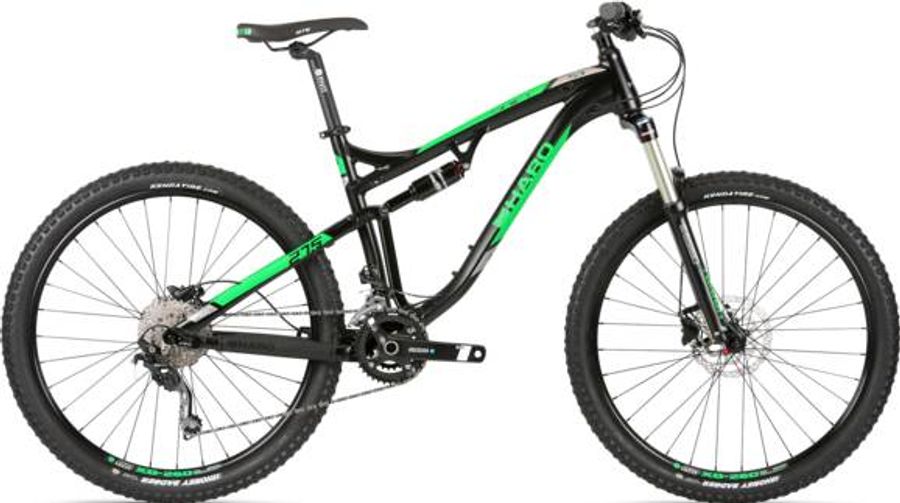

Haro Shift S3 27.5 2019

About the Haro Shift S3 27.5 2019

The Haro Shift S3 27.5 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 20 gears (2x10). Its features include hydraulic disc brakes e tapered head tube.

Features

The Haro Shift S3 27.5 2019 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Components
Steam
Pivit alloy Trail 0 Deg. 4 bolts, ext.: 60mm
Saddle
WTB Volt Sport w/ color accents
Headset
FPD DOZER-1160A-2 w/ 1.5" ACB bottom for 44/56mm head tube, w/ 8mm Top Cone
Seatpost
Pivit alloy micro adjust 31.6mm, 350mm
Handlebar
Pivit alloy 20mm riser bar 31.8mm, 700 / 720mm, 9 Deg. sweep
Brake lever
Shimano BL-MT200 hydraulic
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Suntour XCM-AX-D / 2-pc, 38/24T, 10-spd chainrings
Shifter
Shimano Deore M6000, 2x10-spd, w/ optical gear display
Bottom bracket
Suntour BB-BKA008-C, 73mm, sealed cartridge
Front derailleur
Shimano Deore M617-D, Side Swing, Front Pull, direct mount
Chain
KMC X10
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Rear derailleur
Shimano Deore RD-M610-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M610-GS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
35T
Frameset
Frame
6061-T6 series alloy dual suspended Single Pivot frame, 120mm rear travel, tapered 1.5" head tube, 73mm BB shell, Enduro bearings, 9mm Q/R rear dropouts
Rear suspension
SR Suntour Raidon
Front suspension
SR Suntour Raidon XC-LO-R
Wheels
Rims
Pivit XD-260 Disc, 27.5" x 32h alloy double wall
Tires
Kenda Honey Badger 27.5*2.20, 30tpi
Rear hub
New Shimano TX-505 alloy, Center Lock Disc, cassette 32h
Front hub
New Shimano TX-505 alloy, Center Lock Disc, cassette 32h

Geometry

Size XS SM MD LG
a
Seat tube length
368,0
406,0
457,0
520,0
b
Seat tube angle
70,5º
71,5º
72,2º
72,8º
c
Top tube length
567,0
587,0
617,0
632,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
96,0
94,0
95,0
95,0
h
Wheelbase
1097,0
1125,0
1161,0
1181,0
i
Chainstay length
442,0
442,0
442,0
442,0
j
Bottom bracket drop
20,0
20,0
20,0
20,0
k
Stack height
580,5
590,0
599,0
608,0
l
Reach
393,0
416,0
449,0
465,0
m
Standover height
740,0
750,0
756,0
768,0
x
Bottom bracket height
335,0
335,0
335,0
335,0
y
Front center
656,0
684,0
720,0
740,0
