Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
13,79 kg
Front travel
120mm

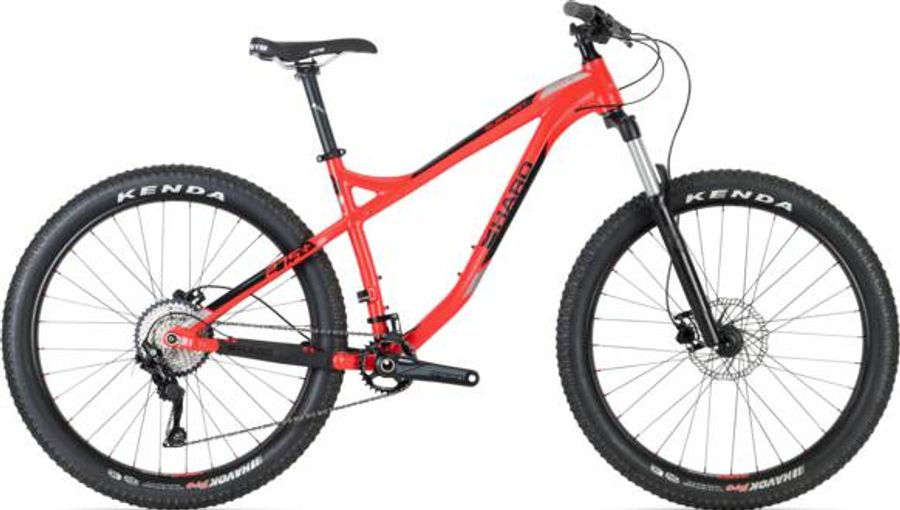

About the Haro Subvert HT3 2018
The Haro Subvert HT3 2018 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 , boost 148, and e-thru axle. The bike weighs approximately 13,79 kg.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Steam
|
New Pivit X6 alloy Trail, 3D Forged, 0 Deg. 4 bolts, ext.: 60/80mm
|
|---|---|
|
Saddle
|
WTB Pure Sport
|
|
Headset
|
FPD Dozer-1048 w/ 1.5" ACB bottom for 44/56mm Head Tube (28.6/41-39.8/56mm)
|
|
Seatpost
|
Pivit alloy micro adjust 31.6mm
|
|
Handlebar
|
New Pivit X6, 15mm rise, 750 / 785mm wide; 9 Deg. sweep
|
|
Brake lever
|
Tektro Auriga
|
|
Brakes
|
Tektro HD-M285
|
|
Crankset
|
2018 Suntour Zeron 1X AX-S-BT-30, Boost, 30T Steel Zig-Zag Chainring
|
|---|---|
|
Shifter
|
Shimano Deore M6000, Right only, 1x10-spd, w/ optical gear display
|
|
Bottom bracket
|
Suntour BB-BKA008-C, 73mm, sealed cartridge
|
|
Front derailleur
|
N/A, w/ Mr. Control alloy direct mount plate cover & CH-CM4 Chain Guide
|
|
Rear derailleur
|
Shimano Deore RD-M6000-GS
GS
10s
|
|
|
|
|
Chain
|
KMC X10
|
|
Cassette
|
Shimano Deore CS-HG500-10
|
|
Front suspension
|
HL Vaxa 868 HL/O 27.5" Plus, Tapered Steerer 1-1/8"-1.5", 110mm hub width, 120mm Travel, w/ hydraulic Lock Out, Post Mount, 15mm Thru-axle
|
|---|---|
|
Frame
|
6061-T6 series alloy Hardtail, 27.5" Plus / 29" geometry, tapered 1.5" head tube, 73mm BB shell, 12x148mm Boost thru-axle dropouts
|
|
Rims
|
WTB Scraper i35 27.5", 40mm width, alloy double wall rims w/ TCS i35 rim tape
|
|---|---|
|
Tires
|
Kenda Havoc 27.5x2.8" tires, TCS, Aramid Bead 120 tpi
|
|
Rear hub
|
Pivit Boost Disc alloy 32h, 15x110mm Frt & 12x148mm Rear Thru-Axles
|
|
Front hub
|
Pivit Boost Disc alloy 32h, 15x110mm Frt & 12x148mm Rear Thru-Axles
|
Geometry
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
|
a
Seat tube length
|
368,0
|
406,0
|
457,0
|
520,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
|
c
Top tube length
|
567,0
|
587,0
|
617,0
|
632,0
|
|
d
Head tube length
|
100,0
|
100,0
|
110,0
|
120,0
|
|
e
Head tube angle
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
|
f
Rake
|
46,0
|
46,0
|
46,0
|
46,0
|
|
g
Trail
|
93,0
|
93,0
|
94,0
|
93,0
|
|
h
Wheelbase
|
1099,0
|
1119,0
|
1155,0
|
1176,0
|
|
i
Chainstay length
|
447,0
|
447,0
|
447,0
|
447,0
|
|
j
Bottom bracket drop
|
54,0
|
54,0
|
54,0
|
54,0
|
|
k
Stack height
|
630,0
|
630,0
|
639,0
|
649,0
|
|
l
Reach
|
384,0
|
404,0
|
437,0
|
453,0
|
|
m
Standover height
|
742,0
|
747,0
|
752,0
|
780,0
|
|
x
Bottom bracket height
|
301,0
|
301,0
|
301,0
|
301,0
|
|
y
Front center
|
658,0
|
677,0
|
713,0
|
734,0
|
