Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

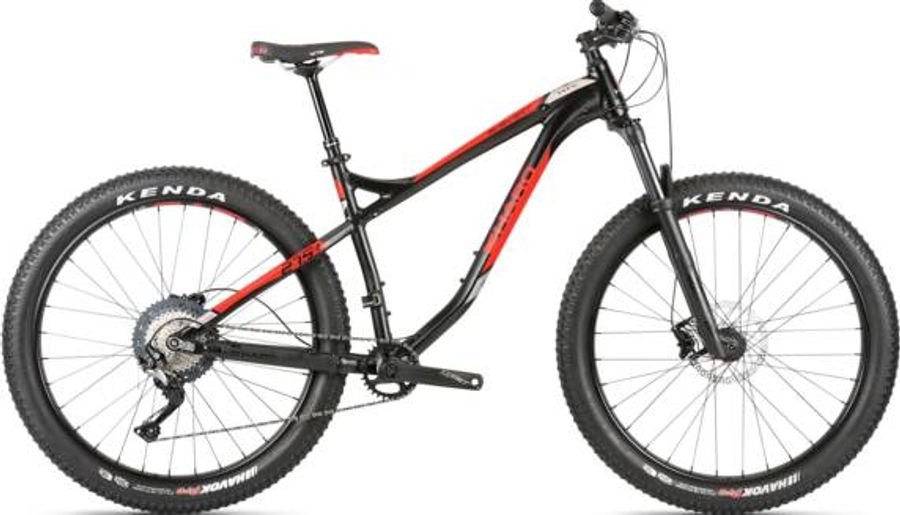

About the Haro Subvert HT5 2019
The Haro Subvert HT5 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Steam
|
Pivit alloy Trail, 3D Forged, 0 Deg. 4 bolts, ext.: 60mm
|
|---|---|
|
Saddle
|
WTB Volt Sport w/ color accents
|
|
Headset
|
FPD DOZER-1160A-2 w/ 1.5" ACB bottom for 44/56mm Head Tube, w/ 8MM top cap
|
|
Seatpost
|
X-Fusion Manic 125 Dropper post w/ shifter-type remote, 7075 alloy, 31.6x125mm
|
|
Handlebar
|
Pivit alloy, 20mm rise, 760mm wide; 9 Deg. sweep
|
|
Brake lever
|
Shimano BL-MT400
|
|
Brakes
|
Shimano BR-MT400
Hydraulic disc brake
2 piston
|
|
BL-MT401 BL-MT402-3A SM-RT54* SM-RT56* |
|
|
Crankset
|
FSA Comet Modular MegaExo Boost, 30T Megatooth Crmo Chainring
|
|---|---|
|
Shifter
|
Shimano SLX, SL-M7000, 1x11-spd, Right side only, w/o optical gear display
|
|
Bottom bracket
|
Mega Exo BB-7100 Boost
|
|
Front derailleur
|
GW alloy chain guide, Front Der. plate mounted
|
|
Cassette
|
Shimano SLX CS-M7000-11
HG
|
|
1 (11-42T) 2 (11-46T) 11-42T 11-46T 10 (11-42T) 9 (11-46T) 11-42T: 476g 11-46T: 482g |
|
|
Rear derailleur
|
Shimano SLX RD-M7000-11-SGS
|
|
Chain
|
KMC X11
|
|
Frame
|
6061-T6 series alloy Hardtail, 27.5" Plus / 29" geometry, tapered 1.5" head tube, 73mm BB shell, 12x148mm Boost thru-axle dropouts
|
|---|---|
|
Front suspension
|
RockShox Recon RL
Solo Air
|
|
|
|
|
Rims
|
WTB ST i35 27.5" TCS 2, 40mm width, alloy double wall rims w/ TCS i35 rim tape
|
|---|---|
|
Tires
|
Kenda Havoc 27.5x2.8", TCS, Aramid Bead 120 tpi
|
|
Rear hub
|
Pivit Boost Disc alloy 32h, Sealed Bearings, 15x110mm Frt & 12x148mm Rear Thru-Axles
|
|
Front hub
|
Pivit Boost Disc alloy 32h, Sealed Bearings, 15x110mm Frt & 12x148mm Rear Thru-Axles
|
Geometry
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
|
a
Seat tube length
|
368,0
|
406,0
|
457,0
|
520,0
|
|
b
Seat tube angle
|
71,5º
|
71,5º
|
72,2º
|
72,8º
|
|
c
Top tube length
|
567,0
|
587,0
|
617,0
|
632,0
|
|
d
Head tube length
|
100,0
|
100,0
|
110,0
|
120,0
|
|
e
Head tube angle
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
86,0
|
85,0
|
85,0
|
84,0
|
|
h
Wheelbase
|
1104,0
|
1125,0
|
1161,0
|
1182,0
|
|
i
Chainstay length
|
447,0
|
447,0
|
447,0
|
447,0
|
|
j
Bottom bracket drop
|
56,0
|
56,0
|
56,0
|
56,0
|
|
k
Stack height
|
628,0
|
628,0
|
637,0
|
647,0
|
|
l
Reach
|
384,0
|
404,0
|
437,0
|
453,0
|
|
m
Standover height
|
742,0
|
747,0
|
752,0
|
780,0
|
|
x
Bottom bracket height
|
299,0
|
299,0
|
299,0
|
299,0
|
|
y
Front center
|
663,0
|
684,0
|
720,0
|
741,0
|
