BikeWise

Haro Subvert HT7 2018

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
13,79 kg
Front travel
130mm

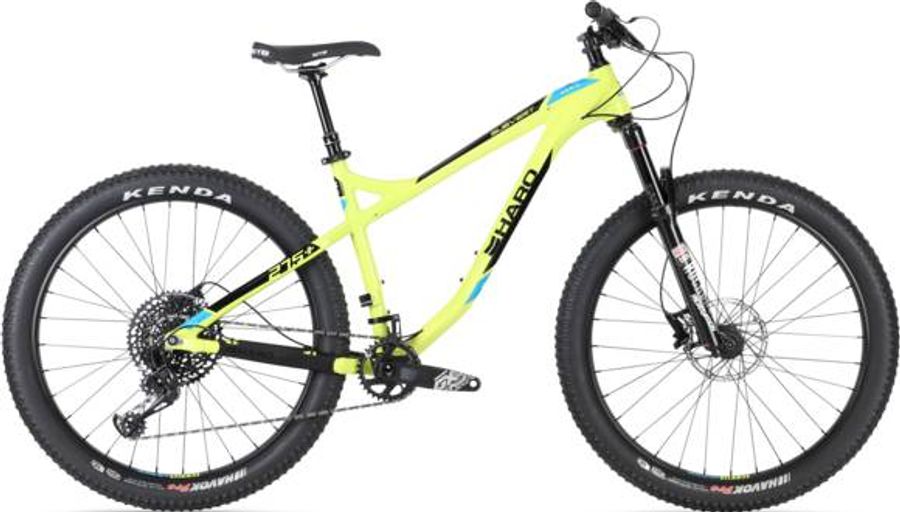

Haro Subvert HT7 2018

About the Haro Subvert HT7 2018

The Haro Subvert HT7 2018 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 148, and e-thru axle. The bike weighs approximately 13,79 kg.

Features

The Haro Subvert HT7 2018 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Components
Steam
New Pivit X6 alloy Trail, 3D Forged, 0 Deg. 4 bolts, ext.: 60/80mm
Saddle
WTB Rocket Comp
Headset
FPD Dozer-1048 w/ 1.5" ACB bottom for 44/56mm Head Tube
Seatpost
TranzX Internal Dropper w/ shifter-type remote, 7075 alloy, 31.6x100x360MM / 80x315MM for 14.5" frame
Handlebar
New Pivit X6, 15mm rise, 750 / 785mm wide; 9 Deg. sweep
Brake lever
SRAM Level T hydraulic
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
SRAM GX Eagle 24mm X-SYNC 32T
Shifter
SRAM GX Eagle 12-spd Trigger
Bottom bracket
GXP XR MTB 73mm, Boost
Front derailleur
N/A, w/ Mr. Control alloy direct mount plate cover & CH-CM4 Chain Guide
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
6061-T6 series alloy Hardtail, 27.5" Plus / 29" geometry, tapered 1.5" head tube, 73mm BB shell, 12x148mm Boost thru-axle dropouts
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
WTB Scraper i35 27.5" Plus, 40mm width, alloy double wall rims w/ TCS i35 rim tape
Tires
Kenda Havoc 27.5x2.8", TCS, Aramid Bead 120 tpi
Rear hub
Pivit Boost alloy disc hubs, 32h, sealed bearings, 15mm Front & 12mm Rear Thru-Axles, 12-spd X-Drive hub
Front hub
Pivit Boost alloy disc hubs, 32h, sealed bearings, 15mm Front & 12mm Rear Thru-Axles, 12-spd X-Drive hub

Geometry

Size XS SM MD LG
a
Seat tube length
368,0
406,0
457,0
520,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
567,0
587,0
617,0
632,0
d
Head tube length
100,0
100,0
110,0
120,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
91,0
91,0
91,0
91,0
h
Wheelbase
1099,0
1119,0
1155,0
1176,0
i
Chainstay length
447,0
447,0
447,0
447,0
j
Bottom bracket drop
56,0
56,0
56,0
56,0
k
Stack height
623,0
623,0
632,0
641,0
l
Reach
386,0
406,0
438,0
455,0
m
Standover height
739,0
744,0
749,0
777,0
x
Bottom bracket height
299,0
299,0
299,0
299,0
y
Front center
658,0
678,0
714,0
735,0
