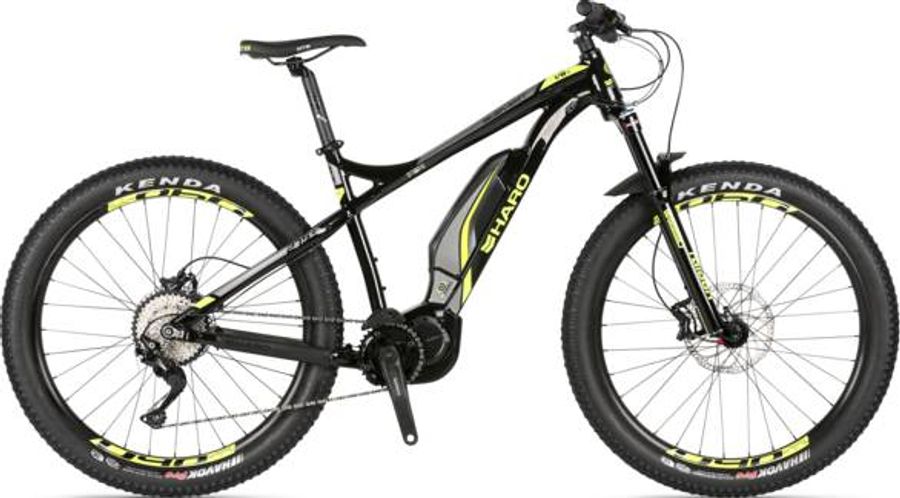

Haro Subvert i/O 5 2019
The Haro Subvert i/O 5 2019 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm
About the Haro Subvert i/O 5 2019
The Haro Subvert i/O 5 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include hydraulic disc brakes, tapered head tube, and tubeless ready.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
New Pivit 3D Forged alloy 60mm
|
|---|---|
|
Saddle
|
WTB Volt Sport Wide 150mm
|
|
Battery
|
Shimano STePS E8010, 500Wh
|
|
Headset
|
FPD Dozer 1-1/8"-1.5", w/ Bottom AC Bearing, 8mm Cone
|
|
Seatpost
|
Pivit Light, 2 Bolts, Forged alloy, 31.6x 350 / 400mm
|
|
Handlebar
|
New Pivit Alloy riser bar, 760mm wide; 20mm rise
|
|
Brake lever
|
New Tektro HD-M735
|
|
Brakes
|
Tektro HD-M735
|
|
Crankset
|
Shimano E7000 forged, 34T Chainring
|
|---|---|
|
Motor
|
Shimano STePS E7000, 250 W, 60Nm Torque
|
|
Shifter
|
Shimano Deore RapidFire+ 10-spd
|
|
Rear derailleur
|
Shimano Deore RD-M6000-GS
GS
10s
|
|
|
|
|
Chain
|
KMC e10 Sport
|
|
Cassette
|
Shimano Deore CS-HG500-10
|
|
Frame
|
Subvert I/O X6 Aluminum frame for Shimano STePS E7000, Tapered head tube
|
|---|---|
|
Front suspension
|
SR Suntour Raidon 34
|
|
Rims
|
Weinmann U-40 TL, Tubeless Ready, 27.5"x40mm, Double Wall
|
|---|---|
|
Tires
|
Kenda HAVOC 27.5x2.8", 120tpi, Aramid beads, Tubeless Compatible
|
|
Rear hub
|
Pivit Alloy disc Boost, 32h cassette, Sealed Bearings, w/ Front & Rear Thru-Axle
|
|
Front hub
|
Pivit Alloy disc Boost, 32h cassette, Sealed Bearings, w/ Front & Rear Thru-Axle
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
368,0
|
410,0
|
457,0
|
521,0
|
559,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
572,0
|
587,0
|
617,0
|
632,0
|
642,0
|
|
d
Head tube length
|
100,0
|
110,0
|
120,0
|
130,0
|
140,0
|
|
e
Head tube angle
|
67,0º
|
67,0º
|
67,0º
|
67,0º
|
67,0º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
98,0
|
99,0
|
99,0
|
97,0
|
97,0
|
|
h
Wheelbase
|
1171,0
|
1187,0
|
1218,0
|
1235,0
|
1251,0
|
|
i
Chainstay length
|
459,0
|
459,0
|
459,0
|
459,0
|
459,0
|
|
j
Bottom bracket drop
|
20,0
|
20,0
|
20,0
|
20,0
|
20,0
|
|
k
Stack height
|
602,0
|
611,0
|
620,0
|
629,0
|
638,0
|
|
l
Reach
|
415,0
|
428,0
|
455,0
|
467,0
|
479,0
|
|
m
Standover height
|
770,0
|
777,0
|
777,0
|
796,0
|
820,0
|
|
x
Bottom bracket height
|
335,0
|
335,0
|
335,0
|
335,0
|
335,0
|
|
y
Front center
|
713,0
|
729,0
|
760,0
|
777,0
|
793,0
|
