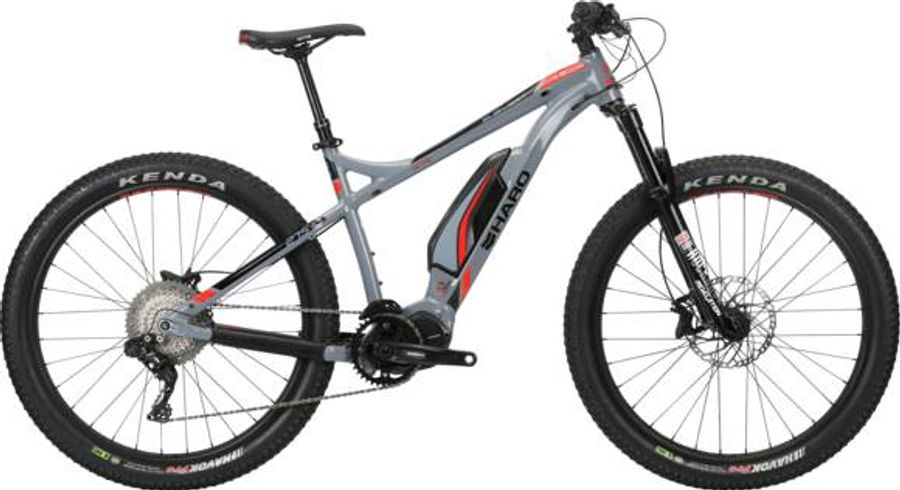

Haro Subvert i/O 9 2019
The Haro Subvert i/O 9 2019 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano XT Di2
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
130mm
About the Haro Subvert i/O 9 2019
The Haro Subvert i/O 9 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT Di2 drivetrain of 11 gears (1x11). Its features include dropper seatpost, hydraulic disc brakes, and tapered head tube.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
WTB Ace, dual clamps, 135mm
|
|---|
|
Steam
|
Race Face Aeffect R 35mm Forged short alloy
|
|---|---|
|
Saddle
|
WTB Volt Comp Wide 150mm
|
|
Battery
|
Shimano STePS E8010, 500Wh
|
|
Headset
|
FPD Dozer 1-1/8"-1.5", w/ Bottom AC Bearing, 8mm Cone
|
|
Seatpost
|
X-Fusion Manic 125 Dropper post w/ shifter-type remote, 7075 alloy, 31.6x125mmx400 / 100x360mm
|
|
Handlebar
|
Race Face Ride Alloy 35mm bar, 20mm rise
|
|
Brake lever
|
Shimano BL-MT501 Hydraulic
|
|
Brakes
|
Shimano BR-MT520
Hydraulic disc brake
4 piston
|
|
|
|
|
Crankset
|
Shimano E8000, forged, 38T Chainring
|
|---|---|
|
Motor
|
Shimano STePS E8000, 250 W, 70Nm Torque
|
|
Shifter
|
Shimano XT Di2 11-spd Switch
|
|
Chain guide
|
Shimano
|
|
Cassette
|
Shimano Deore XT CS-M8000
HG
|
|
11-42T 11-46T 11-42T: 434g 11-46T: 437g |
|
|
Rear derailleur
|
Shimano Deore XT RD-M8050 Di2
|
|
Chain
|
KMC X11
|
|
Frame
|
Subvert I/O X6 Aluminum frame for Shimano STePS E8000, Tapered head tube
|
|---|---|
|
Front suspension
|
RockShox Revelation RC
DebonAir
|
|
|
|
|
Rims
|
New WTB ST i35 TCS 2.0, Tubeless Ready, 27.5"x40mm, Double Wall
|
|---|---|
|
Tires
|
Kenda HAVOC 27.5x2.8", 120tpi, Aramid beads, Pro EMC, Tubeless Compatible
|
|
Rear hub
|
Pivit Alloy disc Boost, E-Bike specific, 32h cassette, Sealed Bearings, w/ Front & Rear Thru-Axle
|
|
Front hub
|
Pivit Alloy disc Boost, E-Bike specific, 32h cassette, Sealed Bearings, w/ Front & Rear Thru-Axle
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
368,0
|
406,0
|
457,0
|
520,0
|
559,0
|
|
b
Seat tube angle
|
71,5º
|
71,5º
|
72,2º
|
72,2º
|
72,2º
|
|
c
Top tube length
|
567,0
|
587,0
|
617,0
|
632,0
|
642,0
|
|
d
Head tube length
|
100,0
|
100,0
|
110,0
|
120,0
|
130,0
|
|
e
Head tube angle
|
67,5º
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
46,0
|
46,0
|
46,0
|
46,0
|
46,0
|
|
g
Trail
|
95,0
|
92,0
|
92,0
|
92,0
|
92,0
|
|
h
Wheelbase
|
1123,0
|
1137,0
|
1174,0
|
1190,0
|
1206,0
|
|
i
Chainstay length
|
467,0
|
467,0
|
467,0
|
467,0
|
467,0
|
|
j
Bottom bracket drop
|
56,0
|
56,0
|
56,0
|
56,0
|
56,0
|
|
k
Stack height
|
629,0
|
632,0
|
641,0
|
650,0
|
660,0
|
|
l
Reach
|
373,0
|
392,0
|
425,0
|
437,0
|
449,0
|
|
m
Standover height
|
748,0
|
750,0
|
752,0
|
770,0
|
799,0
|
|
x
Bottom bracket height
|
299,0
|
299,0
|
299,0
|
299,0
|
299,0
|
|
y
Front center
|
662,0
|
676,0
|
713,0
|
729,0
|
744,0
|
