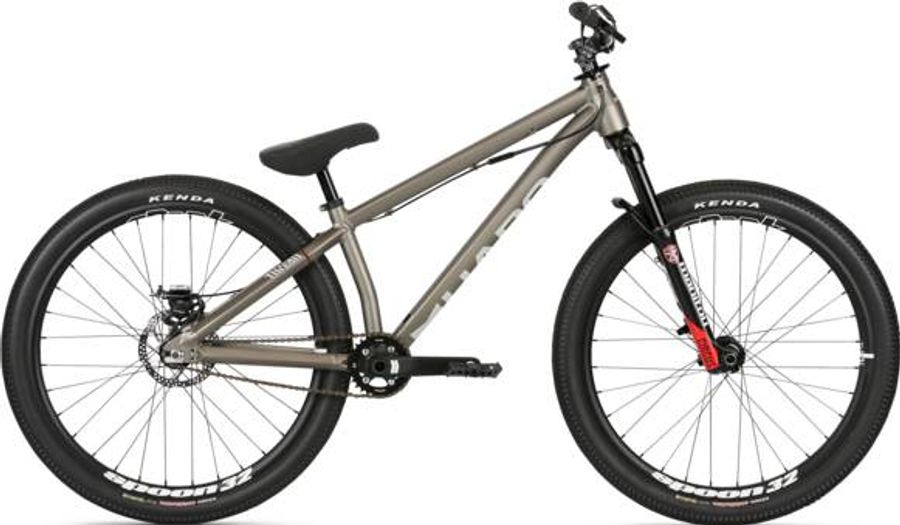

Haro Thread Two 2019
Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Front travel
100mm
About the Haro Thread Two 2019
The Haro Thread Two 2019 is a Hardtail Mountain Bike with a alloy frame. Its features include e-thru axle, hydraulic disc brakes, and tapered head tube.
Features
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
Velo Lock-on
|
|---|---|
|
Pedals
|
Premium Slim Nylon w/ sealed bearings
|
|
Steam
|
FSA Gradient 1-1/8", 45mm Ext.
|
|---|---|
|
Saddle
|
Haro Padded Slim w/ Crmo rails
|
|
Headset
|
FSA # 51, 1-1/8"-1.5" Alloy, w/ top & lower AC Bearings
|
|
Seatpost
|
Pivit Alloy 31.6mm, 2-Bolt
|
|
Handlebar
|
FSA Gradient Riser, 40mm Rise, 9 Deg. Backsweep, 6 deg. Upsweep; 31.8mm Clamp
|
|
Brake lever
|
Odyssey Trigger for Single Gyro upper cable
|
|
Brakes
|
TRP HY/RD-C
|
|
Crankset
|
Haro Alloy 2-pc, cold forged, 30t NW chainring
|
|---|---|
|
Cassette
|
14T Crmo Cog
|
|
Bottom bracket
|
4 x Sealed bearing
|
|
Chain
|
KMC Z1
|
|
Frame
|
Haro Full X6 Alloy Thread frame w/ internal head tube, Euro BB shell & ISCG Mount
|
|---|---|
|
Front suspension
|
Manitou Circus Expert
|
|
Rims
|
Spank Ind. Spoon alloy doublewall, 32h
|
|---|---|
|
Tires
|
Kenda Small Block 8 26x2.35" Front & 26"x2.10" Rear, 60 TPI
|
|
Rear hub
|
Pivit sealed bearing alloy disc, singlespeed cassette w/ 20mm front thru axle, 32h
|
|
Front hub
|
Pivit sealed bearing alloy disc, singlespeed cassette w/ 20mm front thru axle, 32h
|
Geometry
| Size | One Size |
|---|---|
|
a
Seat tube length
|
320,0
|
|
b
Seat tube angle
|
69,0º
|
|
c
Top tube length
|
598,0
|
|
d
Head tube length
|
115,0
|
|
e
Head tube angle
|
68,5º
|
|
f
Rake
|
26,0
|
|
g
Trail
|
107,0
|
|
h
Wheelbase
|
1057,0
|
|
i
Chainstay length
|
395,0
|
|
j
Bottom bracket drop
|
-15,0
|
|
k
Stack height
|
559,0
|
|
l
Reach
|
415,0
|
|
m
Standover height
|
697,0
|
|
x
Bottom bracket height
|
358,0
|
|
y
Front center
|
662,0
|
