Ibis DV9 GX 2020

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
1,2 kg
Front travel
120mm

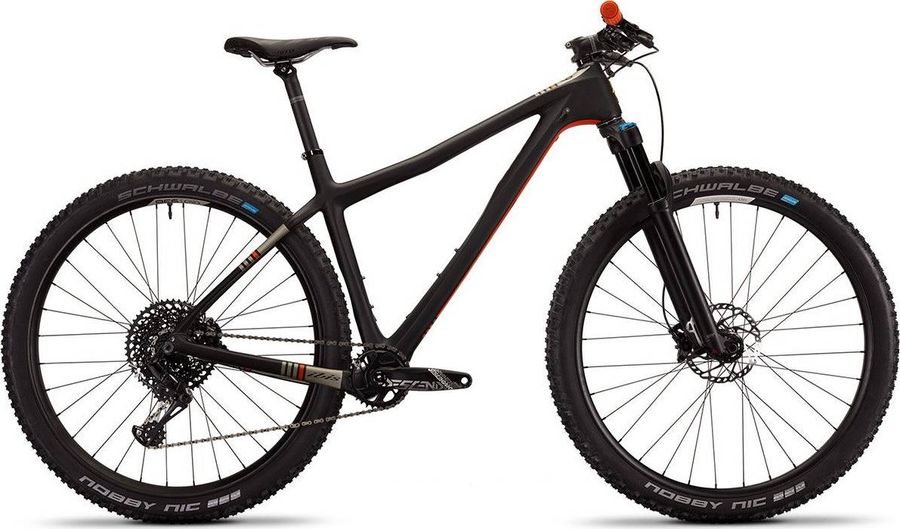

Ibis DV9 GX 2020

About the Ibis DV9 GX 2020

The Ibis DV9 GX 2020 is a Hardtail Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 1,2 kg.

Features

The Ibis DV9 GX 2020 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Lizard Skins Charger Evo
Components
Steam
Ibis 31.8mm (40, 50, 60, 70, 80, 90mm)
Saddle
WTB Silverado 142mm
Headset
Cane Creek 40 ZS44/EC49
Seatpost
Ibis 31.6 Aluminum, 350mm
Handlebar
Ibis 800mm Carbon; Lo-Fi (S–M), Hi Fi Bar (L–XL)
Discs
Shimano SM-RT66 180/160
Brakes
Shimano Deore BR-M6100 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Color
Secondary color
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad standard
G03S Resin
Pad standard
J03A Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
SM-RT64
SM-RT66
Drivetrain
Crankset
SRAM Descendant Alloy 175, DUB spindle, 32t Alloy Ring (170mm for S/M, 175mm for L/XL)
Shifter
SRAM GX Eagle
Bottom bracket
SRAM DUB BSA
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon Fiber Monocoque
Front suspension
Fox 34 Float Rhythm
Wheels
Rims
Ibis S35 Aluminum / 29" / Ibis Hubs (Ibis 933 wheelset with Step Cast fork upgrade)
Tires
Schwalbe Hans Dampf/Nobby Nic Apex TL-Easy 29x2.6 (Schwalbe Racing Ray/Thunder Burt 29"x2.25” with Step Cast fork upgrade)

Geometry

Size SM MD LG XL
a
Seat tube length
368,0
432,0
482,0
533,0
b
Seat tube angle
72,0º
72,0º
72,0º
72,0º
c
Top tube length
584,0
609,0
630,0
660,0
d
Head tube length
92,0
110,0
116,0
133,0
e
Head tube angle
67,4º
67,4º
67,4º
67,4º
f
Rake
-
-
-
-
g
Trail
99,0
99,0
99,0
99,0
h
Wheelbase
1112,0
1138,0
1159,0
1194,0
i
Chainstay length
441,0
441,0
441,0
441,0
j
Bottom bracket drop
54,0
54,0
54,0
54,0
k
Stack height
622,0
639,0
645,0
660,0
l
Reach
386,0
407,0
424,0
451,0
m
Standover height
699,0
769,0
769,0
794,0
x
Bottom bracket height
320,0
320,0
320,0
320,0
y
Front center
-
-
-
-
