Ibis DV9 NX 2020

MTB Trail

Groupset

SRAM NX Eagle

Frame material

Carbon

Wheel size

29"

Suspension type

Hardtail

Weight

1,2 kg

Front travel

120mm

About the Ibis DV9 NX 2020

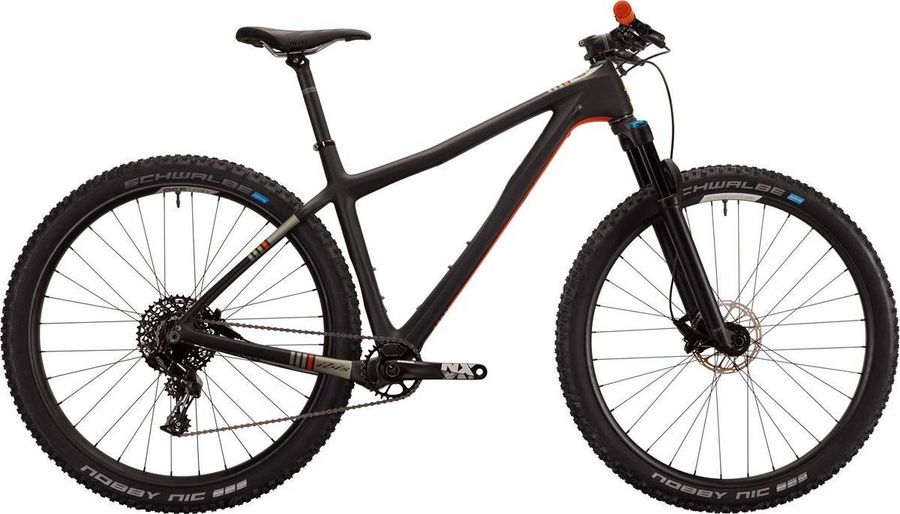

The Ibis DV9 NX 2020 is a Hardtail Trail Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 1,2 kg.

Features

The Ibis DV9 NX 2020 has 2 features listed below.

Boost 110 More info

Hydraulic disc brakes More info

Specifications

Acessories
Grip	Lizard Skins Charger Evo

Components
Steam	Ibis 31.8mm (40, 50, 60, 70, 80, 90mm)
Saddle	WTB Silverado Pro 142mm width
Headset	Cane Creek 40 ZS44/EC49
Seatpost	Ibis 31.6 Aluminum, 350mm
Handlebar	Ibis 780mm Alloy
Discs	SRAM Centerline 180 / 160 rotors
Brakes	SRAM Level T Hydraulic 410 g
Application MTB Blade material Aluminum - Stamped Bracket disk brake Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P Brake type Hydraulic Color Gloss Black Model DB-LVL-T-A1 Name Level T Orientation Front, L/F, L/R, R/F, R/R, Rear Pad type disc Steel-backed metal sintered, Steel-backed organic Weight based on Direct Mount, 800mm hose, 160mm CL Rotor (TARGET) Weight 410

Drivetrain
Crankset	SRAM NX Eagle, DUB spindle, 32t Steel Ring (170mm for S/M, 175mm for L/XL)
Shifter	SRAM NX Eagle
Bottom bracket	SRAM DUB BSA
Chain	SRAM NX Eagle 252 g
Chain connector PowerLock Chain length links 126 links Color inner link Grey Color outer link Grey Compat speed 12s-Eagle Inner link finish Polished Model CN-EAGL-NX-A1 Name NX Eagle Chain Outer link finish Polished Pin variant Solid Pin Weight based on 114 links Weight 252
Rear derailleur	SRAM NX Eagle 12s 339 g
Cable pull ratio X-actuation Cage Long Cage material Steel Color Black Max tooth 50 Model RD-NX-1-B1 Name NX Eagle Rear Derailleur Pulley bearings material Steel Speed 12s Weight 339
Cassette	SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete Black Cog sizes 11-50t:11,13,15,17,19,22,25,28,32,36,42,50 Gearing 11-50t Model CS-PG-1230-A1 Name PG-1230 Eagle Cassette Speed 12s Technology cassete PG Weight 615

Frameset
Frame	Carbon Fiber Monocoque
Front suspension	Fox 34 Float Rhythm

Wheels
Rims	Ibis S35 Aluminum / 29" / Ibis Hubs (Ibis 933 wheelset with Step Cast fork upgrade)
Tires	Schwalbe Hans Dampf (front) Nobby Nic (rear) 29 x 2.6 (Schwalbe Racing Ray/Thunder Burt 29"x2.25” with Step Cast fork upgrade)
