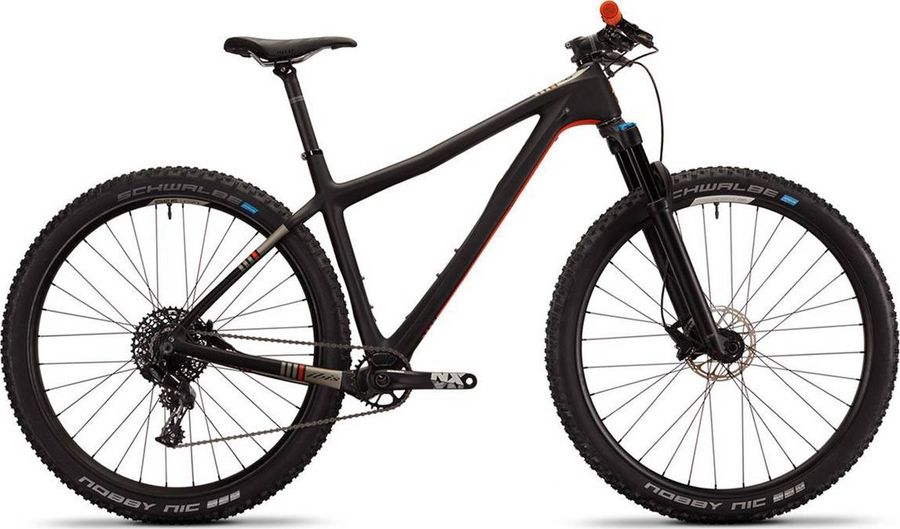

Ibis DV9 X01 AXS 2020

MTB Trail

Groupset

SRAM X01 Eagle AXS

Frame material

Carbon

Wheel size

29"

Suspension type

Hardtail

Weight

1,2 kg

Front travel

120mm

About the Ibis DV9 X01 AXS 2020

The Ibis DV9 X01 AXS 2020 is a Hardtail Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle AXS drivetrain of 12 gears (1x12). Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 1,2 kg.

Features

The Ibis DV9 X01 AXS 2020 has 2 features listed below.

Boost 110 More info

Hydraulic disc brakes More info

Specifications

Acessories
Grip	Lizard Skins Charger Evo

Components
Steam	Thomson Elite X4 Stem (40, 50, 60, 70, 80, 90, 100, 110)
Saddle	WTB Silverado Pro 142mm width
Headset	Cane Creek 40 ZS44/EC49
Seatpost	Thomson 31.6 Elite, 367mm
Handlebar	Ibis 800mm Carbon (30mm rise)
Discs	Shimano SM-RT86 180 / 160
Brakes	Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g) 403 (BL-M8000) Brake hose color kit Black Brake hose kit SM-BH90-SB Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Series color Hose joint Banjo ICE TECHNOLOGIES pad compatible caliper Model BR-M8000 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad option G04S Metal Pad option J04C Metal Pad standard G02A Resin G03A Resin Pad standard J02A Resin J03A Resin Pad mount Pad axle Piston 2 Piston material Ceramic Recommended brake lever BL-M8000 BL-T8000 Recommended disc brake rotor RT-MT800 SM-RT86

Drivetrain
Crankset	SRAM X01 Eagle, DUB spindle, 32t Alloy Ring (170mm or 175mm)
Shifter	SRAM X01 AXS 2 Button Eagle Triggers
Bottom bracket	SRAM DUB BSA
Rear derailleur	SRAM X01 Eagle AXS 12s
Cage material Aluminum Color Black, Grey, Lunar, Red Max tooth 52 Model RD-X0-1E-A1 Name X01 Eagle AXS Derailleur Pulley bearings material Steel Speed 12s
Chain	SRAM X01 Eagle 239 g
Chain connector PowerLock Chain length links 126 links Color inner link Silver Color outer link Silver Compat speed 12s-Eagle Inner link finish Chrome Plated Model CN-EAGL-X01-A1 Name X01 Eagle Chain Outer link finish Nickel Pin variant Hollow Pin Weight based on 114 links Weight 239
Cassette	SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete Black Cog sizes 10-52t:10,12,14,16,18,21,24,28,32,36,42,52 Gearing 10-52t Model CS-XG-1295-B1 Name XG-1295 Eagle Cassette Speed 12s Technology cassete XG Weight 350

Frameset
Frame	Carbon Fiber Monocoque
Front suspension	Fox 34 Float Rhythm

Wheels
Rims	Ibis S35 Aluminum / 29" / Ibis Hubs (Ibis 933 wheelset with Step Cast fork upgrade)
Tires	Schwalbe Hans Dampf (front) Nobby Nic (rear) 29 x 2.6 (Schwalbe Racing Ray/Thunder Burt 29"x2.25” with Step Cast fork upgrade)
