BikeWise

Ibis DV9 XT 2020

MTB Trail
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
1,2 kg
Front travel
120mm

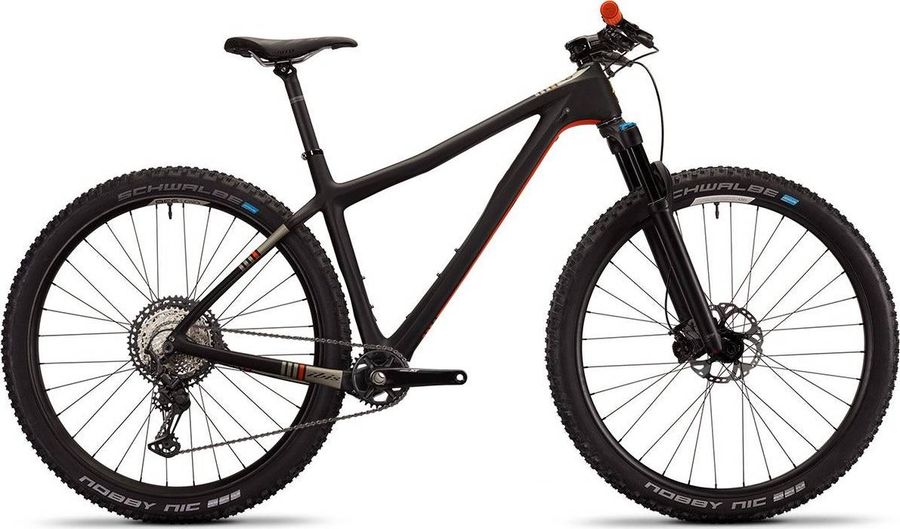

Ibis DV9 XT 2020

About the Ibis DV9 XT 2020

The Ibis DV9 XT 2020 is a Hardtail Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 1,2 kg.

Features

The Ibis DV9 XT 2020 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Lizard Skins Charger Evo
Components
Steam
Industry Nine A318 (30, 40, 50mm)
Saddle
WTB Silverado 142mm
Headset
Cane Creek 40 ZS44/EC49
Seatpost
Ibis 31.6 Aluminum, 350mm
Handlebar
Ibis 800mm Carbon; Lo-Fi (S–M), Hi Fi Bar (L–XL)
Discs
Shimano SM-RT86 180/160
Brakes
Shimano Deore XT BR-M8100 392 (BL-M8100) g Hydraulic disc brake 2 piston
Average weight (g)
392 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03A Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Shimano XT M8100 170 or 175mm, 24mm spindle, 32t Alloy Ring
Shifter
Shimano XT M8100 12 speed
Bottom bracket
Shimano XT MT800
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Frameset
Frame
Carbon Fiber Monocoque
Front suspension
Fox 34 Float Rhythm
Wheels
Rims
Ibis S35 Aluminum / 29" / Ibis Hubs (Ibis 933 wheelset with Step Cast fork upgrade)
Tires
Schwalbe Hans Dampf/Nobby Nic Apex TL-Easy 29x2.6 (Schwalbe Racing Ray/Thunder Burt 29"x2.25” with Step Cast fork upgrade)

Geometry

Size SM MD LG XL
a
Seat tube length
368,0
432,0
482,0
533,0
b
Seat tube angle
72,0º
72,0º
72,0º
72,0º
c
Top tube length
584,0
609,0
630,0
660,0
d
Head tube length
92,0
110,0
116,0
133,0
e
Head tube angle
67,4º
67,4º
67,4º
67,4º
f
Rake
-
-
-
-
g
Trail
99,0
99,0
99,0
99,0
h
Wheelbase
1112,0
1138,0
1159,0
1194,0
i
Chainstay length
441,0
441,0
441,0
441,0
j
Bottom bracket drop
54,0
54,0
54,0
54,0
k
Stack height
622,0
639,0
645,0
660,0
l
Reach
386,0
407,0
424,0
451,0
m
Standover height
699,0
769,0
769,0
794,0
x
Bottom bracket height
320,0
320,0
320,0
320,0
y
Front center
-
-
-
-
