Ibis DV9 XX1 AXS 2020

MTB Cross Country
Groupset
SRAM XX1 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
1,2 kg
Front travel
100mm

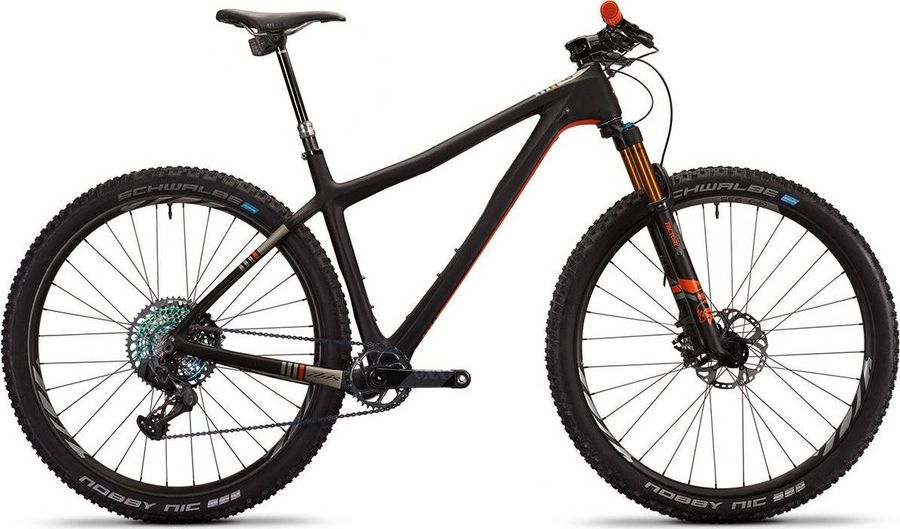

Ibis DV9 XX1 AXS 2020

About the Ibis DV9 XX1 AXS 2020

The Ibis DV9 XX1 AXS 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle AXS drivetrain of 12 gears (1x12). Its features include boost 110 , hydraulic disc brakes, and remote lockout. The bike weighs approximately 1,2 kg.

Features

The Ibis DV9 XX1 AXS 2020 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Lizard Skins Charger Evo
Components
Steam
Enve Mtn Stem 31.8mm (35, 50, 65mm)
Saddle
WTB Silverado 142mm
Headset
Cane Creek 40 ZS44/EC49
Seatpost
Ibis 31.6 Aluminum, 350mm
Handlebar
Enve M6 Bar 780mm
Discs
Shimano RT-MT900 180/160
Brakes
Shimano XTR BR-M9100 312 (BL-M9100) g Hydraulic disc brake 2 piston
Average weight (g)
312 (BL-M9100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Anodizing
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Straight
J-Kit spec for OEM
Model
BR-M9100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
K03Ti Resin pad w/o fin (w/ titanium back plate)
Pad standard
K04Ti Metal pad w/o fin (w/ titanium back plate)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
SRAM XX1 Eagle 170 or 175mm, DUB spindle, 32t Alloy Ring
Shifter
SRAM XX1 Eagle AXS Triggers
Bottom bracket
SRAM DUB BSA
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM XX1 Eagle AXS 12s
Cage material
Carbon
Color
Black
Max tooth
52
Model
RD-XX-1E-A1
Name
XX1 Eagle AXS derailleur
Pulley bearings material
Steel
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
Carbon Fiber Monocoque
Front suspension
Fox 32 Float Factory
Wheels
Rims
Ibis S28 Carbon Rims / 29" / Industry 9 Hydra Hubs
Tires
Schwalbe Hans Dampf/Nobby Nic Apex TL-Easy 29x2.6

Geometry

Size SM MD LG XL
a
Seat tube length
368,0
432,0
482,0
533,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
584,0
609,0
630,0
660,0
d
Head tube length
92,0
110,0
116,0
133,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
-
-
-
-
g
Trail
88,0
88,0
88,0
88,0
h
Wheelbase
1102,0
1128,0
1149,0
1184,0
i
Chainstay length
441,0
441,0
441,0
441,0
j
Bottom bracket drop
74,0
74,0
74,0
74,0
k
Stack height
613,0
630,0
636,0
651,0
l
Reach
399,0
420,0
437,0
464,0
m
Standover height
689,0
759,0
759,0
784,0
x
Bottom bracket height
300,0
300,0
300,0
300,0
y
Front center
-
-
-
-
