Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
2,54 kg
Front travel
140mm
Rear travel
130mm

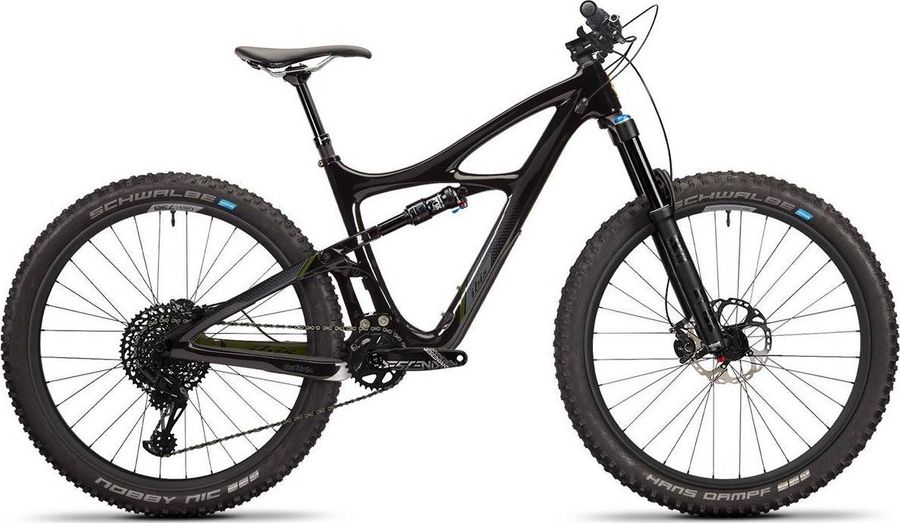

About the Ibis Mojo 3 GX 2020
The Ibis Mojo 3 GX 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 2,54 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Lizard Skins Charger Evo
|
|---|
|
Steam
|
Ibis 31.8mm (40, 50, 60, 70, 80, 90mm)
|
|---|---|
|
Saddle
|
WTB Silverado Pro 142mm width
|
|
Headset
|
ZS44 upper / ZS56 lower
|
|
Seatpost
|
Bike Yoke Revive Dropper (125, 160 or 185mm). Note there is a 250lb rider weight limit on this post.
|
|
Handlebar
|
Ibis 800mm Carbon (30mm rise)
|
|
Discs
|
Shimano SM-RT66 180
|
|
Brakes
|
Shimano Deore
|
|
Crankset
|
SRAM Descendant Alloy 175, DUB spindle, 32t Alloy Ring (170mm for S/M, 175mm for L/XL)
|
|---|---|
|
Shifter
|
SRAM GX Eagle
|
|
Bottom bracket
|
Threaded (68mm English threaded)
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Frame
|
Carbon Fiber Monocoque
|
|---|---|
|
Front suspension
|
Fox 34 Float Performance
|
|
Rear suspension
|
Fox Float DPS Performance EVOL
|
|
Rims
|
Ibis S35 Aluminum / 27.5" / Ibis Hubs
|
|---|---|
|
Tires
|
Schwalbe Hans Dampf (front) Nobby Nic (rear) 27.5 x 2.6 Addix Speedgrip Apex TL-Easy
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
368,0
|
425,0
|
470,0
|
514,0
|
|
b
Seat tube angle
|
74,4º
|
74,4º
|
74,4º
|
74,4º
|
|
c
Top tube length
|
583,0
|
598,0
|
619,0
|
640,0
|
|
d
Head tube length
|
85,0
|
105,0
|
117,0
|
132,0
|
|
e
Head tube angle
|
67,1º
|
67,1º
|
67,1º
|
67,1º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1128,0
|
1139,0
|
1160,0
|
1182,0
|
|
i
Chainstay length
|
427,0
|
427,0
|
427,0
|
427,0
|
|
j
Bottom bracket drop
|
18,0
|
18,0
|
18,0
|
18,0
|
|
k
Stack height
|
575,0
|
594,0
|
604,0
|
618,0
|
|
l
Reach
|
423,0
|
426,0
|
443,0
|
459,0
|
|
m
Standover height
|
678,0
|
714,0
|
726,0
|
756,0
|
|
x
Bottom bracket height
|
337,0
|
337,0
|
337,0
|
337,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
